CYLINDER

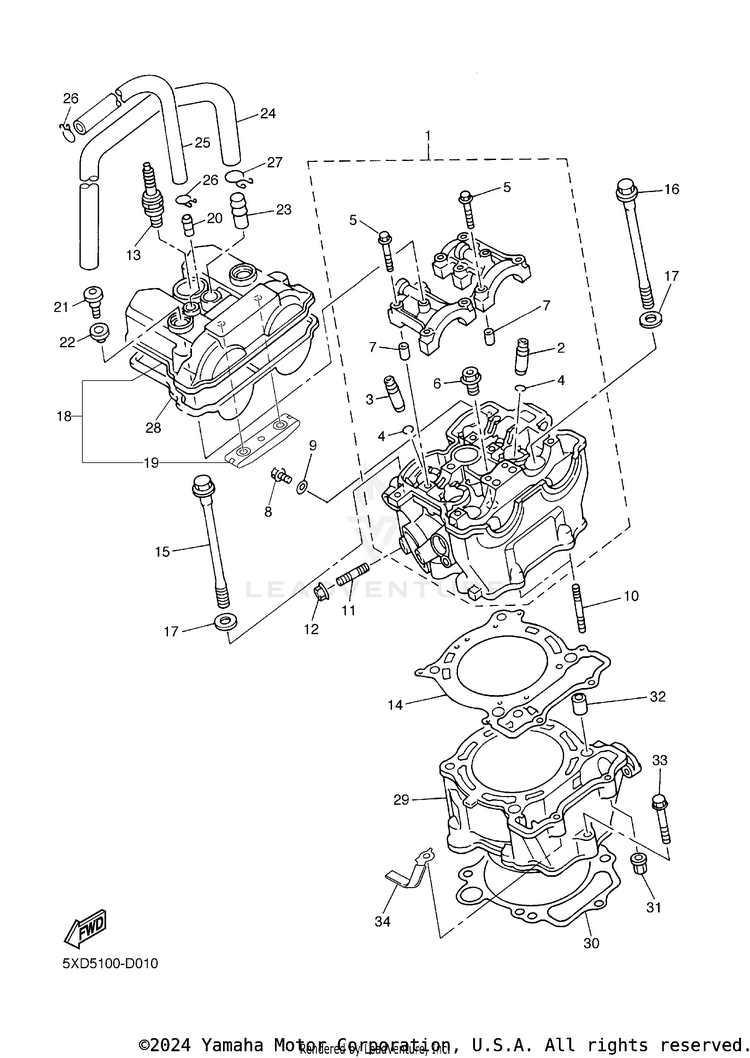

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
15XD-11102-00-00CYLINDER HEAD ASSY$874.13$709.85Not Shipping
25TA-11133-10-00GUIDE, VALVE 1$69.99$54.5910+ In-Stock
35TA-11134-10-00GUIDE, VALVE 2$59.99$46.7910+ In-Stock
493440-10153-00CIRCLIP$2.60$2.2410+ In-Stock
590105-06027-00BOLT, FLANGE$8.49$6.6210+ In-Stock
690340-12112-00PLUG, STRAIGHT SCREW$10.49$8.183 In-Stock
791808-16023-00PIN, DOWEL$7.99$6.2310+ In-Stock
895027-06010-00BOLT, FLANGE$3.55$3.0510+ In-Stock
990430-06014-00GASKET$8.99$7.0110+ In-Stock
1095617-06635-00BOLT, STUD$9.49$7.409 In-Stock
1195617-08620-00BOLT, STUD$8.49$6.6210+ In-Stock
1295707-08500-00NUT,FLANGE (JN5)$1.95$1.6810+ In-Stock
13CR9-E0000-00-00CR9E NGK SPLUG 4PK | AP$10.49$8.1810+ In-Stock
13CR8-E0000-00-00PLUG, SPARK (NGK CR8E) | STD$10.49$8.1810+ In-Stock
145TA-11181-00-00GASKET, CYLINDER HEAD 1$80.99$63.1710+ In-Stock
1590105-104A7-00BOLT, FLANGE$12.49$9.7410+ In-Stock
1690105-106A3-00BOLT, FLANGE$12.49$9.7410+ In-Stock
1790201-10025-00WASHER, PLATE$8.49$6.6210+ In-Stock
185TG-11190-10-00COVER, CYLINDER HEAD 1$138.99$108.41Usually ships in 7-10 business days
195BE-12241-01-00

(replaces part #
5BE-12241-00-00)

GUIDE, STOPPER 2$32.99$25.7310+ In-Stock
205BE-11167-00-00PIPE, BREATHER 2$3.75$3.38Not Shipping
2190109-066F0-00BOLT$9.49$7.4010+ In-Stock
225EA-1111G-00-00

(replaces part #
4KG-1111G-00-00)

RUBBER, MOUNT 1$28.99$22.6110+ In-Stock
23371-11167-01-00PIPE, BREATHER 2$14.49$11.301 In-Stock
245TA-11166-00-00PIPE, BREATHER 1$65.46$51.06Not Shipping
2590445-117F2-00

(replaces part #
90445-112K0-00)

HOSE$33.99$26.513 In-Stock
2690467-11106-00CLIP$4.05$3.4810+ In-Stock
2790467-14015-00CLIP$9.49$7.407 In-Stock
285TA-11193-00-00GASKET, HEAD COVER 1$66.99$52.2510+ In-Stock
295TA-11311-12-00

(replaces part #
5TA-11311-01-00)

CYLINDER 1$662.99$517.137 In-Stock
305TA-11351-00-00GASKET, CYLINDER$19.99$15.598 In-Stock
3190179-06500-00NUT$8.49$6.6210+ In-Stock
3293612-16254-00PIN, DOWEL$6.49$5.0610+ In-Stock
3395027-06035-00BOLT, FLANGE$2.40$2.0610+ In-Stock
345JG-11387-00-00CLAMP, HOSE 1$9.99$8.99Not Shipping
