2006 Yamaha BLASTER 200 Oil Pump OEM Parts Diagram

Submodel BLASTER - YFS200V - 2006

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

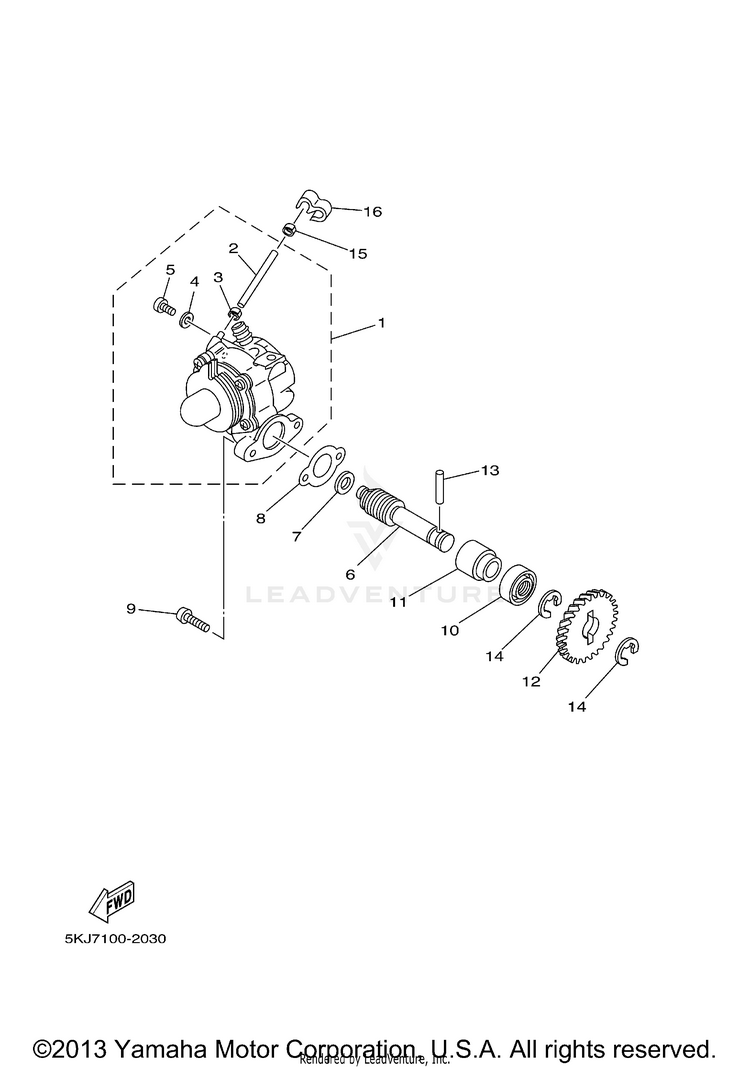

OIL PUMP

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
12XJ-13101-00-00

(replaces part #
2XJ-13100-00-00)

OIL PUMP ASSEMBLY$190.99$148.97Not Shipping
290445-054F8-00HOSE$5.99$4.67Not Shipping
390468-02033-00CLIP$9.49$7.4010+ In-Stock
490430-04004-00GASKET$10.49$8.608 In-Stock
598907-04008-00SCREW, BIND$0.50$0.45Usually ships in 7-10 business days
610V-13175-00-00SHAFT, WORM$34.99$28.69Not Shipping
790201-08624-00WASHER, PLATE$11.49$8.962 In-Stock
8126-13116-01-00GASKET, PUMP CASE$9.99$7.795 In-Stock
998507-05014-00SCREW, PAN HEAD$9.49$7.4010+ In-Stock
1093101-10090-00

(replaces part #
93101-10001-00)

OIL SEAL, S-TYPE$9.49$7.4010+ In-Stock
11137-13176-00-00METAL, WORM SHAFT OUTER$7.49$5.843 In-Stock
1210V-13178-01-00GEAR, PUMP DRIVE$35.99$29.51Usually ships in 7-10 business days
1393603-22028-00PIN, DOWEL$4.05$3.487 In-Stock
1493430-08007-00CIRCLIP, E-TYPE$9.49$7.4010+ In-Stock
1590468-02033-00CLIP$9.49$7.4010+ In-Stock
1690468-15020-00CLIP$8.49$7.64Usually ships in 7-10 business days
