2006 Yamaha FJR1300A Steering Handle Cable OEM Parts Diagram

Submodel FJR13ABS - FJR13ACV - 2006

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

STEERING HANDLE CABLE

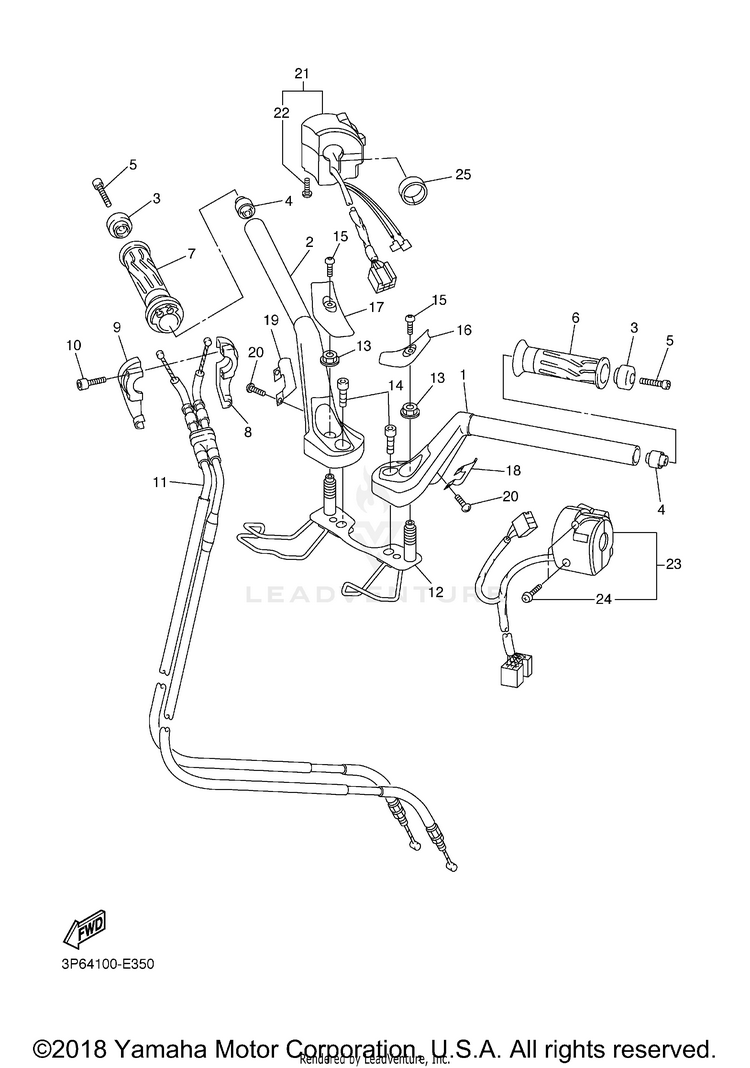

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
13P6-26121-00-00HANDLEBAR (LEFT)$203.99$161.45Usually ships in 7-10 business days
23P6-26122-00-00HANDLEBAR (RIGHT)$233.99$182.51Usually ships in 7-10 business days
34XV-26246-10-00

(replaces part #
4XV-26246-00-00)

END, GRIP$37.99$31.15Usually ships in 7-10 business days
44XV-23434-02-00

(replaces part #
4XV-23434-00-00)

HOLDER, DAMPER$19.99$15.594 In-Stock
590110-06240-00BOLT, HEXAGON SOCKET HEAD$11.49$9.423 In-Stock
65JW-26241-00-00GRIP$33.99$27.87Usually ships in 7-10 business days
75JW-26240-00-00GRIP ASSY$47.99$39.35Usually ships in 7-10 business days
83XW-26281-01-00CAP, GRIP UPPER$34.99$28.69Usually ships in 7-10 business days
93XW-26282-01-00CAP, GRIP LOWER$34.99$28.69Usually ships in 7-10 business days
1091317-05035-00BOLT, HEX. SOCKET HEAD$9.49$8.54Usually ships in 7-10 business days
113P6-26302-10-00

(replaces part #
3P6-26302-00-00)

THROTTLE CABLE ASSY$80.99$63.17Usually ships in 7-10 business days
123P6-26169-00-00ADJUSTER$144.99$113.09Usually ships in 7-10 business days
1395704-12500-00NUT, FLANGE$2.40$2.16Usually ships in 7-10 business days
1491314-08030-00BOLT, HEXAGON SOCKET HEAD$2.55$2.199 In-Stock
1590111-04006-00BOLT, HEX. SOCKET BUTTON$3.50$3.154 In-Stock
163P6-26143-01-00

(replaces part #
3P6-26143-00-00)

COVER,HAND,UPPER 1$19.49$15.98Usually ships in 7-10 business days
173P6-26145-01-00

(replaces part #
3P6-26145-00-00)

COVER, HAND UPPER 2$18.49$15.16Usually ships in 7-10 business days
183P6-26144-00-00COVER, HANDLEBAR LOWER 1$8.49$7.64Usually ships in 7-10 business days
193P6-26146-00-00COVER, HANDLEBAR LOWER 2$5.49$4.94Usually ships in 7-10 business days
2098517-05010-00

(replaces part #
98507-05010-00)

SCREW, PAN HEAD$4.60$3.9610+ In-Stock
213P6-83963-00-00SWITCH, HANDLE 3 (RIGHT)$195.99$152.87Usually ships in 7-10 business days
2298507-05045-00SCREW, PAN HEAD$10.49$8.183 In-Stock
233P6-83972-00-00SWITCH, HANDLE 4$255.99$199.67Usually ships in 7-10 business days
2498507-05025-00SCREW, PAN HEAD$9.49$7.4010+ In-Stock
2590387-22660-00COLLAR$10.49$8.183 In-Stock
