2006 Yamaha RAPTOR 700 Front Wheel OEM Parts Diagram

Submodel RAPTOR 700 - YFM700RV - 2006

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

FRONT WHEEL

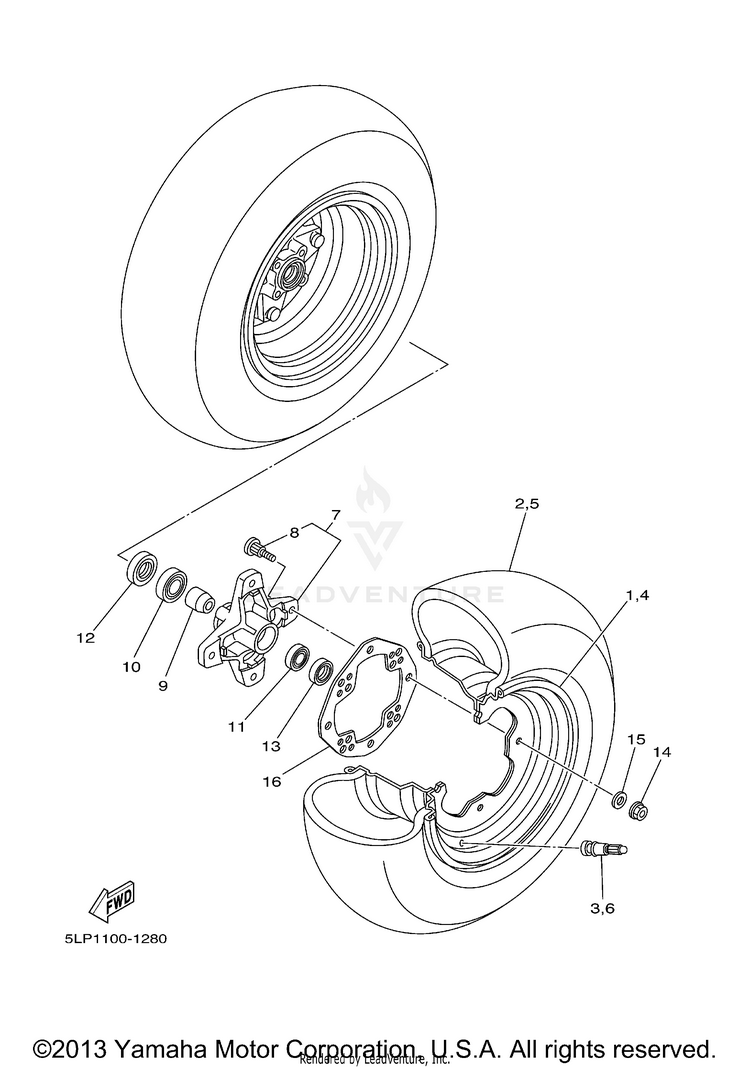

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
15LP-25180-11-YX

(replaces part #
5LP-25180-10-00)

WHEEL COMP.$288.99$225.41Not Shipping
294107-10015-00TIRE (AT21X7R10 KT341 T/L N) | DUNLOP$166.99$148.94Usually ships in 7-10 business days
393900-00030-00VALVE, RIM (TR412) | TAIHEIYO$18.49$14.425 In-Stock
45LP-25180-11-YX

(replaces part #
5LP-25180-10-00)

WHEEL COMP.$288.99$225.41Not Shipping
594107-10015-00TIRE (AT21X7R10 KT341 T/L N) | DUNLOP$166.99$148.94Usually ships in 7-10 business days
693900-00030-00VALVE, RIM (TR412) | TAIHEIYO$18.49$14.425 In-Stock
71PE-F5111-00-00

(replaces part #
1S3-25111-00-00)

HUB, FRONT$153.99$120.11Usually ships in 7-10 business days
890114-10006-00BOLT, SERRATION$6.49$5.0610+ In-Stock
95LP-25117-00-00SPACER, BEARING$18.99$14.817 In-Stock
1093306-00446-00BEARING$47.99$37.4310+ In-Stock
1193306-20231-00BEARING$25.99$20.2710+ In-Stock
1293105-26026-00OIL SEAL$13.49$10.5210+ In-Stock
1393102-22216-00OIL SEAL$12.49$9.7410+ In-Stock
1495704-10500-00

(replaces part #
95702-10500-00)

NUT, WITH WASHER-$2.285 In-Stock
1592990-10200-00

(replaces part #
92902-10200-00)

WASHER, PLAIN$3.80$3.2710+ In-Stock
161S3-25127-01-00

(replaces part #
1S3-25127-00-00)

COVER, PLATE$8.49$6.628 In-Stock
