2006 Yamaha TTR250 Cylinder OEM Parts Diagram

Submodel TT-R250 CA - TTR250VC - 2006

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

CYLINDER

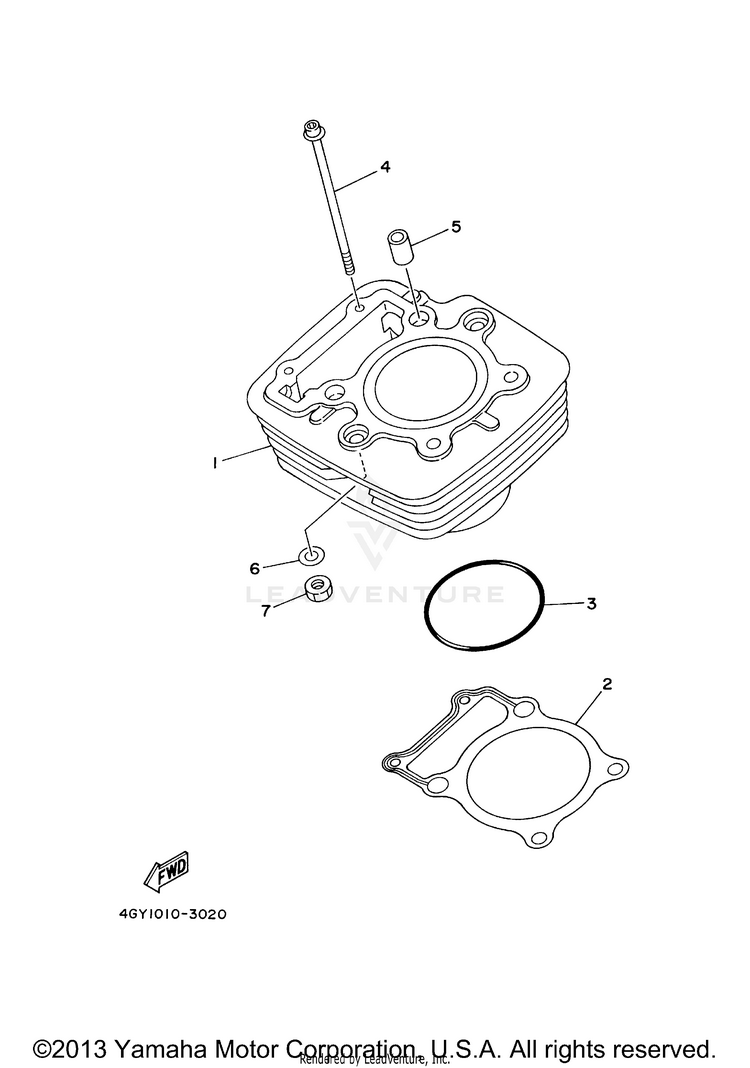

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
14GY-11310-01-00CYLINDER$501.99$407.66Usually ships in 7-10 business days
24GY-11351-00-00GASKET, CYLINDER$17.99$14.034 In-Stock
393210-78544-00O-RING$13.49$10.5210+ In-Stock
490105-06406-00BOLT, FLANGE$12.49$10.244 In-Stock
599530-14016-00PIN, DOWEL A$3.80$3.2710+ In-Stock
690201-094G1-00

(replaces part #
90201-08366-00)

WASHER, PLATE$10.49$8.185 In-Stock
795337-08600-00NUT(6TA)$9.49$7.4010+ In-Stock
