CRANKCASE

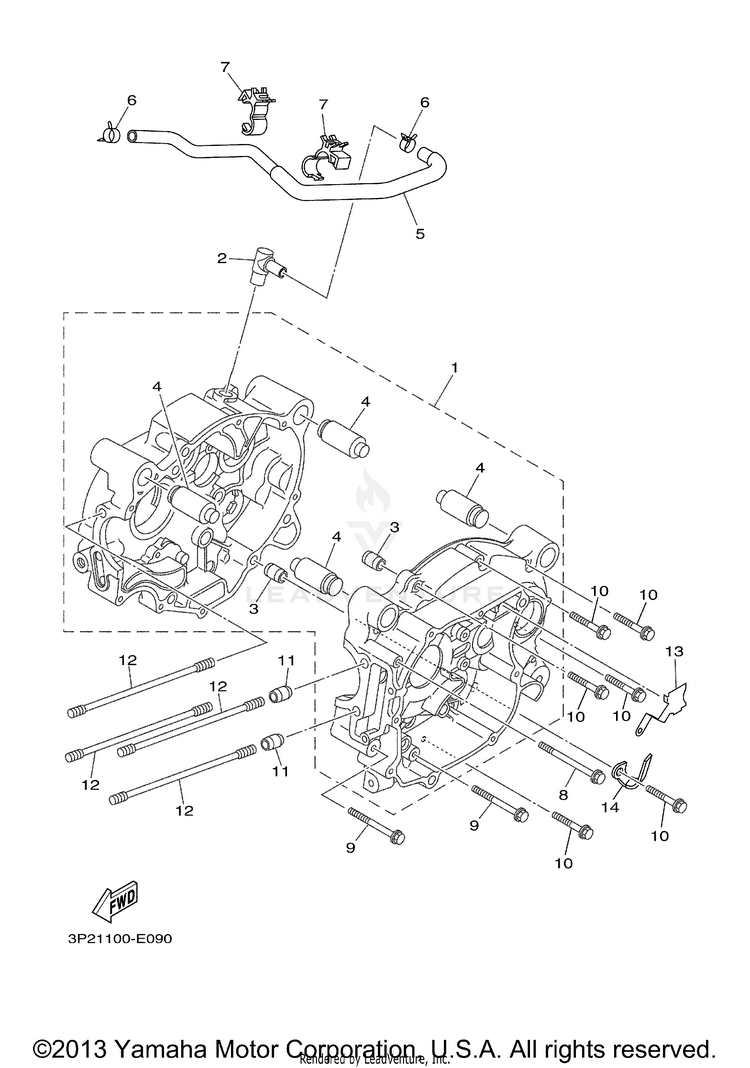

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
15HN-15100-11-00CRANKCASE ASSY$546.71$426.43Usually ships in 7-10 business days
24GL-15371-01-00BREATHER$90.99$70.97Usually ships in 7-10 business days
399530-10114-00PIN, DOWEL$2.65$2.4810+ In-Stock
44S9-E5316-00-00

(replaces part #
4GL-15316-00-00)

DAMPER, ENGINE MOUNT$23.99$19.67Usually ships in 7-10 business days
53P2-11166-00-00PIPE, BREATHER 1$28.99$23.77Usually ships in 7-10 business days
690467-13133-00

(replaces part #
90467-13064-00)

CLIP$9.49$7.4010+ In-Stock
790464-15192-00CLAMP$9.49$7.404 In-Stock
890105-064A6-00BOLT, FLANGE$10.49$8.182 In-Stock
995027-06060-00BOLT, FLANGE$3.10$2.677 In-Stock
1095027-06040-00BOLT, FLANGE$3.55$3.0510+ In-Stock
1199530-10114-00PIN, DOWEL$2.65$2.4810+ In-Stock
1290116-08573-00BOLT, STUD$9.49$8.54Usually ships in 7-10 business days
135HN-15191-00-00PLATE$7.49$6.74Usually ships in 7-10 business days
1490465-06376-00CLAMP$10.49$8.184 In-Stock
