2006 Yamaha V-Max Front Wheel OEM Parts Diagram

Submodel V-MAX - VMX12VC - 2006

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

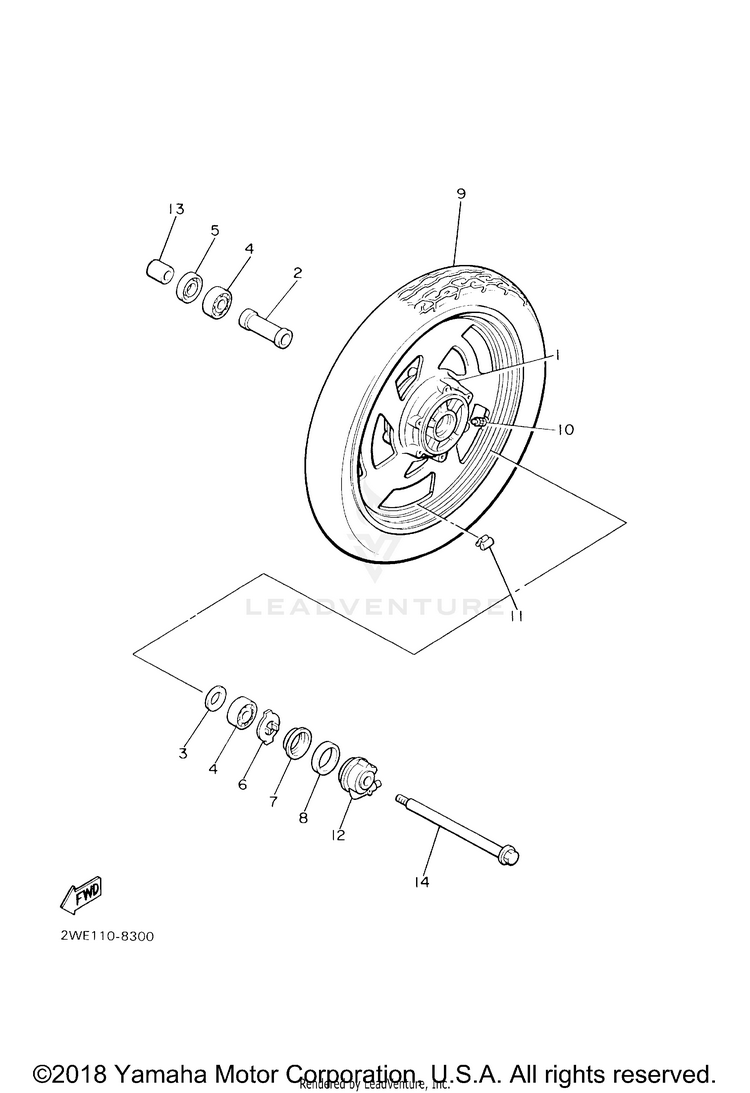

FRONT WHEEL

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
15GK-25168-00-33CAST WHEEL, FRONT | YB$1,384.13$1,134.89Usually ships in 7-10 business days
290560-17322-00SPACER$12.49$10.24Usually ships in 7-10 business days
3146-25315-00-00

(replaces part #
148-25315-00-00)

FLANGE, SPACER$8.49$6.621 In-Stock
493306-30317-00BEARING$43.99$34.3110+ In-Stock
593102-28022-00OIL SEAL$16.49$12.8610+ In-Stock
6341-25149-00-00CLUTCH, METER$8.49$7.642 In-Stock
7341-25846-00-00RETAINER, CLUTCH$9.49$8.542 In-Stock
893105-45017-00OIL SEAL$16.49$12.862 In-Stock
994111-1805F-00TIRE (110/90-18 M/C 61V G525) | UR BRIDGESTONE$224.99$186.28Usually ships in 7-10 business days
994111-1805D-00TIRE (110/90-18 M/C 61V F20) | UR DUNLOP$155.99$129.27Usually ships in 7-10 business days
1093900-00025-00VALVE, RIM (PVR59A) | TAIHEIYO$21.99$18.03Usually ships in 7-10 business days
115MT-25398-20-00BALANCER, WHEEL (30G) | UN$46.99$38.53Usually ships in 7-10 business days
115MT-25398-00-00BALANCER, WHEEL (10G) | UN$18.99$15.574 In-Stock
115MT-25398-10-00BALANCER, WHEEL (20G) | UN$18.99$15.57Usually ships in 7-10 business days
121FK-25190-02-00GEAR UNIT ASSY$106.99$83.45Usually ships in 7-10 business days
1390387-173R6-00COLLAR$33.99$27.87Usually ships in 7-10 business days
141FK-25181-09-00

(replaces part #
1FK-25181-00-00)

AXLE, WHEEL$286.97$242.43Usually ships in 7-10 business days
