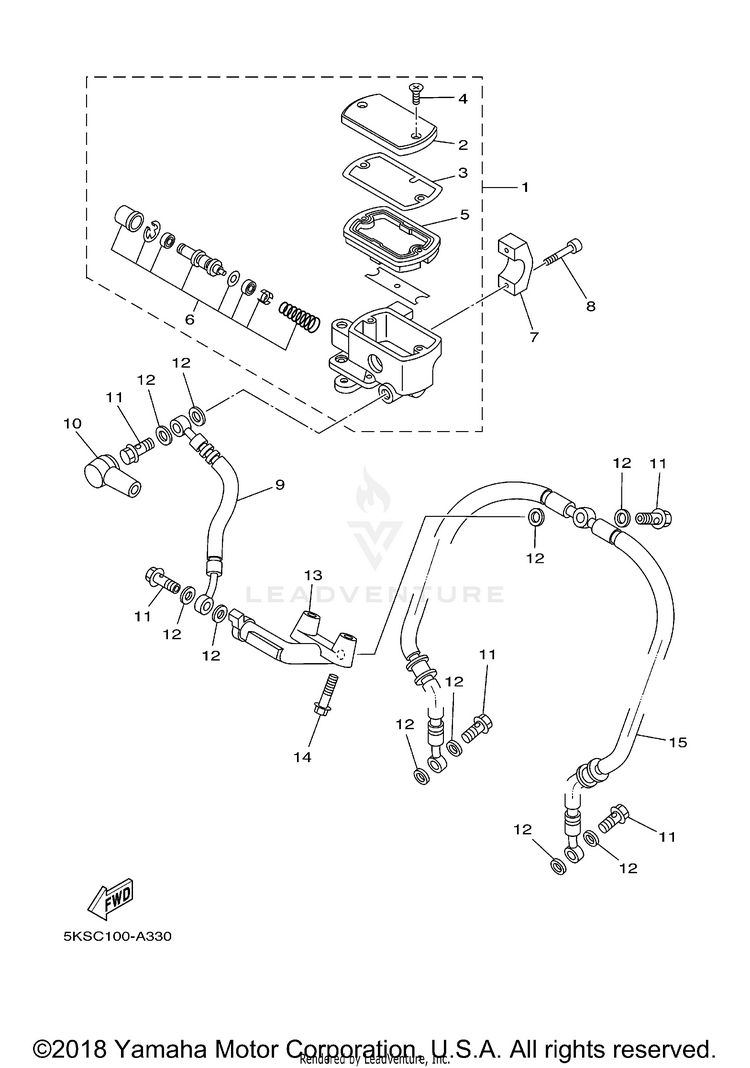

FRONT MASTER CYLINDER

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
13D8-25870-11-00

(replaces part #
4TR-25870-01-00)

MASTER CYLINDER SUB ASSY$334.99$261.29Usually ships in 7-10 business days
24TR-25852-01-00CAP, RESERVOIR$70.99$55.37Usually ships in 7-10 business days
34BH-25815-00-00SEAL, PISTON$37.99$31.15Usually ships in 7-10 business days
44TR-2589H-00-00SCREW$7.49$5.844 In-Stock
54BH-25854-02-00DIAPHRAGM, RESERVOIR$45.99$37.71Usually ships in 7-10 business days
62KR-25807-00-00

(replaces part #
2KR-W0041-00-00)

CYLINDER KIT, MASTER$89.99$70.19Usually ships in 7-10 business days
74TR-25867-00-00HOLDER$18.99$15.57Usually ships in 7-10 business days
891314-06025-00BOLT, HEXAGON SOCKET HEAD$9.49$7.407 In-Stock
95KS-25872-01-00

(replaces part #
5KS-25872-00-00)

HOSE, BRAKE 1$89.99$70.19Usually ships in 7-10 business days
104L0-25862-02-00

(replaces part #
4L0-25862-01-00)

BOOT, MASTER CYLINDER-$4.983 In-Stock
1190401-10159-00BOLT, UNION$12.49$9.7410+ In-Stock
1290201-10118-00WASHER, PLATE$3.80$3.2710+ In-Stock
135KS-25885-00-00JOINT$78.99$61.61Usually ships in 7-10 business days
1495817-06030-00

(replaces part #
95807-06030-00)

BOLT,FLANGE$4.65$4.0010+ In-Stock
155KS-25873-00-00HOSE, BRAKE 2$177.99$138.83Usually ships in 7-10 business days
