2006 Yamaha Warrior XV1700 Valve OEM Parts Diagram

Submodel ROAD STAR WARRIOR CA - XV17PCVC - 2006

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

VALVE

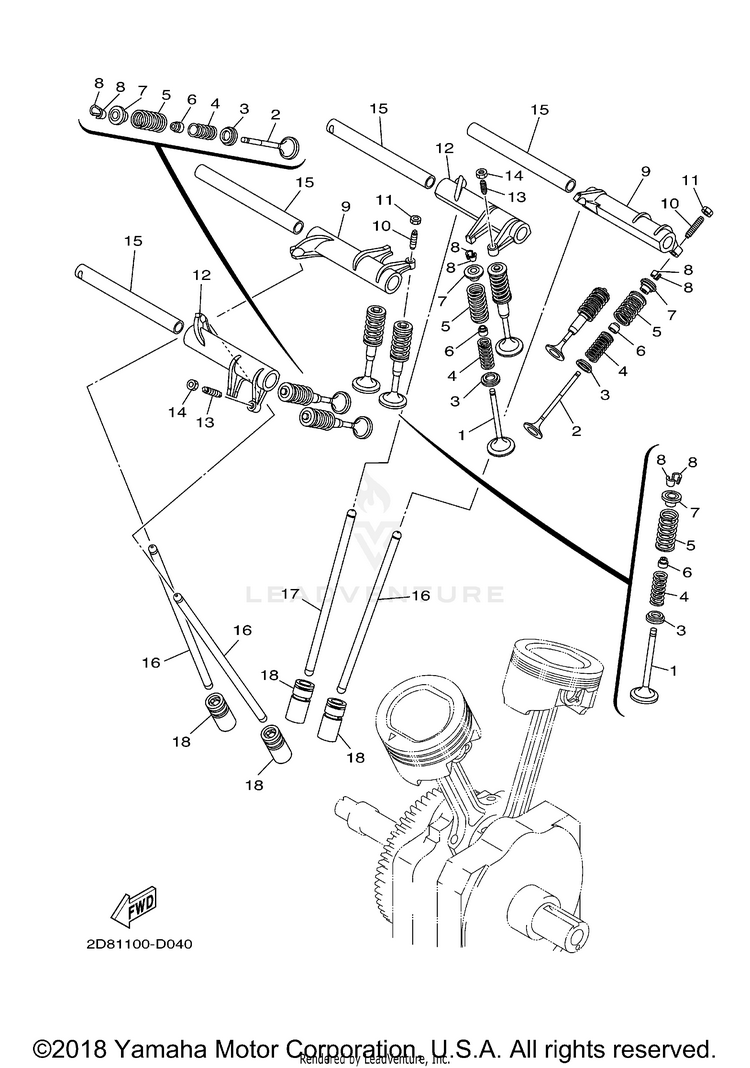

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
15YU-12111-00-00VALVE, INTAKE$26.99$22.13Usually ships in 7-10 business days
25YU-12121-00-00VALVE, EXHAUST$76.99$60.05Usually ships in 7-10 business days
326H-12116-00-00SEAT, VALVE SPRING$6.99$6.92Usually ships in 7-10 business days
44WM-12113-00-00SPRING, VALVE INNER$8.49$7.64Usually ships in 7-10 business days
54WM-12114-00-00SPRING, VALVE OUTER$10.99$9.01Usually ships in 7-10 business days
64KM-12119-00-00SEAL, VALVE STEM$16.49$12.868 In-Stock
726H-12117-00-00RETAINER, VALVE SPRING$8.49$7.64Usually ships in 7-10 business days
84G0-12118-00-00LOCK, VALVE SPRING RETAINER$8.49$6.6210+ In-Stock
95PX-12151-00-00ARM, VALVE ROCKER$190.99$150.81Usually ships in 7-10 business days
1031G-12159-02-00SCREW, VALVE ADJUSTING$10.99$8.574 In-Stock
1131G-12158-00-00NUT, LOCK$7.49$5.845 In-Stock
125PX-12161-00-00ARM, VALVE ROCKER 2$235.99$187.20Usually ships in 7-10 business days
1331G-12159-02-00SCREW, VALVE ADJUSTING$10.99$8.574 In-Stock
1431G-12158-00-00NUT, LOCK$7.49$5.845 In-Stock
151D7-12146-00-00

(replaces part #
5PX-12146-00-00)

SHAFT, ROCKER$35.99$29.51Usually ships in 7-10 business days
165PX-12154-00-00ROD, VALVE PUSH$38.99$31.97Usually ships in 7-10 business days
175PX-12144-00-00ROD, VALVE PUSH 2$55.99$43.67Usually ships in 7-10 business days
184WM-12153-10-00LIFTER, VALVE$84.99$66.29Usually ships in 7-10 business days
