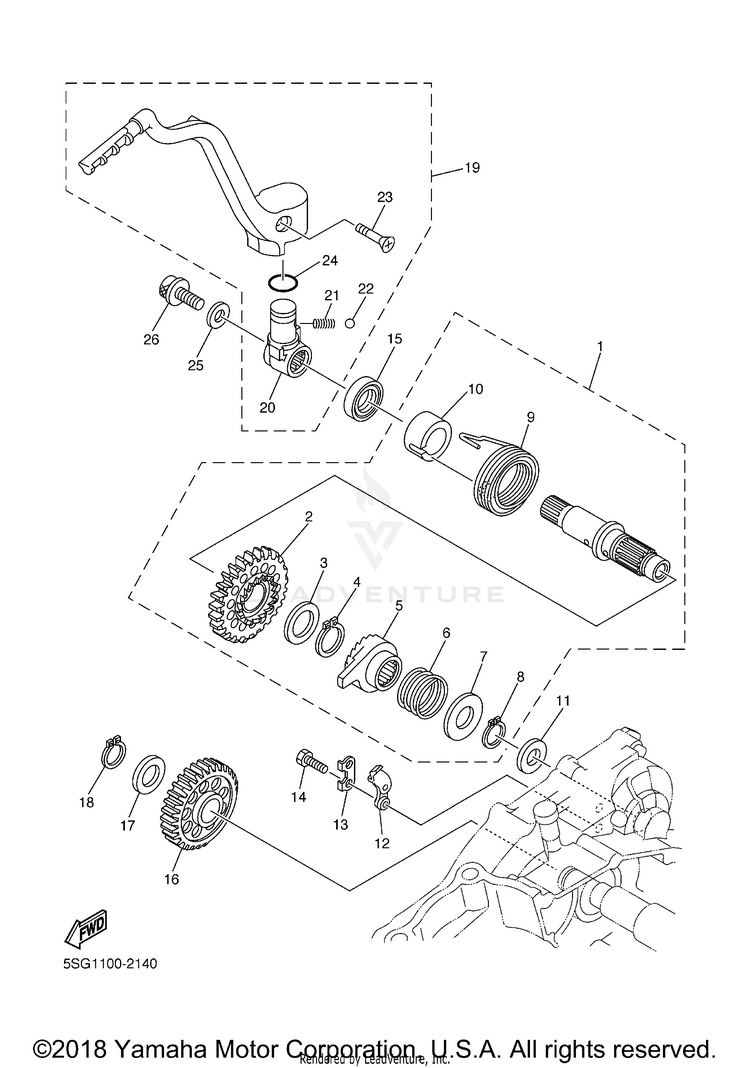

2006 Yamaha WR250F Starter OEM Parts Diagram

Tag	Part #	Description	MSRP	Our Price	Stock Status
1	5NL-15601-10-00	KICK SHAFT ASSY	$254.99	$198.89	Usually ships in 7-10 business days
2	5NL-15641-10-00	GEAR, KICK	$120.99	$94.37	Usually ships in 7-10 business days
3	90201-20685-00	WASHER, PLATE (T=0.5)	$8.49	$6.62	1 In-Stock
4	93410-20038-00	CIRCLIP, S-TYPE	$4.05	$3.48	10+ In-Stock
5	4GY-15671-00-00	WHEEL, RATCHET	$97.99	$76.43	2 In-Stock
6	90501-16016-00	SPRING, COMPRESSION	$6.49	$5.06	2 In-Stock
7	90201-167P7-00	WASHER, PLATE	$10.49	$8.60	Usually ships in 7-10 business days
8	99009-16400-00	CIRCLIP	$6.49	$5.06	4 In-Stock
9	90508-30743-00	SPRING, TORSION	$20.99	$16.37	1 In-Stock
10	5NL-15664-00-00	GUIDE, SPRING	$14.49	$11.30	1 In-Stock
11	90201-162H4-00	WASHER, PLATE	$10.49	$8.18	8 In-Stock
12	5SG-15668-00-00	STOPPER	$93.99	$73.31	4 In-Stock
13	214-15686-00-00	WASHER, LOCK	$8.49	$6.62	7 In-Stock
14	97017-06016-00 (replaces part # 90101-06001-00)	BOLT	$9.49	$7.40	5 In-Stock
15	93102-18278-00	OIL SEAL \| INCL. IN BOTTOM END GASKET KIT	$13.49	$10.52	10+ In-Stock
16	5NL-15651-00-00	GEAR, KICK IDLE	$81.99	$63.95	Usually ships in 7-10 business days
17	90201-177G4-00	WASHER, PLATE	$10.49	$8.18	3 In-Stock
18	99009-17400-00	CIRCLIP	$5.49	$4.28	10+ In-Stock
19	5NL-15620-10-00	KICK CRANK ASSY	$259.99	$202.79	3 In-Stock
20	5NX-15621-10-00	BOSS, KICK CRANK	$86.99	$67.85	Usually ships in 7-10 business days
21	90501-147A5-00	SPRING, COMPRESSION	$9.49	$7.40	10+ In-Stock
22	93507-32031-00 (replaces part # 93507-32009-00)	BALL	$5.49	$4.28	10+ In-Stock
23	90152-06010-00	SCREW, COUNTERSUNK	$10.49	$8.18	10+ In-Stock
24	93210-17570-00	O-RING	$8.49	$6.62	7 In-Stock
25	90201-08048-00	WASHER, PLATE	$6.49	$5.06	10+ In-Stock
26	90110-08052-00 (replaces part # 90110-08051-00)	BOLT, HEXAGON SOCKET HEAD	$9.49	$7.40	10+ In-Stock
