2006 Yamaha YZ125 Steering Handle Cable OEM Parts Diagram

Submodel YZ125 - YZ125V - 2006

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

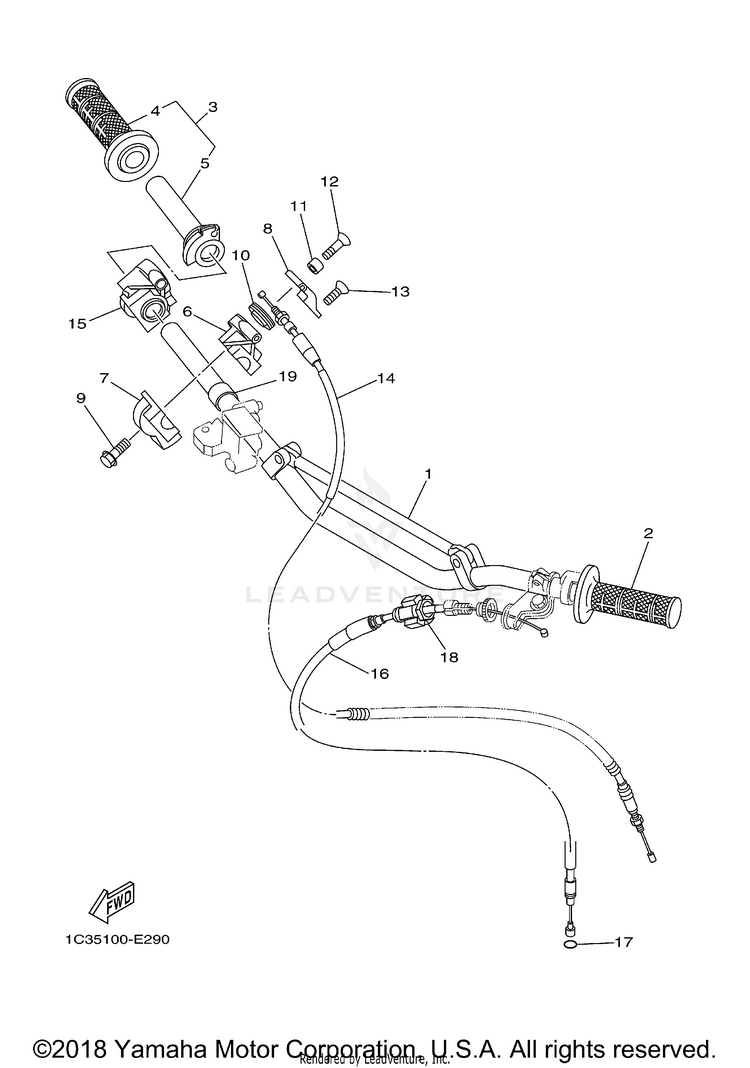

STEERING HANDLE CABLE

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
11C3-26111-00-00HANDLEBAR$206.99$161.45Usually ships in 7-10 business days
24GY-26241-00-00GRIP$32.99$25.7310+ In-Stock
34XM-26240-00-00GRIP ASSY$70.99$55.376 In-Stock
44GY-26242-00-00GRIP (RIGHT)$32.99$25.7310+ In-Stock
54XM-26243-00-00TUBE, THROTTLE GUIDE$33.99$26.5110+ In-Stock
61C3-26281-90-00

(replaces part #
4SS-26281-00-00)

CAP, GRIP UPPER$83.99$65.5110+ In-Stock
71C3-26282-90-00

(replaces part #
4SS-26282-10-00)

CAP, GRIP UNDER$55.99$43.6710+ In-Stock
81C3-2628H-90-00

(replaces part #
4SS-2628H-00-00)

CAP, WIRE$17.99$14.0310+ In-Stock
995027-06025-00BOLT, FLANGE$4.16$3.5810+ In-Stock
101C3-26273-90-00

(replaces part #
5NY-26273-00-00)

ROTOR$12.99$10.1310+ In-Stock
1190387-04003-00

(replaces part #
4SS-26259-00-00)

COLLAR$9.49$7.4010+ In-Stock
1298707-04016-00

(replaces part #
4SS-26256-00-00)

SCREW, FLAT HEAD$9.49$7.404 In-Stock
1398707-04010-00

(replaces part #
4SS-2632G-00-00)

SCREW, FLAT HEAD$9.49$7.405 In-Stock
141C3-26311-50-00CABLE, THROTTLE 1$39.99$31.196 In-Stock
AFTERMARKET ALTERNATIVE
$12.99$9.9910+ In-Stock
154SS-26287-01-00COVER, CAP GRIP$22.99$17.9310+ In-Stock
161C3-26335-50-00CABLE, CLUTCH$39.99$31.19Not Shipping
1793210-06632-00

(replaces part #
93210-06001-00)

O-RING$9.49$7.4010+ In-Stock
181C3-26342-50-00BOOT, CABLE$14.49$11.307 In-Stock
1990387-227H7-00COLLAR$9.49$7.4010+ In-Stock
