2006 Yamaha YZF-R6 Shift Cam Fork OEM Parts Diagram

Submodel R6 - YZFR6VC - 2006

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

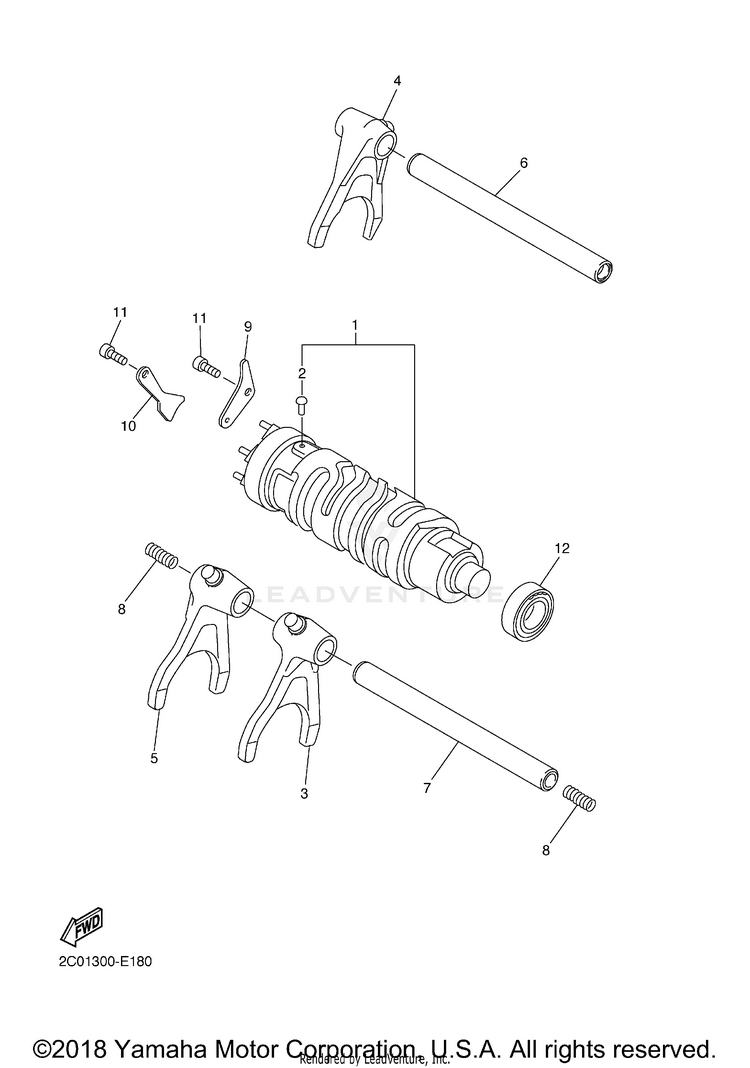

SHIFT CAM FORK

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
12C0-18540-01-00

(replaces part #
2C0-18540-00-00)

SHIFT CAM ASSY$181.99$143.92Usually ships in 7-10 business days
2136-18542-00-00POINT, NEUTRAL$7.49$6.74Usually ships in 7-10 business days
32C0-18511-00-00FORK, SHIFT 1$103.99$81.11Usually ships in 7-10 business days
42C0-18512-00-00FORK, SHIFT 2$147.99$115.43Usually ships in 7-10 business days
52C0-18513-00-00FORK, SHIFT 3$104.99$81.89Usually ships in 7-10 business days
62C0-18531-00-00BAR, SHIFT FORK GUIDE 1$51.99$40.55Usually ships in 7-10 business days
72C0-18535-00-00BAR, SHIFT FORK GUIDE 2$46.99$38.53Usually ships in 7-10 business days
890501-080A2-00SPRING, COMPRESSION$8.49$7.64Usually ships in 7-10 business days
92C0-18536-00-00STOPPER, SHIFT BAR$3.75$3.38Usually ships in 7-10 business days
102C0-18562-00-00PLATE, STOPPER 2$4.35$3.92Usually ships in 7-10 business days
1191317-06012-00

(replaces part #
90110-06182-00)

BOLT, HEXAGON SOCKET HEAD$9.49$7.4010+ In-Stock
1293306-00105-00

(replaces part #
93306-00106-00)

BEARING$33.99$26.5110+ In-Stock
