2007 Yamaha BIG BEAR 250 Steering Handle Cable OEM Parts Diagram

Submodel BIG BEAR 250 - YFM25BW - 2007

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

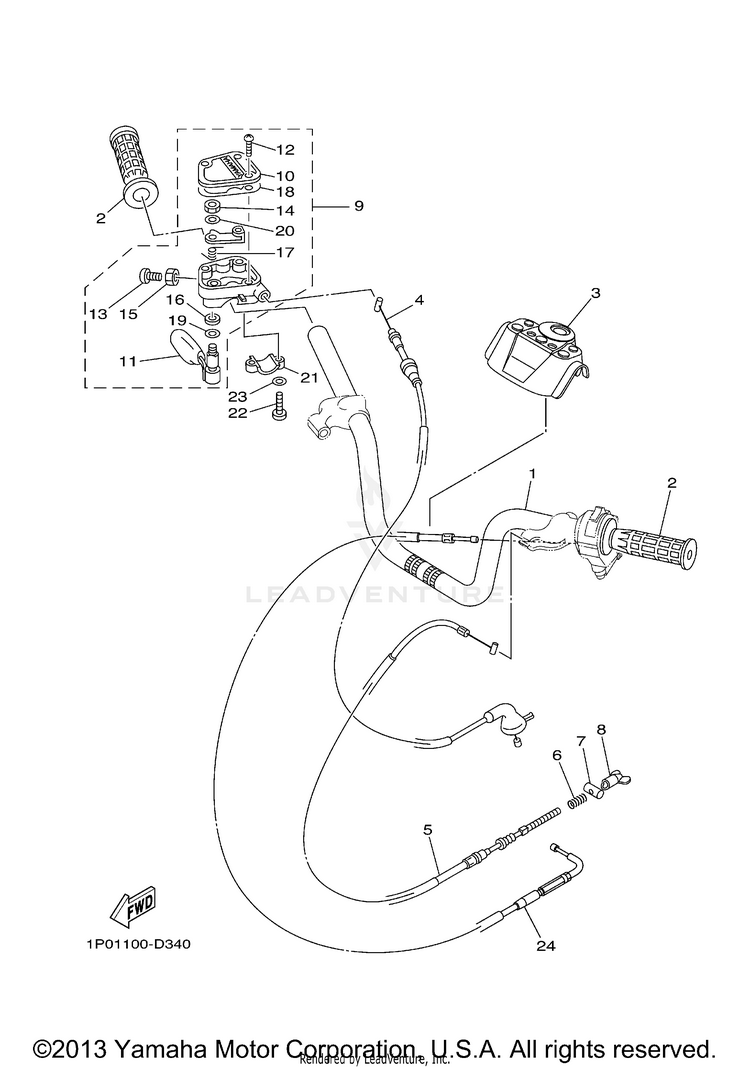

STEERING HANDLE CABLE

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
15FU-F6111-12-00

(replaces part #
5FU-F6111-10-00)

HANDLEBAR$74.99$58.49Usually ships in 7-10 business days
25FU-F6241-10-00GRIP$18.99$14.8110+ In-Stock
31P0-F6124-00-00PROTECTOR, HANDLEBAR$38.99$31.97Usually ships in 7-10 business days
41P0-26311-00-00CABLE, THROTTLE 1$34.99$28.69Usually ships in 7-10 business days
51P0-26341-00-00CABLE, BRAKE$47.99$39.35Usually ships in 7-10 business days
690501-10782-00SPRING, COMPRESSION$9.49$7.4010+ In-Stock
790249-12008-00PIN, SPECIAL SHAPE$9.49$7.4010+ In-Stock
820E-26343-00-00NUT, ADJUSTING$30.99$24.1710+ In-Stock
94KB-26250-12-00

(replaces part #
4KB-26250-10-00)

THROTTLE LEVER ASSY-$260.603 In-Stock
104KB-2628F-10-00CAP, GEAR$33.99$26.511 In-Stock
111NV-2625G-02-00

(replaces part #
1NV-2625G-01-00)

LEVER, THROTTLE$65.99$51.474 In-Stock
1290149-04278-00SCREW$0.95$0.8210+ In-Stock
1398517-05020-00

(replaces part #
98507-05020-00)

SCREW, PAN HEAD$1.75$1.503 In-Stock
1495617-05100-00

(replaces part #
95607-05100-00)

NUT, U$10.49$8.1810+ In-Stock
1595317-05700-00

(replaces part #
95307-05700-00)

NUT$9.49$7.402 In-Stock
1693104-09025-00OIL SEAL$8.49$6.623 In-Stock
171NV-26304-00-00SPRING$12.99$10.133 In-Stock
184KB-2628G-00-00GASKET$14.49$11.301 In-Stock
191NV-26129-00-00WASHER$7.49$5.842 In-Stock
2053L-83909-00-00

(replaces part #
1NV-26398-00-00)

WASHER, SPECIAL$4.55$3.91Not Shipping
214V4-82913-00-00HOLDER, LEVER LOWER 1$31.99$24.95
2298517-05020-00

(replaces part #
98507-05020-00)

SCREW, PAN HEAD$1.75$1.503 In-Stock
2392907-05600-00WASHER, PLATE$1.00$0.8610+ In-Stock
241P0-F6331-00-00CABLE, STARTER 1$23.99$19.67Not Shipping
