2007 Yamaha Roadliner Midnight XV1900M Steering OEM Parts Diagram

Submodel ROADLINER MIDNIGHT CA - XV19MWC - 2007

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

STEERING

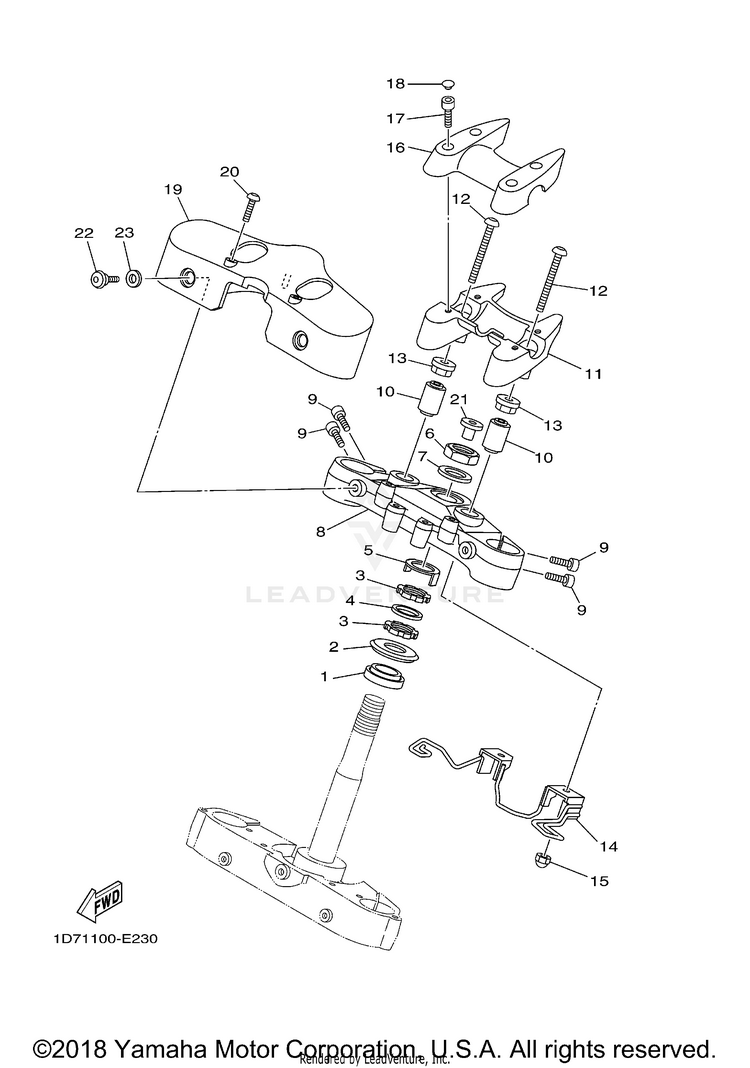

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
193332-00091-00BEARING$79.99$62.39Usually ships in 7-10 business days
24XV-23415-01-00COVER, BALL RACE 1$26.99$22.13Usually ships in 7-10 business days
390179-30691-00NUT$36.99$30.33Usually ships in 7-10 business days
490202-30235-00WASHER, PLATE$9.49$8.541 In-Stock
54XV-23418-00-00WASHER, SPECIAL$18.99$15.57Usually ships in 7-10 business days
690170-28419-00NUT$44.99$36.892 In-Stock
790201-281U8-00WASHER, PLATE$12.49$9.742 In-Stock
81D7-23435-00-00CROWN, HANDLE$161.99$128.47Usually ships in 7-10 business days
991317-06025-00

(replaces part #
90110-06178-00)

BOLT, HEXAGON SOCKET HEAD$2.65$2.2810+ In-Stock
105A8-23434-01-00

(replaces part #
3VD-23434-00-00)

HOLDER, DAMPER$42.99$35.25Usually ships in 7-10 business days
111D7-23442-20-00HOLDER, HANDLE LOWER$168.99$133.44Usually ships in 7-10 business days
1290111-10023-00

(replaces part #
90111-10024-00)

BOLT,HEX. SOCKET BUT$12.49$10.24Usually ships in 7-10 business days
131D7-2344E-00-00HOLDER , HANDLE LOWER 1$50.99$39.77Usually ships in 7-10 business days
141D7-23389-01-00

(replaces part #
1D7-23389-00-00)

GUIDE, CABLE$69.99$54.59Usually ships in 7-10 business days
1590176-10003-00NUT, CROWN$10.49$8.184 In-Stock
161D7-23441-21-00

(replaces part #
1D7-23441-20-00)

HOLDER, HANDLE UPPER$157.99$124.84Usually ships in 7-10 business days
1791314-08030-00BOLT, HEXAGON SOCKET HEAD$2.55$2.199 In-Stock
1890338-08163-00PLUG (CROME)$3.75$3.2210+ In-Stock
191D7-23437-10-00COVER, CROWN$450.99$374.69Usually ships in 7-10 business days
2092012-08030-00

(replaces part #
90111-08025-00)

BOLT, BUTTON HEAD$6.49$5.064 In-Stock
2190480-14009-00GROMMET$3.70$3.33Usually ships in 7-10 business days
221D7-23471-10-00

(replaces part #
1D7-23471-00-00)

BOLT$13.49$11.06Usually ships in 7-10 business days
231D7-23418-00-00WASHER, SPECIAL$3.65$3.28Usually ships in 7-10 business days
