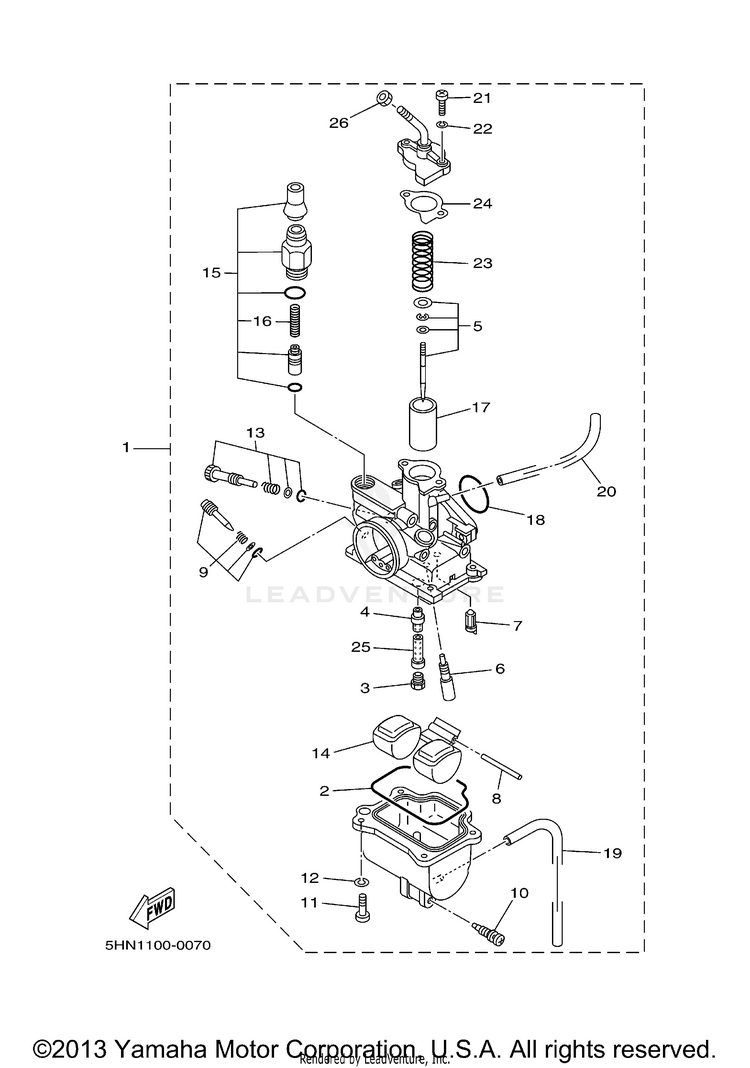

2007 Yamaha TTR90E Carburetor OEM Parts Diagram

Tag	Part #	Description	MSRP	Our Price	Stock Status
1	5HN-14101-10-00	CARBURETOR ASSY 1	$601.99	$469.55	Usually ships in 7-10 business days
2	4GL-14239-00-00	SEAL	$19.99	$15.59	9 In-Stock
3	18A-14143-18-00	JET, MAIN (#90)	$9.49	$7.40	5 In-Stock
4	5HN-14141-13-00	NOZZLE, MAIN	$37.99	$29.63	4 In-Stock
5	5HN-1490J-10-00	NEEDLE SET	$15.49	$13.65	Not Shipping
6	3KD-14142-12-00	JET, PILOT (#12.5)	$25.99	$20.27	9 In-Stock
7	7LG-14150-11-00	NEEDLE ASSY	$34.99	$27.29	4 In-Stock
8	353-14186-00-00	PIN, FLOAT	$8.49	$6.62	6 In-Stock
9	5HN-14104-00-00	AIR SCREW SET	$19.99	$15.59	2 In-Stock
10	12R-14191-00-00	PLUG, DRAIN	$17.99	$14.03	10+ In-Stock
11	98507-04014-00	SCREW, PAN HEAD	$2.00	$1.72	10+ In-Stock
12	92907-04100-00	WASHER, SPRING	$9.49	$7.40	6 In-Stock
13	4GL-14103-00-00	THROTTLE SCREW SET	$36.99	$28.85	3 In-Stock
14	5HN-14985-00-00	FLOAT	$70.99	$55.37	1 In-Stock
15	5HN-1410A-00-00	STARTER SET	$65.99	$51.47	4 In-Stock
16	5HN-14135-00-00	COIL, SPRING	$5.49	$4.28	3 In-Stock
17	5HN-14112-25-00	VALVE, THROTTLE 1	$91.99	$71.75	Usually ships in 7-10 business days
18	241-14147-00-00	O-RING	$9.49	$7.40	6 In-Stock
19	4GL-14348-00-00	PIPE 1	$11.99	$9.35	4 In-Stock
20	5HN-14987-00-00	HOSE	$34.99	$28.69	Usually ships in 7-10 business days
21	98517-04012-00 (replaces part # 98507-04012-00)	SCREW,PANHEAD	$4.20	$3.61	10+ In-Stock
22	92907-04100-00	WASHER, SPRING	$9.49	$7.40	6 In-Stock
23	4NM-14275-00-00	SPRING	$11.99	$9.35	3 In-Stock
24	4NM-14198-00-00	GASKET	$8.49	$6.62	2 In-Stock
25	5HN-14148-00-00	PIPE	$43.99	$34.31	2 In-Stock
26	522-14161-00-00	NUT, CABLE ADJUSTING	$10.99	$8.57	2 In-Stock
