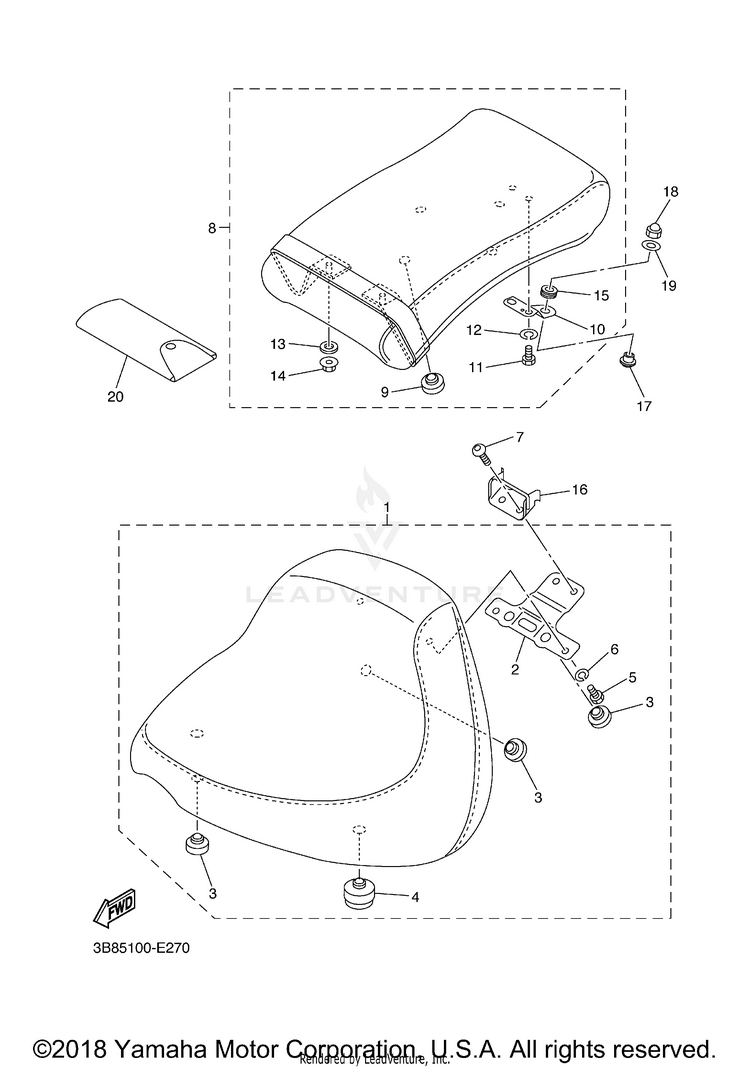

2007 Yamaha V-Star Midnight Custom XVS1100M Seat OEM Parts Diagram

Tag	Part #	Description	MSRP	Our Price	Stock Status
1	5PB-24710-00-00	SINGLE SEAT ASSY	$278.99	$217.61	Usually ships in 7-10 business days
2	5EL-2475H-00-00	BRACKET, SEAT LEVER 1	$26.99	$22.13	Usually ships in 7-10 business days
3	22W-24741-00-00	PAD, SEAT	$9.49	$7.40	10+ In-Stock
4	1T4-24741-00-00	PAD, SEAT	$8.49	$7.64	Usually ships in 7-10 business days
5	97017-06012-00 (replaces part # 97007-06012-00)	BOLT	$4.05	$3.48	10+ In-Stock
6	92907-06100-00	WASHER, SPRING	$1.30	$1.12	10+ In-Stock
7	92017-06016-00	BOLT, HEX. SOCKET BUTTON	$9.49	$7.40	10+ In-Stock
8	5PB-24750-10-00	TANDEM SEAT ASSY	$303.99	$237.11	Usually ships in 7-10 business days
9	22W-24741-00-00	PAD, SEAT	$9.49	$7.40	10+ In-Stock
10	5PB-2475J-00-00	BRACKET, SEAT LEVER 2	$13.49	$11.06	Usually ships in 7-10 business days
11	97017-06012-00 (replaces part # 97007-06012-00)	BOLT	$4.05	$3.48	10+ In-Stock
12	92907-06100-00	WASHER, SPRING	$1.30	$1.12	10+ In-Stock
13	90207-06380-00	WASHER, FINISH	$0.40	$0.36	Usually ships in 7-10 business days
14	95707-06500-00	NUT, FLANGE	$1.00	$0.99	10+ In-Stock
15	5YS-24742-00-00	GROMMET	$2.50	$2.15	1 In-Stock
16	5EL-2475N-00-00	BRACKET	$48.99	$40.17	Usually ships in 7-10 business days
17	5PB-2471M-00-00	COLLAR 2	$25.99	$21.31	Usually ships in 7-10 business days
18	90176-08002-00	NUT, CROWN	$9.49	$8.54	Usually ships in 7-10 business days
19	90201-08042-00	WASHER, PLATE	$9.49	$8.54	1 In-Stock
20	5EL-28100-10-00	TOOL KIT	$182.99	$142.73	Usually ships in 7-10 business days
