2008 Yamaha FZ1 Front Master Cylinder OEM Parts Diagram

Submodel FZ1 - FZS10XCR - 2008

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

FRONT MASTER CYLINDER

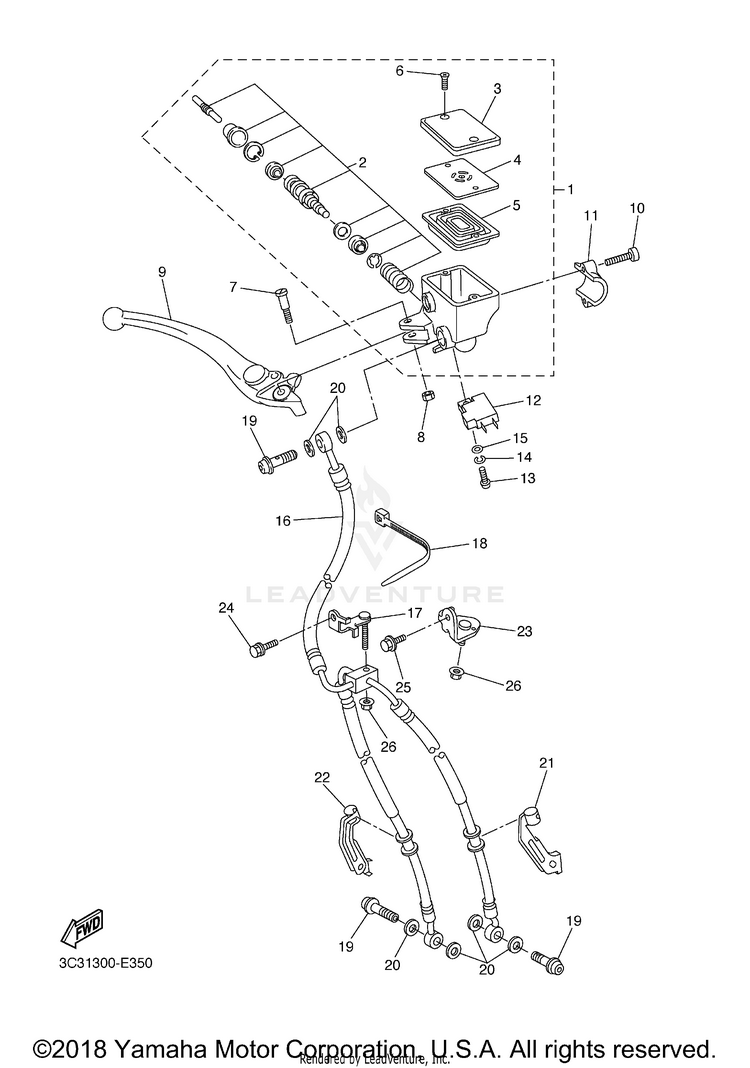

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
13C3-W2587-00-00MASTER CYLINDER SUB ASSY$260.99$203.57Usually ships in 7-10 business days
22D1-25807-00-00

(replaces part #
2D1-W0041-00-00)

CYLINDER KIT, MASTER$75.99$59.274 In-Stock
35VS-25852-00-00CAP, RESERVOIR$30.99$25.41Usually ships in 7-10 business days
45VS-25855-00-00BUSH, DIAPHRAGM$17.99$14.75Usually ships in 7-10 business days
520S-25854-00-00

(replaces part #
5VS-25854-00-00)

DIAPHRAGM, RESERVOIR$31.99$26.23Usually ships in 7-10 business days
65VS-2589H-00-00SCREW$4.45$3.834 In-Stock
75VS-2589F-00-00BOLT, LEVER$15.49$12.082 In-Stock
895617-06100-00NUT, U$2.90$2.4910+ In-Stock
95VS-83922-00-00LEVER 2$92.99$72.534 In-Stock
105VS-26332-00-00BOLT$4.95$4.264 In-Stock
115VS-25867-00-00BRACKET, MASTER CYLINDER$39.99$32.79Usually ships in 7-10 business days
124HM-83980-00-00FRONT STOP SWITCH ASSY$45.99$35.873 In-Stock
1398517-04012-00

(replaces part #
98502-04012-00)

SCREW,PANHEAD$4.20$3.6110+ In-Stock
1492990-04100-00

(replaces part #
92902-04100-00)

WASHER, SPRING-$1.0210+ In-Stock
1592990-04600-00

(replaces part #
92902-04600-00)

WASHER, PLATE$0.99$0.907 In-Stock
163C3-25872-00-00HOSE, BRAKE 1$176.99$138.05Usually ships in 7-10 business days
172D1-23857-00-00HOLDER$12.49$10.24Usually ships in 7-10 business days
183MA-82591-00-00CLAMP$10.99$9.01Usually ships in 7-10 business days
1990401-10172-00BOLT, UNION$6.49$5.0610+ In-Stock
2090430-10005-00GASKET$9.49$7.4010+ In-Stock
212D1-25875-00-00HOLDER, BRAKE HOSE 1$10.99$9.01Usually ships in 7-10 business days
222D1-25876-00-00HOLDER, BRAKE HOSE 2$13.49$11.06Usually ships in 7-10 business days
233C3-23378-00-00BRACKET, HORN$15.99$13.11Usually ships in 7-10 business days
2495817-06012-00BOLT, FLANGE$1.95$1.7710+ In-Stock
2595817-06012-00

(replaces part #
90105-06556-00)

BOLT, FLANGE$1.95$1.7710+ In-Stock
2695707-06500-00NUT, FLANGE$1.00$0.9910+ In-Stock
