2008 Yamaha RHINO 450 4X4 Shift Cam Fork OEM Parts Diagram

Submodel RHINO 450 SPECIAL ED - YXR45FSPX - 2008

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

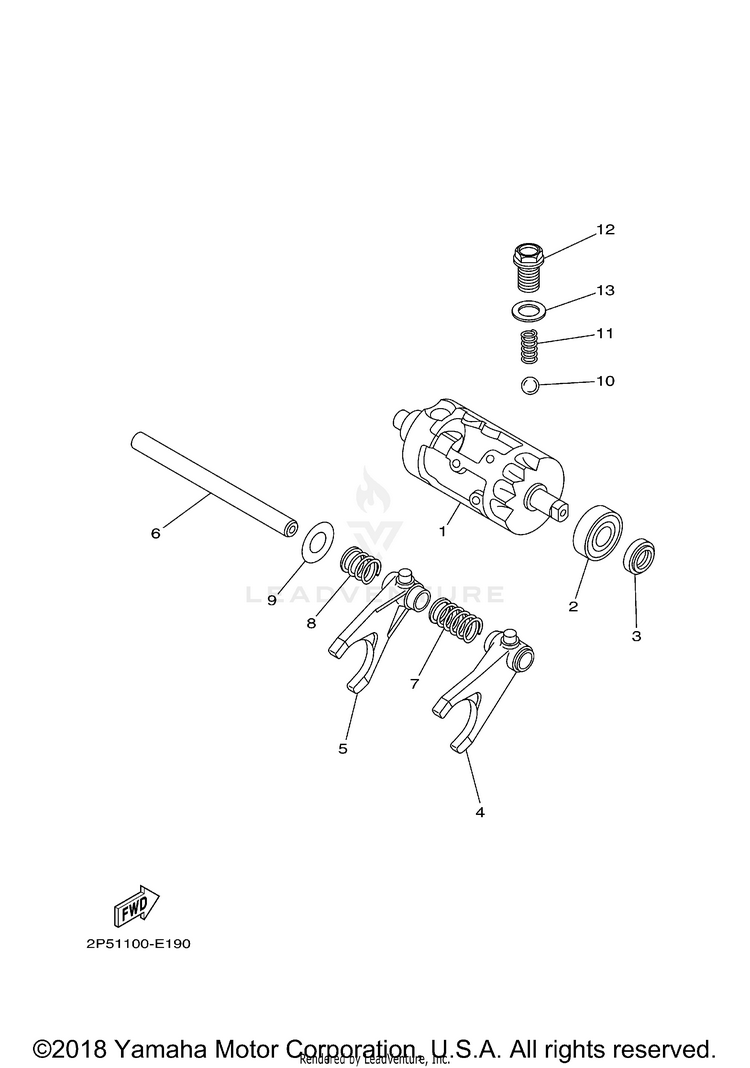

SHIFT CAM FORK

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
12P5-18540-00-00SHIFT CAM ASSY$176.99$139.83Usually ships in 7-10 business days
293306-00208-00BEARING$45.99$37.71Usually ships in 7-10 business days
393102-15212-00OIL SEAL$10.49$8.189 In-Stock
41D9-18511-00-00FORK, SHIFT 1$47.99$39.35Usually ships in 7-10 business days
51D9-18512-00-00FORK, SHIFT 2$58.99$46.01Usually ships in 7-10 business days
64KB-18531-01-00BAR, SHIFT FORK GUIDE 1$18.49$15.16Usually ships in 7-10 business days
790501-130A1-00SPRING, COMPRESSION$1.75$1.58Usually ships in 7-10 business days
890501-166L4-00SPRING, COMPRESSION$1.80$1.62Usually ships in 7-10 business days
990201-15234-00

(replaces part #
90201-15564-00)

WASHER, PLATE$9.49$7.406 In-Stock
1093503-08007-00BALL$4.50$3.879 In-Stock
1190501-10353-00SPRING, COMPRESSION$10.49$8.182 In-Stock
1290105-14003-00BOLT, FLANGE$9.49$8.54Usually ships in 7-10 business days
1390430-14194-00GASKET$9.49$8.548 In-Stock
