2008 Yamaha Road Star XV1700 Handle Switch Lever OEM Parts Diagram

Submodel ROAD STAR - XV17AWXCL - 2008

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

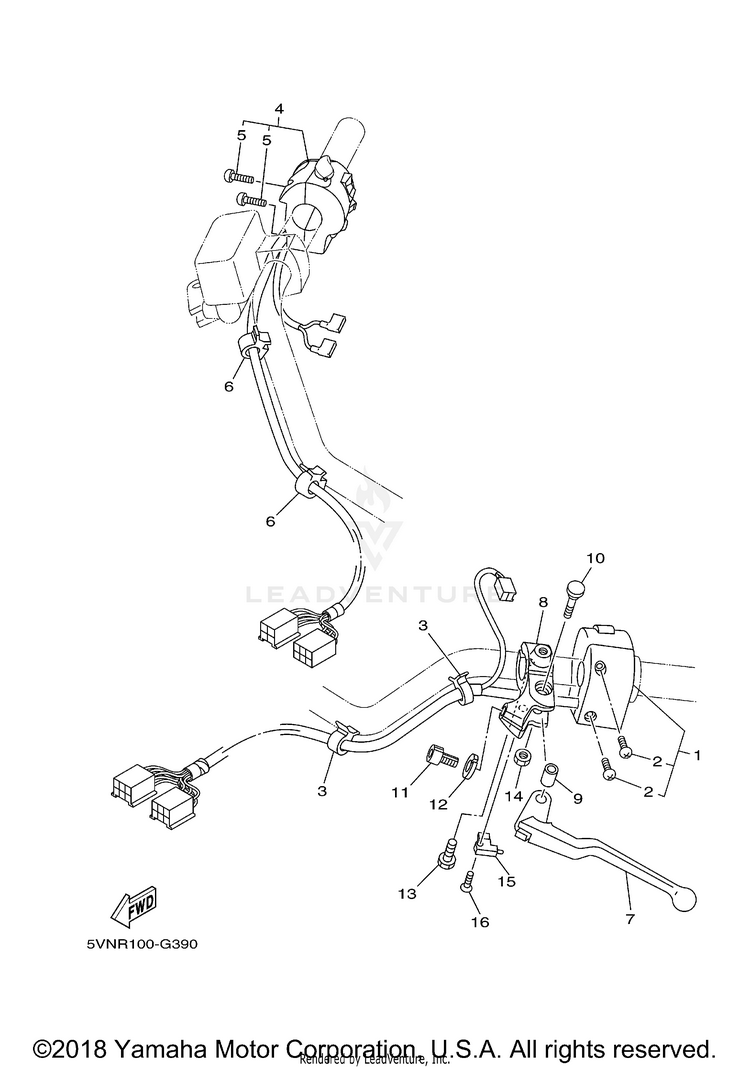

HANDLE SWITCH LEVER

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
15VN-83973-20-00SWITCH, HANDLE 3$375.99$293.27Usually ships in 7-10 business days
298580-05525-00

(replaces part #
98580-05025-00)

SCREW, PAN HEAD$2.00$1.80Usually ships in 7-10 business days
390464-15192-00CLAMP$9.49$7.404 In-Stock
45VN-83972-00-00SWITCH, HANDLE 4$280.45$218.75Usually ships in 7-10 business days
598580-05525-00

(replaces part #
98580-05025-00)

SCREW, PAN HEAD$2.00$1.80Usually ships in 7-10 business days
690464-15192-00CLAMP$9.49$7.404 In-Stock
75VN-83912-00-00LEVER 1$53.99$42.11Usually ships in 7-10 business days
85BN-82911-00-00HOLDER, LEVER 1$49.99$40.99Usually ships in 7-10 business days
94TR-83913-00-00COLLAR, LEVER 1$8.49$6.6210+ In-Stock
104TR-83945-00-00BOLT, LEVER$16.49$13.52Usually ships in 7-10 business days
1190123-08002-00

(replaces part #
90123-08046-00)

BOLT$10.49$8.1810+ In-Stock
1290179-08030-00

(replaces part #
90179-08148-00)

NUT$10.49$8.1810+ In-Stock
1397024-06020-00

(replaces part #
97004-06020-00)

BOLT$9.49$7.4010+ In-Stock
1495604-06100-00NUT, U$9.49$7.403 In-Stock
153YX-82917-01-00SWITCH$47.99$37.435 In-Stock
1698707-03020-00SCREW, FLAT HEAD$9.49$8.54Usually ships in 7-10 business days
