2008 Yamaha Road Star XV1700 Steering Handle Cable OEM Parts Diagram

Submodel ROAD STAR - XV17AWXCW - 2008

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

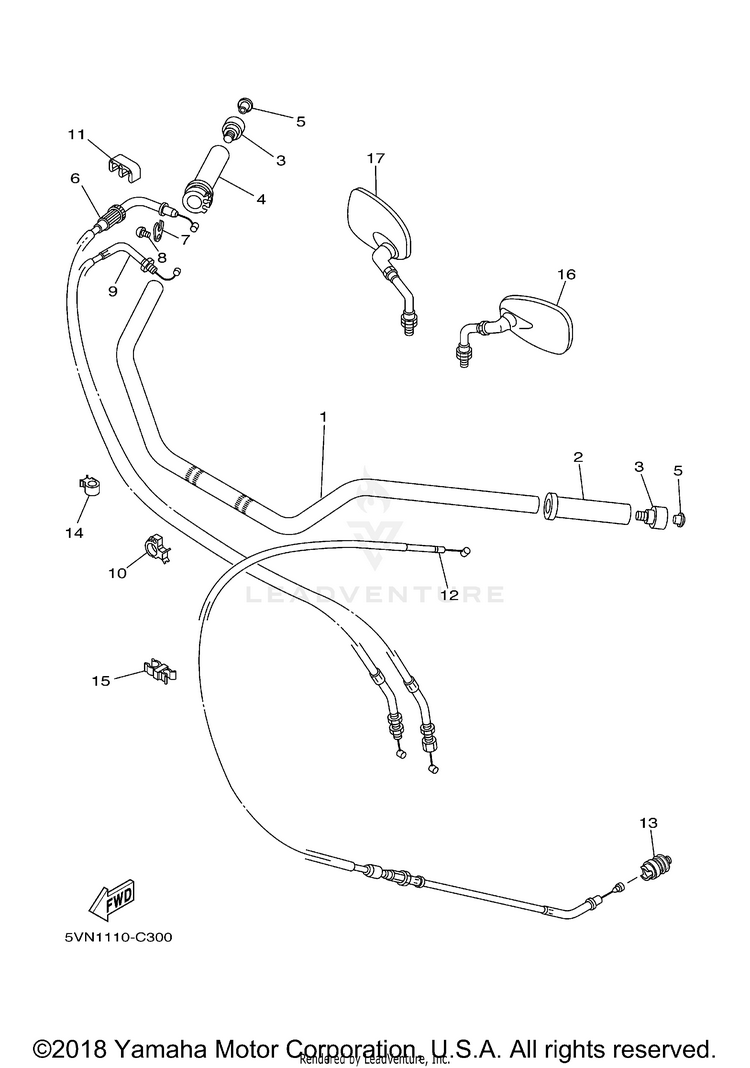

STEERING HANDLE CABLE

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
15VN-26111-10-00HANDLEBAR$177.99$140.89Usually ships in 7-10 business days
24NK-26241-01-00

(replaces part #
4NK-26241-00-00)

GRIP LH$41.99$34.43Usually ships in 7-10 business days
35EL-26246-00-00END, GRIP$50.99$39.77Usually ships in 7-10 business days
44XY-26240-00-00GRIP ASSY$99.99$77.99Usually ships in 7-10 business days
590338-10164-00PLUG$10.49$8.604 In-Stock
65VN-26311-20-00CABLE, THROTTLE 1$124.99$97.49Usually ships in 7-10 business days
75H0-26393-00-00HOLDER$8.49$7.64Usually ships in 7-10 business days
898507-05008-00SCREW, PAN HEAD$3.85$3.3110+ In-Stock
95VN-26312-20-00CABLE, THROTTLE 2$124.99$97.49Usually ships in 7-10 business days
1090464-25217-00CLAMP$4.45$4.00Usually ships in 7-10 business days
1190464-07006-00CLAMP$6.49$5.84Usually ships in 7-10 business days
125VN-26335-10-00CABLE, CLUTCH$80.99$63.17Usually ships in 7-10 business days
131E6-26342-00-00BOOT, CABLE$33.99$26.514 In-Stock
1490464-10190-00CLAMP$10.49$8.60Usually ships in 7-10 business days
1590464-09014-00CLAMP$5.49$4.94Usually ships in 7-10 business days
164NK-26280-10-00REAR VIEW MIRROR ASSY (LEFT)$145.99$113.87Usually ships in 7-10 business days
174NK-26290-10-00REAR VIEW MIRROR ASSY (RIGHT)$150.99$117.77Usually ships in 7-10 business days
