2008 Yamaha TTR125L Frame OEM Parts Diagram

Submodel TTR125L - TTR125LX - 2008

Shop Aftermarket Parts

FRAME

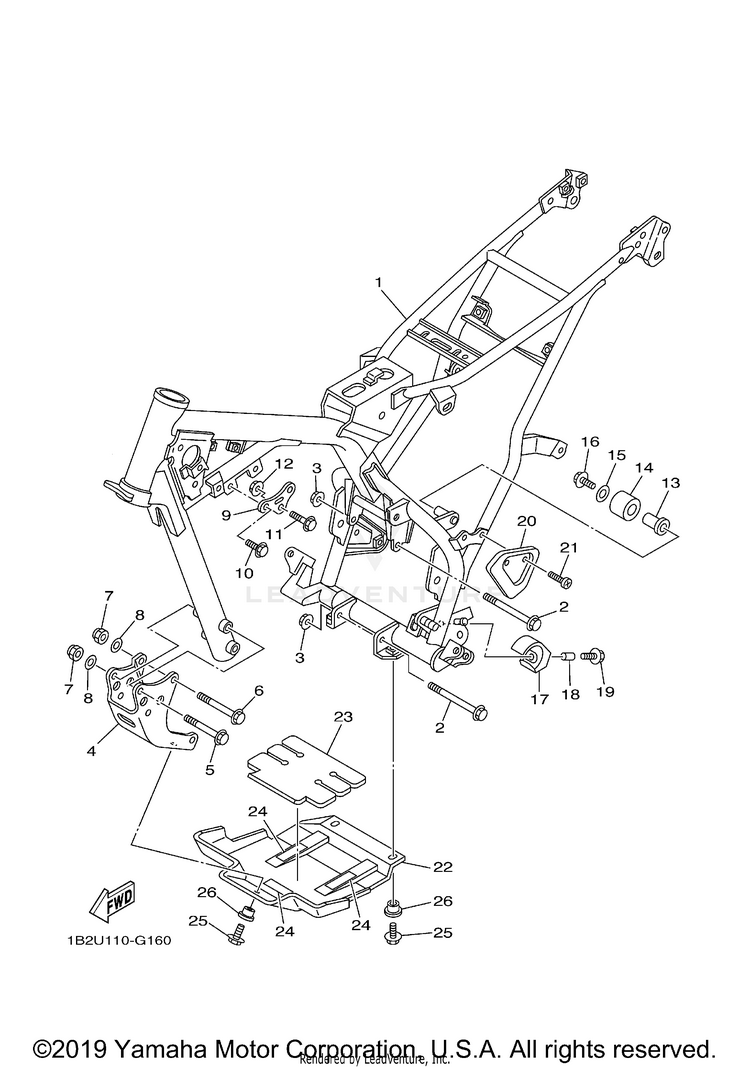

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
11B2-F1110-60-00FRAME COMP.$621.99$550.18Usually ships in 7-10 business days
290105-08007-00BOLT, FLANGE$6.49$5.068 In-Stock
390185-08169-00NUT, SELF-LOCKING$9.49$7.8910+ In-Stock
41B2-F1316-10-00STAY, ENGINE 3$155.99$123.20Usually ships in 7-10 business days
590105-084A1-00BOLT, FLANGE$11.49$8.962 In-Stock
690105-08011-00BOLT, FLANGE$6.49$5.067 In-Stock
795617-08100-00NUT, U$10.49$8.1810+ In-Stock
890201-086P8-00WASHER, PLATE$5.49$4.2810+ In-Stock
91B2-F1315-00-00STAY, ENGINE 2$28.99$23.77Usually ships in 7-10 business days
1090105-082A0-00

(replaces part #
90105-08846-00)

BOLT, FLANGE$5.49$4.286 In-Stock
1190105-08002-00BOLT, FLANGE-$3.104 In-Stock
1290185-08169-00NUT, SELF-LOCKING$9.49$7.8910+ In-Stock
135RM-F2184-00-00BUSH$2.35$2.023 In-Stock
145RM-F2178-00-00TENSIONER$10.49$8.183 In-Stock
1590201-081R9-00

(replaces part #
90201-08753-00)

WASHER, PLATE$10.49$8.1810+ In-Stock
1695027-08012-00

(replaces part #
9502M-08012-00)

BOLT, FLANGE$10.49$8.188 In-Stock
1799999-04397-00

(replaces part #
1B2-F2178-00-00)

TENSIONER SET$20.99$16.375 In-Stock
1890387-067K6-00COLLAR$11.49$8.967 In-Stock
1990119-06118-00BOLT, WITH WASHER$9.49$7.4010+ In-Stock
201B2-F117F-00-00COVER$38.99$31.97Usually ships in 7-10 business days
2198980-06010-00

(replaces part #
98904-06010-00)

SCREW, BIND$10.49$8.6310+ In-Stock
221B2-F1471-00-00PROTECTOR, ENGINE$19.49$15.206 In-Stock
235HP-21485-00-00

(replaces part #
1B2-F1485-00-00)

DAMPER, RUBBER 1$37.99$29.634 In-Stock
241B2-F1268-00-00SEAL$3.50$3.0110+ In-Stock
2595817-06016-00

(replaces part #
9580M-06016-00)

BOLT, FLANGE$1.95$1.6810+ In-Stock
2690387-06681-00COLLAR$10.49$8.1810+ In-Stock
