2008 Yamaha TTR125LE Crankcase OEM Parts Diagram

Submodel TTR125LE - TTR125LEX - 2008

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

CRANKCASE

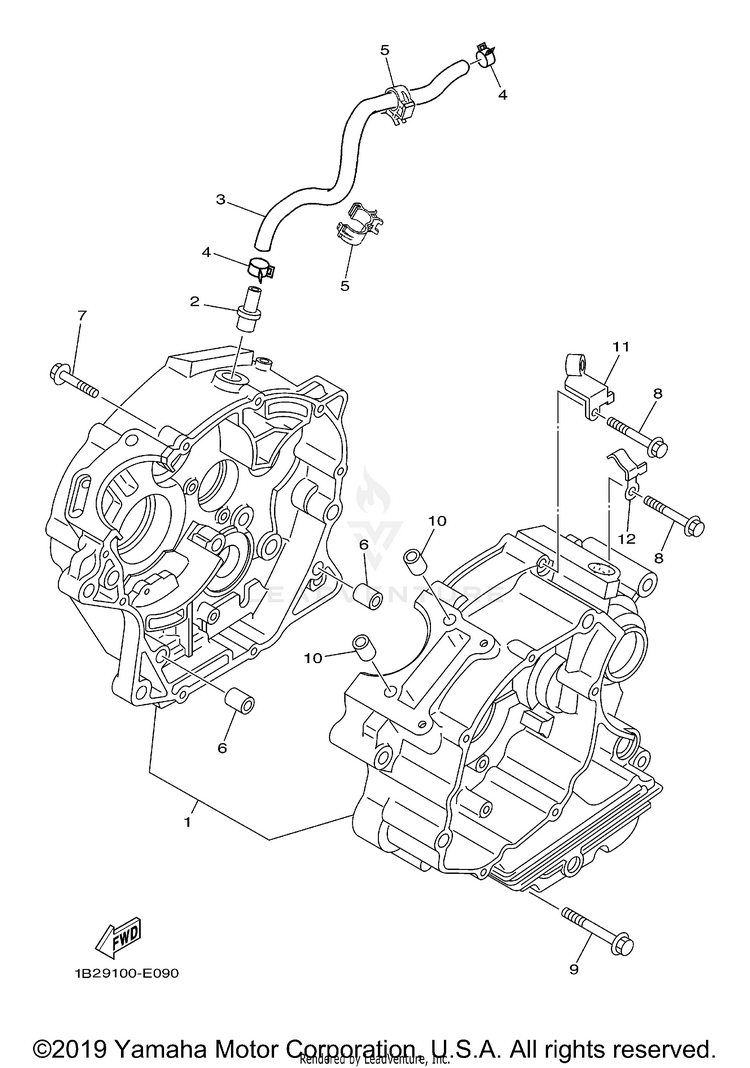

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
15HH-E5150-30-00CRANKCASE ASSY$339.99$283.94Usually ships in 7-10 business days
25HH-E1167-00-00PIPE, BREATHER 2$8.49$7.64Usually ships in 7-10 business days
31B2-E1166-20-00

(replaces part #
1B2-E1166-10-00)

PIPE, BREATHER 1$12.49$9.746 In-Stock
490467-13133-00

(replaces part #
90467-13800-00)

CLIP$9.49$7.4010+ In-Stock
590464-15192-00CLAMP$9.49$7.404 In-Stock
699530-10114-00PIN, DOWEL$2.65$2.4810+ In-Stock
795027-06030-00

(replaces part #
90109-06W35-00)

BOLT, FLANGE$4.30$3.87Usually ships in 7-10 business days
895027-06045-00

(replaces part #
90109-06W36-00)

BOLT, FLANGE$3.55$3.058 In-Stock
995817-06055-00

(replaces part #
90109-06W37-00)

BOLT, FLANGE$2.35$2.12Usually ships in 7-10 business days
1099530-10114-00PIN, DOWEL$2.65$2.4810+ In-Stock
111B2-E5441-00-00HOLDER, CLUTCH CABLE$4.65$4.18Usually ships in 7-10 business days
1290462-08005-00CLAMP$5.99$5.39Not Shipping
