2008 Yamaha V-Star Silverado XVS1100 Front Brake Caliper OEM Parts Diagram

Submodel V STAR 1100 SILVERADO - XVS11ATXCB - 2008

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

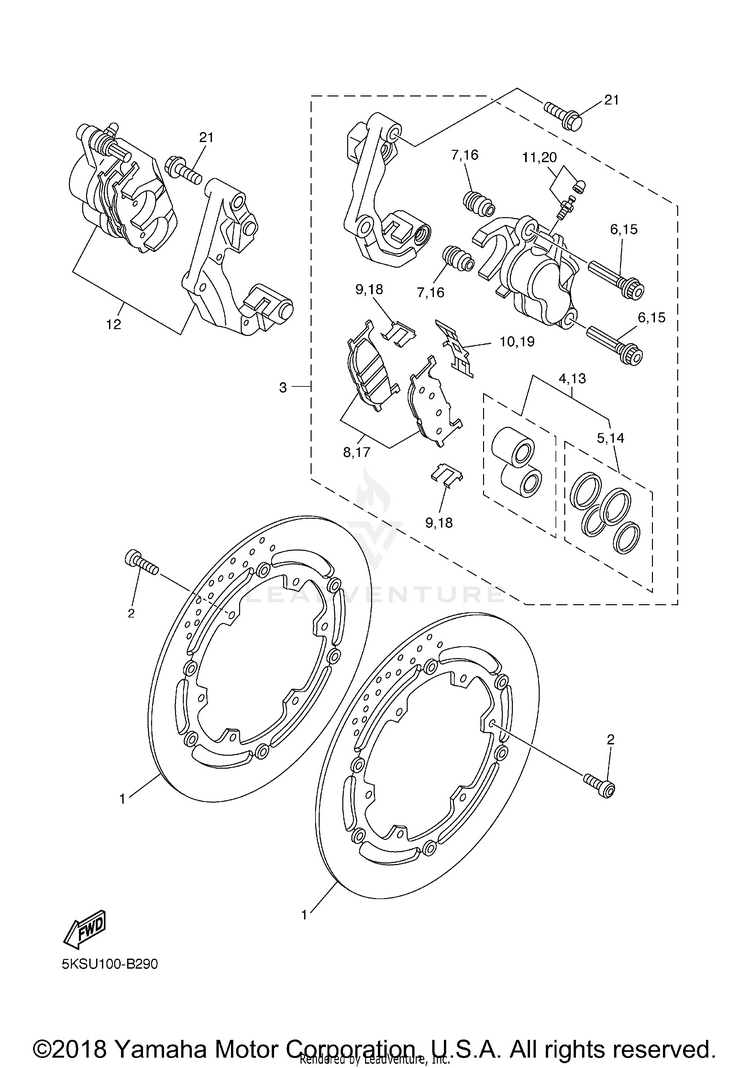

FRONT BRAKE CALIPER

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
15PX-2581T-10-00DISC BRAKE ASSY$229.99$179.39Usually ships in 7-10 business days
290111-08057-00

(replaces part #
90109-083G4-00)

BOLT$2.50$2.1510+ In-Stock
35KS-2580T-01-00CALIPER ASSY (LEFT)$558.99$452.85Usually ships in 7-10 business days
45KS-25802-00-00

(replaces part #
5KS-W0057-00-00)

PISTON ASSY, CALIPER$75.99$59.27Usually ships in 7-10 business days
54HC-25803-50-00

(replaces part #
4FU-W0047-00-00)

CALIPER SEAL KIT$66.99$52.25Usually ships in 7-10 business days
65JW-25914-10-00PIN, SLIDE$24.99$19.495 In-Stock
74TT-25937-00-00BOOT 2$17.99$14.75Usually ships in 7-10 business days
85VU-25805-00-00

(replaces part #
4EB-W0045-00-00)

BRAKE PAD KIT$48.99$39.064 In-Stock
94BP-25919-00-00SUPPORT, PAD$48.99$40.17Usually ships in 7-10 business days
103YX-25929-00-00SPRING, ANTI RATTLE$35.99$29.51Usually ships in 7-10 business days
1115B-W0048-00-00

(replaces part #
51L-W0048-00-00)

BLEED SCREW KIT$21.99$17.157 In-Stock
125KS-2580U-01-00CALIPER ASSY (RIGHT)$558.99$452.85Usually ships in 7-10 business days
135KS-25802-00-00

(replaces part #
5KS-W0057-00-00)

PISTON ASSY, CALIPER$75.99$59.27Usually ships in 7-10 business days
144HC-25803-50-00

(replaces part #
4FU-W0047-00-00)

CALIPER SEAL KIT$66.99$52.25Usually ships in 7-10 business days
155JW-25914-10-00PIN, SLIDE$24.99$19.495 In-Stock
164TT-25937-00-00BOOT 2$17.99$14.75Usually ships in 7-10 business days
175VU-25805-00-00

(replaces part #
4EB-W0045-00-00)

BRAKE PAD KIT$48.99$39.064 In-Stock
184BP-25919-00-00SUPPORT, PAD$48.99$40.17Usually ships in 7-10 business days
193YX-25929-00-00SPRING, ANTI RATTLE$35.99$29.51Usually ships in 7-10 business days
2015B-W0048-00-00

(replaces part #
51L-W0048-00-00)

BLEED SCREW KIT$21.99$17.157 In-Stock
2190105-10638-00BOLT, WASHER BASED$8.49$6.6210+ In-Stock
