2008 Yamaha V-Star Silverado XVS1100 Meter OEM Parts Diagram

Submodel V STAR 1100 SILVERADO - XVS11ATXCR - 2008

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

METER

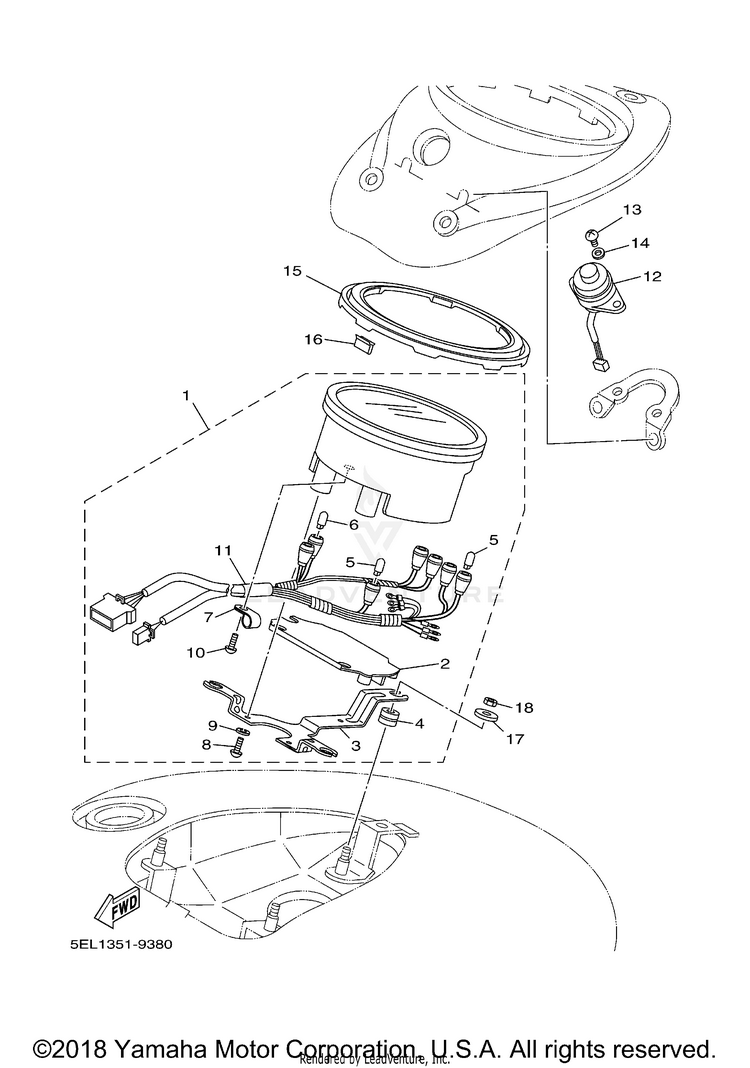

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
15KS-83500-70-00SPEEDOMETER ASSY (MPH)$833.99$659.15Usually ships in 7-10 business days
24NK-83579-00-00COVER, METER 2$8.49$7.64Usually ships in 7-10 business days
35EL-83519-00-00BRACKET, METER$48.99$40.17Usually ships in 7-10 business days
44NK-83523-00-00DAMPER$4.40$3.96Usually ships in 7-10 business days
53FV-83517-00-00BULB (12V-1.7W)$9.49$7.4010+ In-Stock
64NK-83517-00-00BULB (12V-1.4W, T6.5)$8.49$7.64Usually ships in 7-10 business days
75EL-8357E-00-00CLAMP$2.10$1.89Usually ships in 7-10 business days
898507-04010-00SCREW, PAN HEAD$3.65$3.1410+ In-Stock
992907-04100-00WASHER, SPRING$9.49$7.406 In-Stock
1097707-40012-00SCREW, TAPPING$9.49$7.4010+ In-Stock
115EL-83509-00-00SOCKET CORD ASSY$201.99$159.58Usually ships in 7-10 business days
124NK-8358J-00-00SWITCH, METER CONTROL$97.99$76.43Usually ships in 7-10 business days
1398517-05012-00

(replaces part #
98507-05012-00)

SCREW, PAN HEAD$5.49$4.285 In-Stock
1492907-05600-00WASHER, PLATE$1.00$0.8610+ In-Stock
155EL-28346-00-00MOLE 2$16.49$13.52Usually ships in 7-10 business days
161FK-2171H-00-00GUIDE$8.49$6.6210+ In-Stock
1790201-061A5-00

(replaces part #
90201-05036-00)

WASHER, PLATE$8.49$6.6210+ In-Stock
1895317-05600-00

(replaces part #
95307-05600-00)

NUT$2.50$2.153 In-Stock
