2008 Yamaha YZ450F Electrical 1 OEM Parts Diagram

Submodel YZ450F - YZ450FXW - 2008

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

ELECTRICAL 1

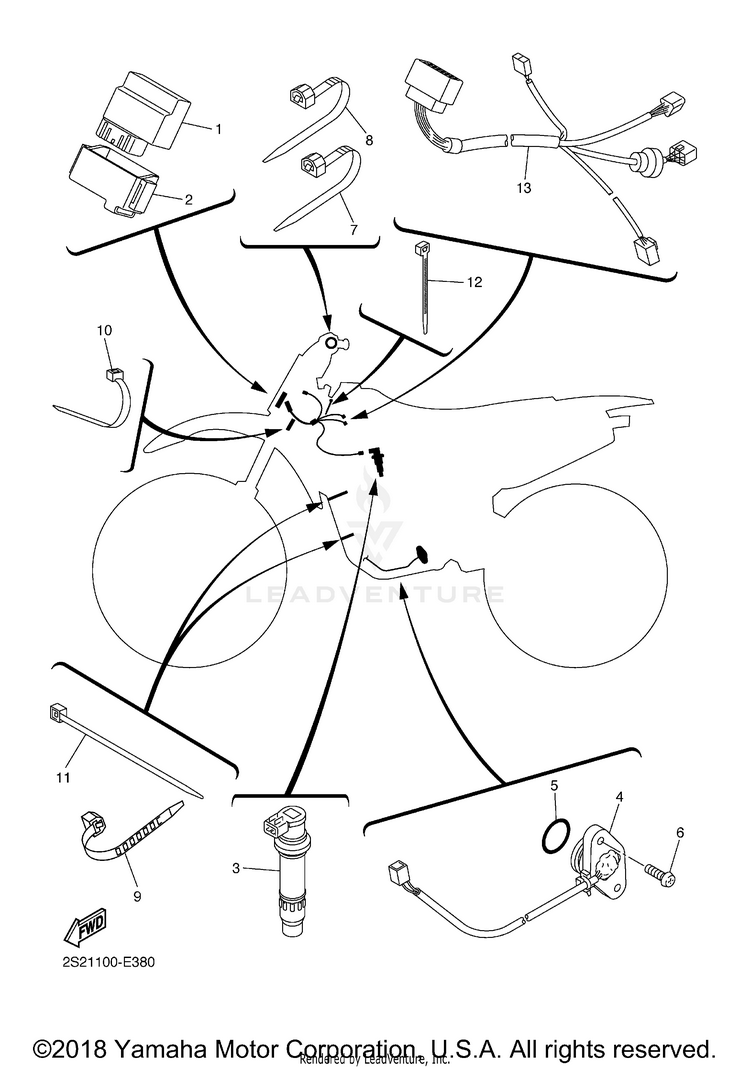

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
12S2-85540-B0-00C.D.I. UNIT ASSY$430.99$357.82Usually ships in 7-10 business days
21C3-85546-00-00BAND$17.99$14.75Usually ships in 7-10 business days
35TA-82310-10-00IGNITION COIL ASSY$219.99$171.5910+ In-Stock
AFTERMARKET ALTERNATIVE
$36.99$34.9910+ In-Stock
42S2-82540-01-00

(replaces part #
2S2-82540-00-00)

NEUTRAL SWITCH ASSY$83.99$65.933 In-Stock
593210-21001-00O-RING$6.49$5.0610+ In-Stock
698902-05014-00

(replaces part #
90154-05022-00)

SCREW, BIND$1.85$1.5910+ In-Stock
790464-13077-00CLAMP$9.49$7.4010+ In-Stock
890464-15195-00

(replaces part #
90464-13073-00)

CLAMP$4.41$3.7910+ In-Stock
990464-15195-00CLAMP$4.41$3.7910+ In-Stock
105Y9-12491-00-00CLAMP 1$7.49$6.744 In-Stock
1190464-15152-00

(replaces part #
90465-13275-00)

CLAMP$6.49$5.068 In-Stock
1290464-15152-00

(replaces part #
90465-13275-00)

CLAMP$6.49$5.068 In-Stock
132S2-82509-01-00WIRE, SUB LEAD$143.99$112.31Usually ships in 7-10 business days
