2008 Yamaha YZ450F Front Master Cylinder OEM Parts Diagram

Submodel YZ450F - YZ450FX - 2008

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

FRONT MASTER CYLINDER

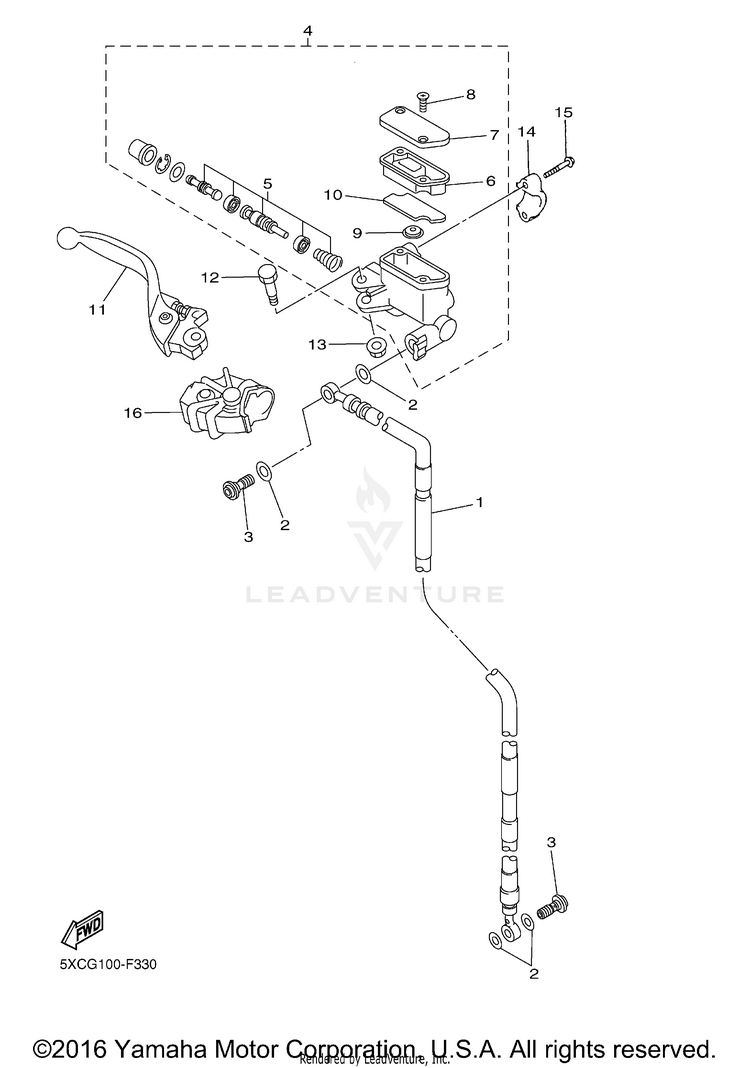

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
15XC-25872-L0-00HOSE, BRAKE 1$184.99$144.294 In-Stock
290430-10005-00GASKET$9.49$7.4010+ In-Stock
390401-10172-00BOLT, UNION$6.49$5.0610+ In-Stock
45XC-W2587-00-00MASTER CYLINDER SUB ASSY$320.99$250.378 In-Stock
55XC-W0041-00-00CYLINDER KIT, MASTER$66.99$52.2510+ In-Stock
AFTERMARKET ALTERNATIVE
$29.80$28.3110+ In-Stock
65XC-25854-G0-00DIAPHRAGM, RESERVOIR$14.49$11.3010+ In-Stock
75XC-25852-G0-00CAP, RESERVOIR$25.99$20.277 In-Stock
898707-04012-00

(replaces part #
98706-04012-00)

SCREW, FLAT HEAD-$1.9410+ In-Stock
95CG-25715-00-00SEPARATOR ASSY$14.49$11.305 In-Stock
105XC-25853-G0-00FLOAT, RESERVOIR$5.99$4.676 In-Stock
115XC-83922-L0-00LEVER 2$44.99$35.0910+ In-Stock
125MV-2589F-00-00BOLT, LEVER$7.49$5.8410+ In-Stock
1395780-06500-00

(replaces part #
95701-06500-00)

NUT, FLANGE$2.95$2.5410+ In-Stock
145MV-25867-00-00BRACKET, MASTER CYLINDER$22.99$17.934 In-Stock
155MV-25833-00-00BOLT, FITTING$7.49$5.846 In-Stock
165XC-26372-G0-00COVER, HANDLE LEVER 1$24.99$19.4910+ In-Stock
