2008 Yamaha YZ450F Front Wheel OEM Parts Diagram

Submodel YZ450F - YZ450FXL - 2008

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

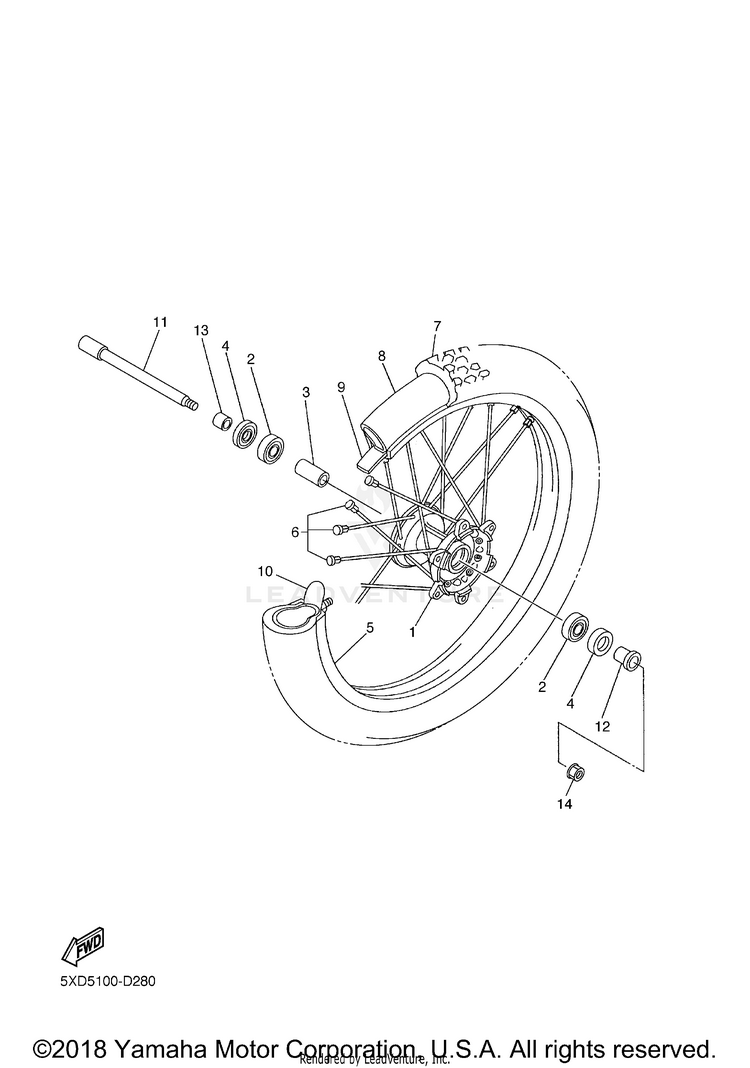

FRONT WHEEL

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
15NY-25111-00-00HUB, FRONT$328.99$256.61Usually ships in 7-10 business days
293306-90409-00BEARING$39.99$31.1910+ In-Stock
35NY-25117-00-00SPACER, BEARING$34.99$27.299 In-Stock
493102-26468-00OIL SEAL$23.99$18.7110+ In-Stock
594416-21034-00RIM (1.60-21) | UR FOR DPBSE$319.99$265.61Usually ships in 7-10 business days
594416-21040-00RIM (1.60-21) | UR FOR PWS1$327.99$272.63Usually ships in 7-10 business days
65NY-25104-00-00SPOKE SET, FRONT$235.99$184.073 In-Stock
794108-21025-00TIRE (80/100-21 51M D742FA) | DUNLOP$118.99$104.18Usually ships in 7-10 business days
894227-21123-00

(replaces part #
94227-21101-00)

TUBE (MCS 2.75/3.00-21 TR6) | DUNLOP$51.99$40.5510+ In-Stock
994330-21084-00

(replaces part #
94309-21161-00)

BAND, RIM (1.60-21) | DUNLOP$18.49$14.4210+ In-Stock
105SF-25394-00-00SPACER, BEAD$30.99$24.1710+ In-Stock
115XC-25181-G0-00AXLE, WHEEL$100.99$78.7710+ In-Stock
125XC-25186-G0-00COLLAR, WHEEL$34.99$27.2910+ In-Stock
135XC-25183-G0-00COLLAR, WHEEL$41.99$32.7510+ In-Stock
1490179-16011-00NUT$19.49$15.2010+ In-Stock

Get additional RM Cash on OEM purchases!

Select parts to add, then click
