2009 Yamaha BIG BEAR 250 Crankcase OEM Parts Diagram

Submodel BIG BEAR 250 - YFM25BYB - 2009

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

CRANKCASE

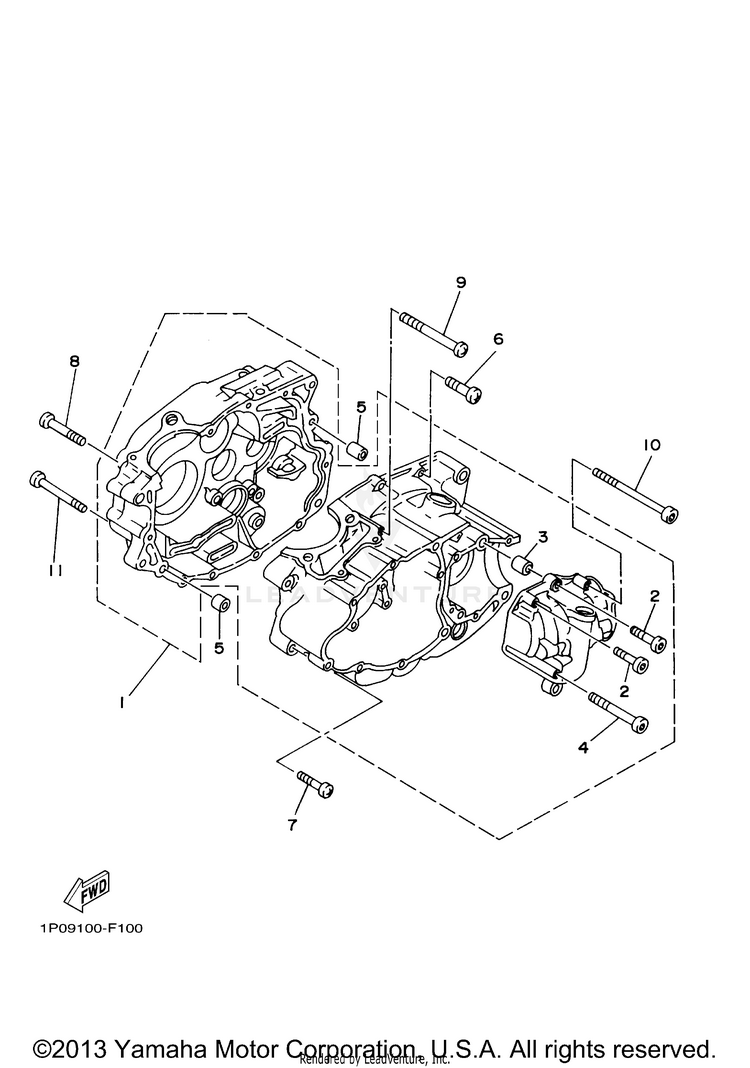

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
15XG-E5150-00-00CRANKCASE ASSY$329.99$257.39Usually ships in 7-10 business days
291317-06035-00BOLT, HEX. SOCKET HEAD$3.90$3.356 In-Stock
399530-10114-00

(replaces part #
99530-10014-00)

PIN, DOWEL$2.65$2.4810+ In-Stock
491317-06085-00BOLT$6.49$5.84Usually ships in 7-10 business days
591812-16805-00PIN, DOWEL$1.85$1.66Usually ships in 7-10 business days
698517-06030-00

(replaces part #
98507-06030-00)

SCREW, PAN HEAD$3.45$2.97
798507-06040-00SCREW, PAN HEAD$3.22$2.779 In-Stock
898507-06060-00SCREW, PAN HEAD$7.99$6.238 In-Stock
998507-06085-00SCREW, PAN HEAD$6.99$6.29Usually ships in 7-10 business days
1090110-06817-00BOLT, HEXAGON SOCKET HEAD$0.80$0.72Usually ships in 7-10 business days
1198507-06075-00SCREW, PAN HEAD$7.99$6.232 In-Stock
