2009 Yamaha BIG BEAR 250 Shift Cam Fork OEM Parts Diagram

Submodel BIG BEAR 250 - YFM25BYR - 2009

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

SHIFT CAM FORK

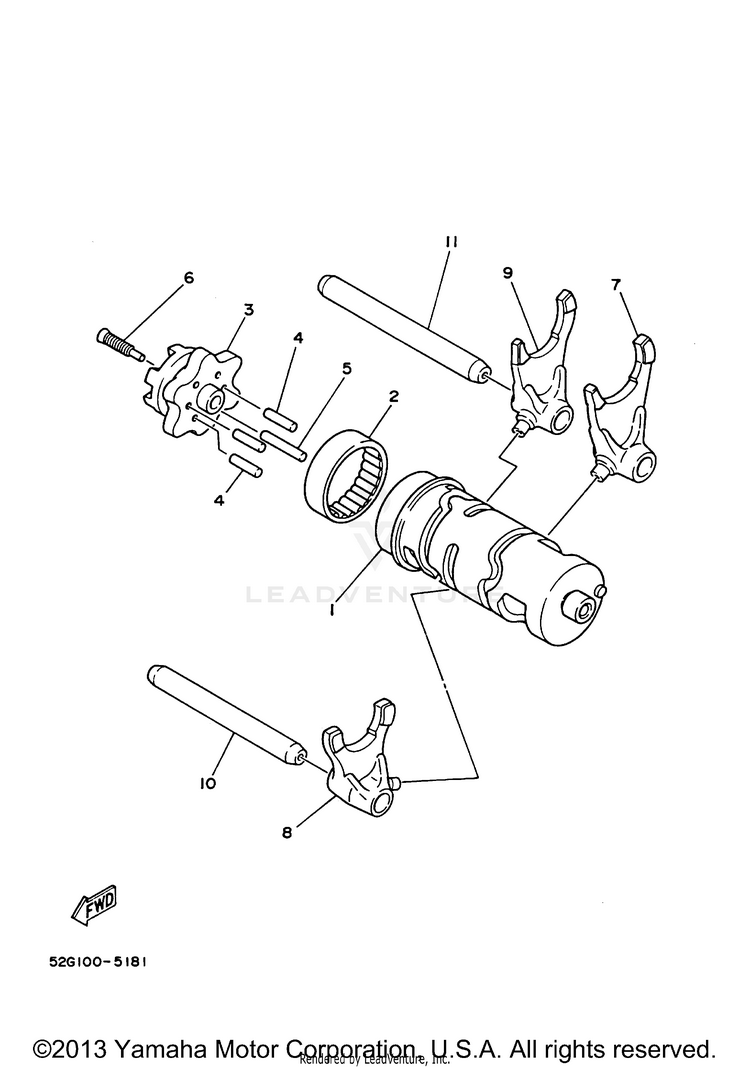

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
152G-18540-01-00SHIFT CAM ASSY$103.99$81.11Usually ships in 7-10 business days
293315-23607-00BEARING$25.99$21.31Usually ships in 7-10 business days
35XG-E8185-00-00SEGMENT$8.99$8.09Usually ships in 7-10 business days
493604-16092-00PIN, DOWEL$3.45$2.979 In-Stock
593604-20156-00PIN, DOWEL$3.85$3.315 In-Stock
690151-06054-00SCREW, COUNTERSUNK$1.55$1.40Usually ships in 7-10 business days
75XG-E8513-00-00FORK, SHIFT 3$14.99$12.29Usually ships in 7-10 business days
85XG-E8511-00-00FORK, SHIFT 1$14.49$11.88Usually ships in 7-10 business days
95XG-E8512-00-00FORK, SHIFT 2$14.49$11.88Usually ships in 7-10 business days
105XG-E8531-00-00BAR, SHIFT FORK GUIDE 1$3.70$3.33Usually ships in 7-10 business days
115XG-E8535-00-00BAR, SHIFT FORK GUIDE 2$4.20$3.78Usually ships in 7-10 business days
