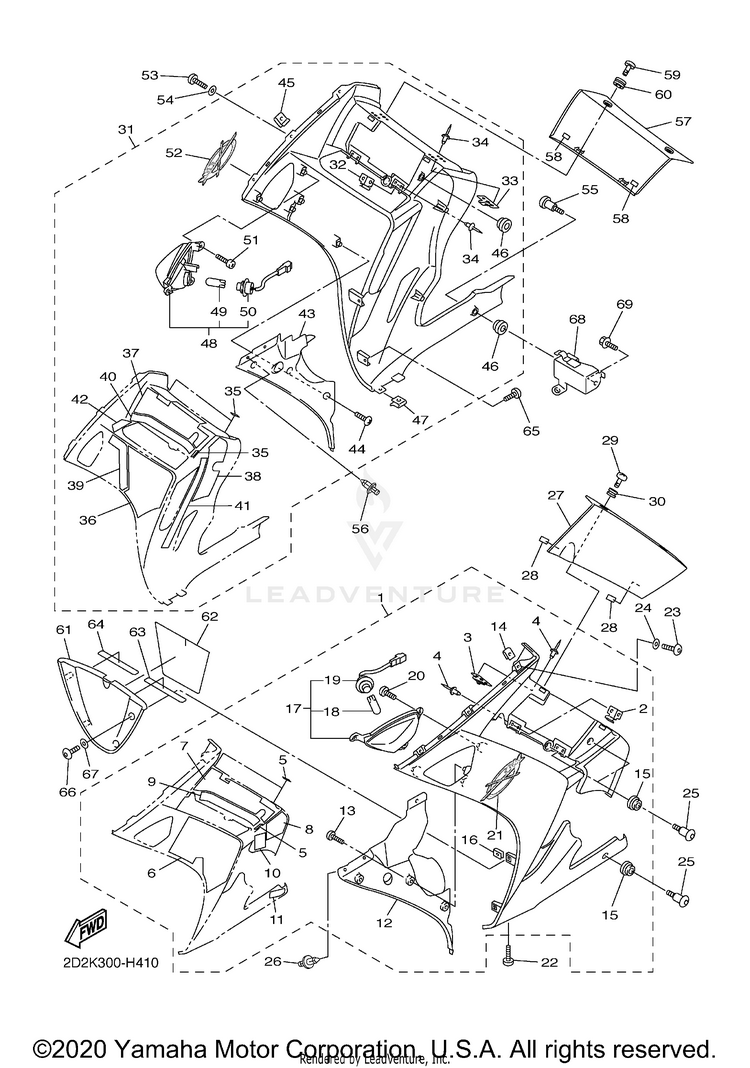

COWLING 2

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
13P6-Y283J-L0-P5BODY, FRONT LOWER 1 | SMX (CALIFORNIA)$469.99$419.19Usually ships in 7-10 business days
13P6-Y283J-K0-P7BODY, FRONT LOWER 1 | SMX$625.99$545.44Usually ships in 7-10 business days
23P6-21796-00-00HINGE$11.49$9.42Usually ships in 7-10 business days
33XV-2177L-00-00PLATE, SPRING$6.99$6.29Usually ships in 7-10 business days
490267-32103-00RIVET, BLIND$3.65$3.28Usually ships in 7-10 business days
53P6-28307-00-00SEAL$3.65$3.28Usually ships in 7-10 business days
63P6-28415-00-00DAMPER 1$6.49$5.84Usually ships in 7-10 business days
73P6-28416-00-00DAMPER 2$6.99$6.29Usually ships in 7-10 business days
83P6-28435-00-00DAMPER 4$1.95$1.76Usually ships in 7-10 business days
93P6-2834E-00-00DAMPER 3$3.05$2.74Usually ships in 7-10 business days
103P6-2837J-00-00DAMPER 5$1.65$1.48Usually ships in 7-10 business days
115VY-2837J-00-00DAMPER 5$3.65$3.28Usually ships in 7-10 business days
123P6-2836K-00-00PANEL, INNER 1$66.99$52.25Usually ships in 7-10 business days
1397702-50016-00SCREW, TAPPING$2.60$2.249 In-Stock
1490183-051A0-00NUT, SPRING$4.10$3.5310+ In-Stock
1590480-13014-00

(replaces part #
90480-13398-00)

GROMMET$9.49$7.4010+ In-Stock
1690183-051A0-00NUT, SPRING$4.10$3.5310+ In-Stock
173P6-83310-10-00FRONT FLASHER LIGHT ASSY 1$102.99$80.33Usually ships in 7-10 business days
183P6-83331-10-00BULB, FLASHER (12V-21/5W)$12.99$10.65Usually ships in 7-10 business days
193P6-83509-10-00SOCKET CORD ASSY$28.99$23.77Usually ships in 7-10 business days
2097702-50016-00SCREW, TAPPING$2.60$2.249 In-Stock
213P6-2839B-00-00EMBLEM 3D$76.99$60.05Usually ships in 7-10 business days
2290111-05003-00BOLT, HEXAGON SOCKET HEAD$9.49$7.4010+ In-Stock
2390111-05003-00BOLT, HEXAGON SOCKET HEAD$9.49$7.4010+ In-Stock
2490202-05180-00WASHER, PLATE$11.49$8.9610+ In-Stock
2590109-06037-00BOLT$8.49$6.626 In-Stock
2690269-06008-00RIVET$9.49$7.4010+ In-Stock
AFTERMARKET ALTERNATIVE
$6.99$4.9910+ In-Stock
273P6-2830C-01-P7

(replaces part #
3P6-2830C-00-P7)

VISOR, SIDE 1 | SMX$120.99$94.37Usually ships in 7-10 business days
283P6-28217-00-00DAMPER 1$8.49$7.64Usually ships in 7-10 business days
293XV-28386-00-00HEAD$18.99$14.8110+ In-Stock
3090480-09001-00GROMMET$4.00$3.60Usually ships in 7-10 business days
313P6-Y283K-L0-P5BODY, FRONT LOWER 2 | SMX (CALIFORNIA)$625.99$545.44Usually ships in 7-10 business days
313P6-Y283K-K0-P7BODY, FRONT LOWER 2 | SMX U49$586.99$490.91Usually ships in 7-10 business days
323P6-21796-00-00HINGE$11.49$9.42Usually ships in 7-10 business days
333XV-2177L-00-00PLATE, SPRING$6.99$6.29Usually ships in 7-10 business days
3490267-32103-00RIVET, BLIND$3.65$3.28Usually ships in 7-10 business days
353P6-28307-00-00SEAL$3.65$3.28Usually ships in 7-10 business days
363P6-28425-00-00DAMPER 3$7.99$7.19Usually ships in 7-10 business days
373P6-28416-10-00DAMPER 2$6.99$6.29Usually ships in 7-10 business days
383P6-28455-00-00DAMPER, 4$4.60$4.14Usually ships in 7-10 business days
393P6-28371-00-00DAMPER$4.35$3.92Usually ships in 7-10 business days
403P6-2834F-00-00DAMPER$4.00$3.60Usually ships in 7-10 business days
413P6-2837K-00-00DAMPER 6$4.70$4.23Usually ships in 7-10 business days
423P6-2847N-00-00DAMPER 8$1.60$1.44Usually ships in 7-10 business days
433P6-2836L-00-00PANEL, INNER 2$66.99$52.25Usually ships in 7-10 business days
4497702-50016-00SCREW, TAPPING$2.60$2.249 In-Stock
4590183-051A0-00NUT, SPRING$4.10$3.5310+ In-Stock
4690480-13014-00

(replaces part #
90480-13398-00)

GROMMET$9.49$7.4010+ In-Stock
4790183-051A0-00NUT, SPRING$4.10$3.5310+ In-Stock
483P6-83320-10-00FRONT FLASHER LIGHT ASSY 2$117.99$92.03Usually ships in 7-10 business days
493P6-83331-10-00BULB, FLASHER (12V-21/5W)$12.99$10.65Usually ships in 7-10 business days
503P6-83509-00-00

(replaces part #
3P6-8350L-00-00)

SOCKET CORD ASSY$19.49$15.98Usually ships in 7-10 business days
5197702-50016-00SCREW, TAPPING$2.60$2.249 In-Stock
523P6-2839B-00-00EMBLEM 3D$76.99$60.05Usually ships in 7-10 business days
5390111-05003-00BOLT, HEXAGON SOCKET HEAD$9.49$7.4010+ In-Stock
5490202-05180-00WASHER, PLATE$11.49$8.9610+ In-Stock
5590109-06037-00BOLT$8.49$6.626 In-Stock
5690269-06008-00RIVET$9.49$7.4010+ In-Stock
AFTERMARKET ALTERNATIVE
$6.99$4.9910+ In-Stock
573P6-2830D-01-P7

(replaces part #
3P6-2830D-00-P7)

VISOR, SIDE 2 | SMX$101.99$79.55Usually ships in 7-10 business days
583P6-28217-00-00DAMPER 1$8.49$7.64Usually ships in 7-10 business days
593XV-28386-00-00HEAD$18.99$14.8110+ In-Stock
6090480-09001-00GROMMET$4.00$3.60Usually ships in 7-10 business days
613P6-28385-11-P0

(replaces part #
3P6-28385-00-P7)

COVER, UNDER | SMX$292.99$228.53Usually ships in 7-10 business days
623P6-2848H-00-00SEAT$12.99$10.65Usually ships in 7-10 business days
633P6-2848K-00-00SEAT 2$3.90$3.51Usually ships in 7-10 business days
643P6-2848L-00-00SEAT 3$4.05$3.64Usually ships in 7-10 business days
6597702-50016-00SCREW, TAPPING$2.60$2.249 In-Stock
6690111-05003-00BOLT, HEXAGON SOCKET HEAD$9.49$7.4010+ In-Stock
6790202-05180-00WASHER, PLATE$11.49$8.9610+ In-Stock
685JW-2836F-00-00BRACKET 3$38.99$31.97Usually ships in 7-10 business days
6995817-06012-00

(replaces part #
95822-06012-00)

BOLT, FLANGE$1.95$1.7710+ In-Stock
