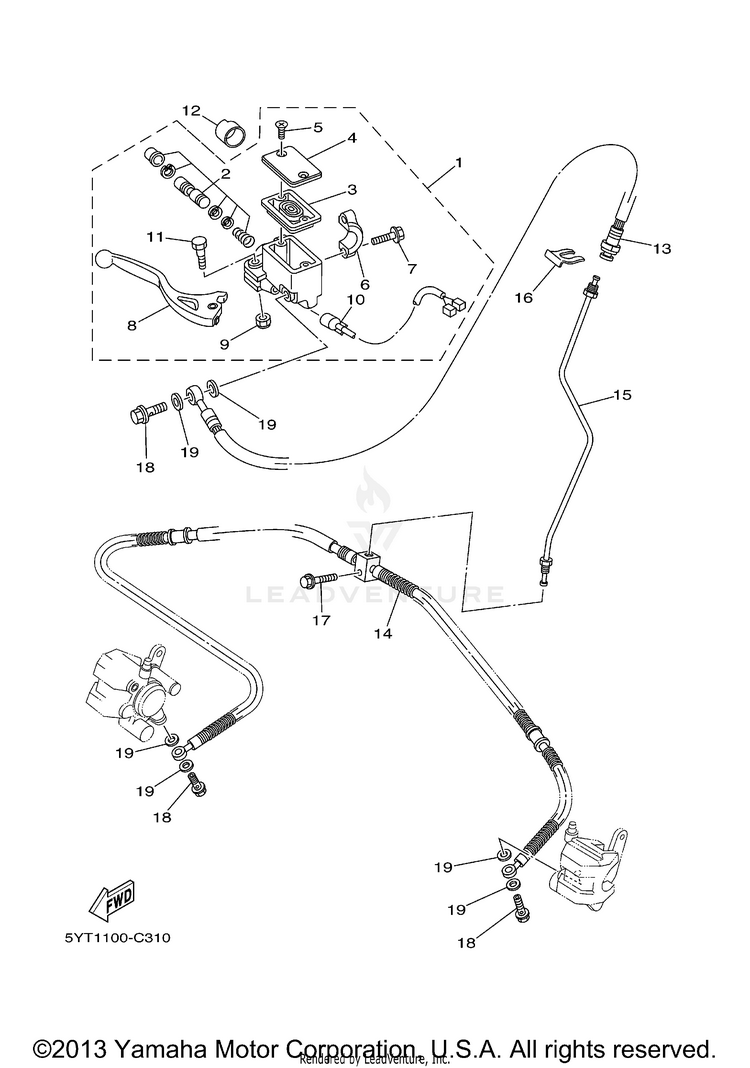

FRONT MASTER CYLINDER

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
15LP-2583T-03-00

(replaces part #
5LP-2583T-01-00)

MASTER CYLINDER ASSY$436.99$340.85Usually ships in 7-10 business days
AFTERMARKET ALTERNATIVE
$34.99$19.9910+ In-Stock
25LP-W0041-00-00CYLINDER KIT, MASTER$78.99$61.614 In-Stock
34L0-25854-00-00DIAPHRAGM, RESERVOIR$30.99$24.1710+ In-Stock
45LP-25852-02-00

(replaces part #
5LP-25852-01-00)

CAP, RESERVOIR$24.99$19.496 In-Stock
53D8-2589H-10-00

(replaces part #
4NK-2589H-00-00)

SCREW$8.49$6.6210+ In-Stock
65LP-25867-00-00BRACKET, MASTER CYLINDER$28.99$22.614 In-Stock
75MV-25833-00-00BOLT, FITTING$7.49$5.846 In-Stock
85LP-83922-00-00LEVER 2$42.99$33.53
995604-06100-00NUT, U$9.49$7.403 In-Stock
105LP-83980-00-00FRONT STOP SWITCH ASSY$70.99$55.372 In-Stock
115MV-2589F-00-00BOLT, LEVER$7.49$5.8410+ In-Stock
121UY-26259-00-00COLLAR$21.99$17.152 In-Stock
135YT-25872-11-00

(replaces part #
5YT-25872-10-00)

HOSE, BRAKE 1$46.99$38.53Usually ships in 7-10 business days
145YT-25873-10-00HOSE, BRAKE 2$94.99$74.09Usually ships in 7-10 business days
155YT-25871-10-00PIPE, BRAKE$15.49$12.70Usually ships in 7-10 business days
162GU-25866-00-00CIRCLIP$10.99$8.573 In-Stock
1795817-06025-00

(replaces part #
95822-06025-00)

BOLT, FLANGE$5.49$4.2810+ In-Stock
1890401-10015-00BOLT, UNION$12.49$9.7410+ In-Stock
1990201-10118-00WASHER, PLATE$3.80$3.2710+ In-Stock
