2009 Yamaha TTR125E Starting Motor OEM Parts Diagram

Submodel TTR125E - TTR125EY - 2009

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

STARTING MOTOR

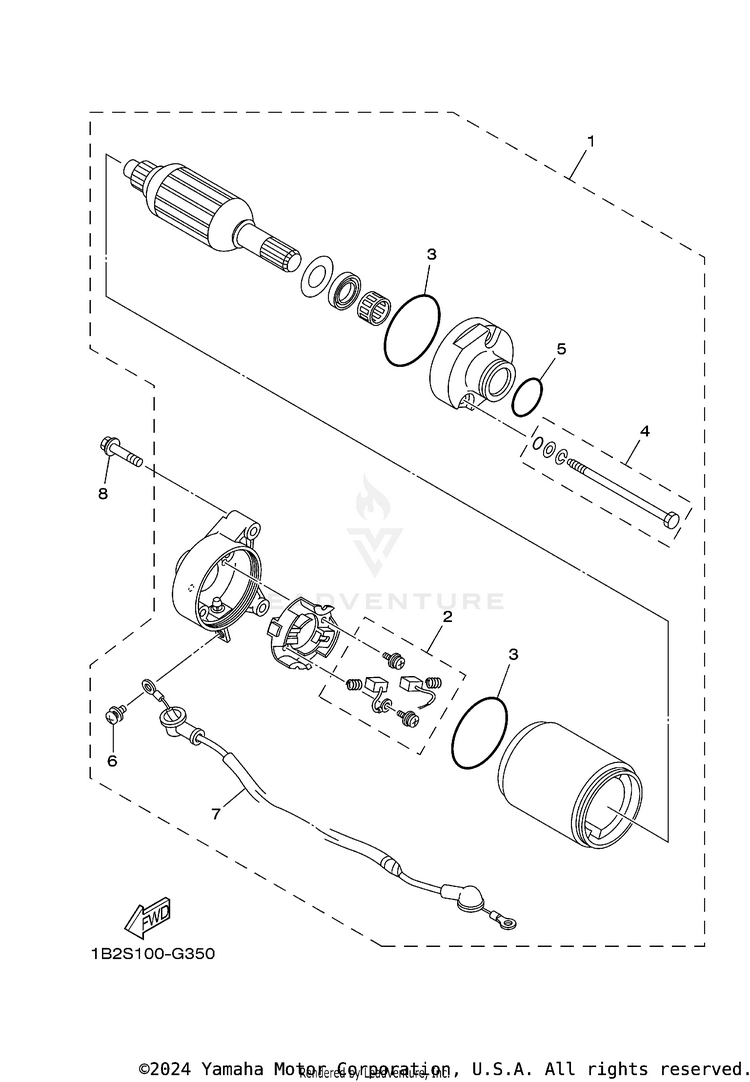

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
11B2-H1800-01-00

(replaces part #
1B2-H1800-00-00)

STARTING MOTOR ASSY$329.99$274.07Usually ships in 7-10 business days
27CP-H1801-00-00BRUSH SET$32.99$27.05Usually ships in 7-10 business days
393210-55669-00O-RING$9.49$7.403 In-Stock
44FP-H1828-00-00

(replaces part #
4FP-H1828-01-00)

BOLT 2$7.49$6.74Usually ships in 7-10 business days
593210-25711-00

(replaces part #
4FP-H182L-00-00)

O-RING$8.49$6.6210+ In-Stock
698507-05008-00

(replaces part #
97601-05108-00)

SCREW, PAN HEAD$3.85$3.3110+ In-Stock
71B2-H183G-00-00CORD COMP.$155.99$121.67Usually ships in 7-10 business days
895027-06025-00

(replaces part #
9502M-06025-00)

BOLT, FLANGE$4.16$3.5810+ In-Stock
