2009 Yamaha V-Star 650 Classic Steering OEM Parts Diagram

Submodel V STAR 650 CLASSIC - XVS65AYCS - 2009

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

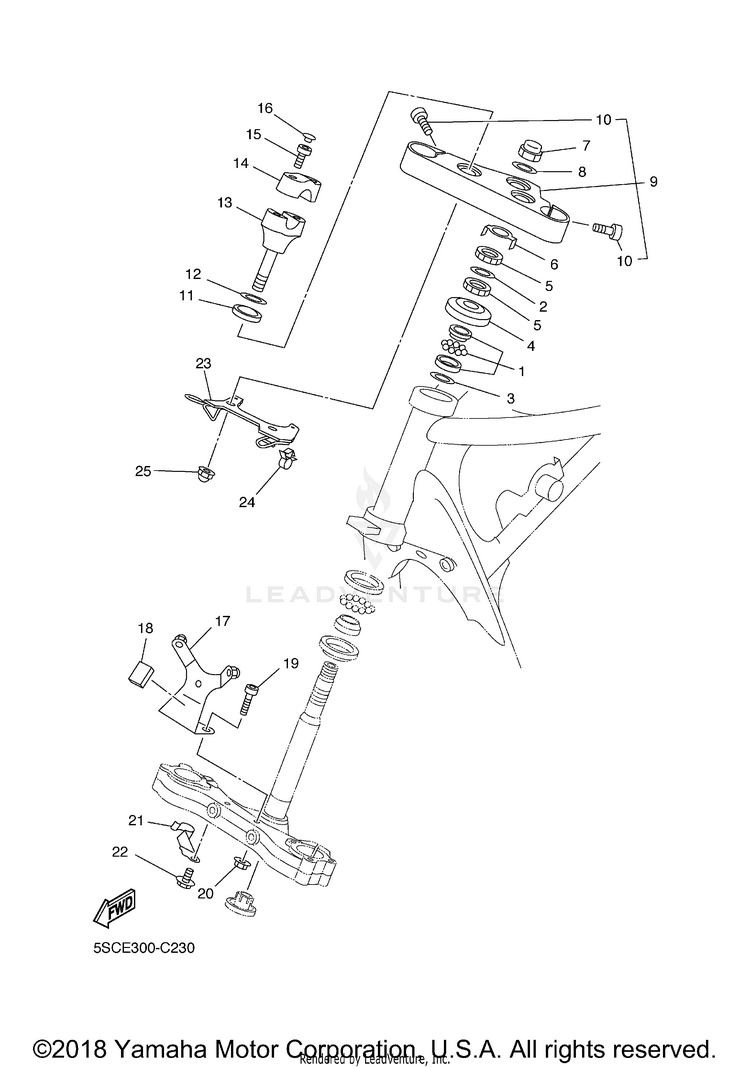

STEERING

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
193399-99931-00BEARING$62.99$49.13Usually ships in 7-10 business days
290202-26142-00WASHER, PLATE$10.49$8.187 In-Stock
390202-24190-00WASHER, PLATE$10.49$8.60Usually ships in 7-10 business days
41W1-23416-00-00COVER, BALL RACE 2$32.99$25.736 In-Stock
590179-25004-00

(replaces part #
90179-25033-00)

NUT$26.99$21.055 In-Stock
626H-23418-01-00WASHER, SPECIAL$15.49$12.702 In-Stock
790176-22081-00NUT, CROWN$37.99$31.15Usually ships in 7-10 business days
890201-22018-00WASHER, PLATE$6.49$5.068 In-Stock
94VR-Y2343-70-00CROWN, HANDLE$345.99$287.45Usually ships in 7-10 business days
1091314-08030-00BOLT, HEXAGON SOCKET HEAD$2.55$2.199 In-Stock
113DM-23445-00-00DAMPER$8.49$6.621 In-Stock
1290201-14220-00WASHER, PLATE$9.49$7.4010+ In-Stock
135MB-23442-01-00

(replaces part #
5MB-23442-00-00)

HOLDER, HANDLE LOWER$221.99$175.72Usually ships in 7-10 business days
145MB-23441-00-00HOLDER, HANDLE UPPER$188.99$149.72Usually ships in 7-10 business days
1591314-08025-00BOLT, HEXAGON SOCKET HEAD$9.49$8.542 In-Stock
1690338-08163-00PLUG (CROME)$3.75$3.2210+ In-Stock
175BN-23174-01-00STAY, HEADLIGHT$60.99$47.57Usually ships in 7-10 business days
185BN-2317J-00-00DAMPER 1$4.40$3.96Usually ships in 7-10 business days
1992014-08040-00BOLT, BUTTON HEAD$9.49$8.546 In-Stock
2095707-08500-00NUT,FLANGE (JN5)$1.95$1.6810+ In-Stock
215BN-25886-00-00HOLDER, BRAKE HOSE$17.49$14.34Usually ships in 7-10 business days
2295027-06010-00BOLT, FLANGE$3.55$3.0510+ In-Stock
235BN-23389-10-00GUIDE, CABLE$55.99$43.67Usually ships in 7-10 business days
2490464-18246-00CLAMP$2.50$2.251 In-Stock
2590176-12052-00NUT, CROWN$13.49$11.06Usually ships in 7-10 business days
