2009 Yamaha V-Star 650 Classic Taillight OEM Parts Diagram

Submodel V STAR 650 CLASSIC - XVS65AYCW - 2009

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

TAILLIGHT

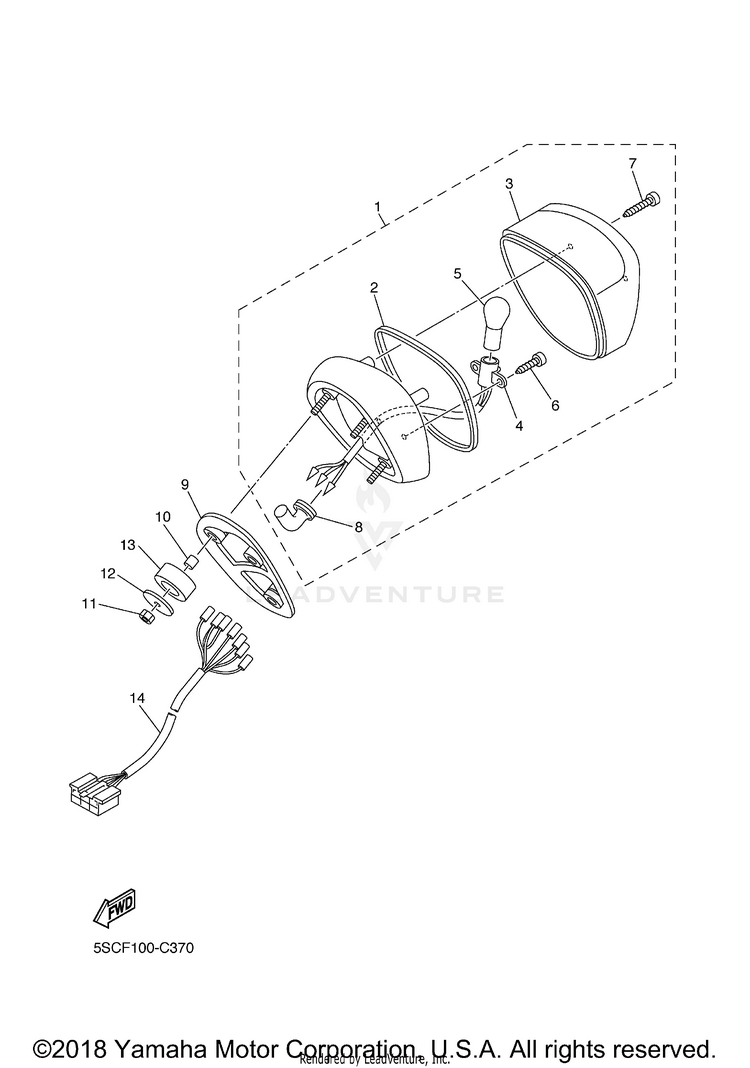

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
15BN-84700-01-00TAILLIGHT ASSY$217.99$170.03Usually ships in 7-10 business days
21VJ-14462-00-00

(replaces part #
4NK-84702-00-00)

SEAL$19.99$15.5910+ In-Stock
34NK-84721-00-00LENS, TAILLIGHT$36.99$28.854 In-Stock
45BN-84735-00-00SOCKET CORD ASSY$30.99$25.41Usually ships in 7-10 business days
5256-84714-61-00BULB (12V-27/8W)$12.99$10.1310+ In-Stock
697707-40616-00SCREW,TAPPING(4HP)$1.85$1.598 In-Stock
797780-40525-00SCREW, TAPPING$10.49$8.60Usually ships in 7-10 business days
85BN-84154-00-00GROMMET$9.49$8.54Usually ships in 7-10 business days
94NK-84527-01-00DAMPER$36.99$30.33Usually ships in 7-10 business days
1090387-07598-00COLLAR$6.49$5.0610+ In-Stock
1195317-06600-00NUT$3.85$3.3110+ In-Stock
1290201-065G8-00WASHER, PLATE$9.49$7.4010+ In-Stock
135BN-84553-00-00DAMPER$8.49$7.64Usually ships in 7-10 business days
145BN-84717-10-00CORD, TAILLIGHT$55.99$43.67Usually ships in 7-10 business days
