2009 Yamaha V-Star 650 Silverado Generator OEM Parts Diagram

Submodel V STAR 650 SILVERADO - XVS65ATYCR - 2009

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

GENERATOR

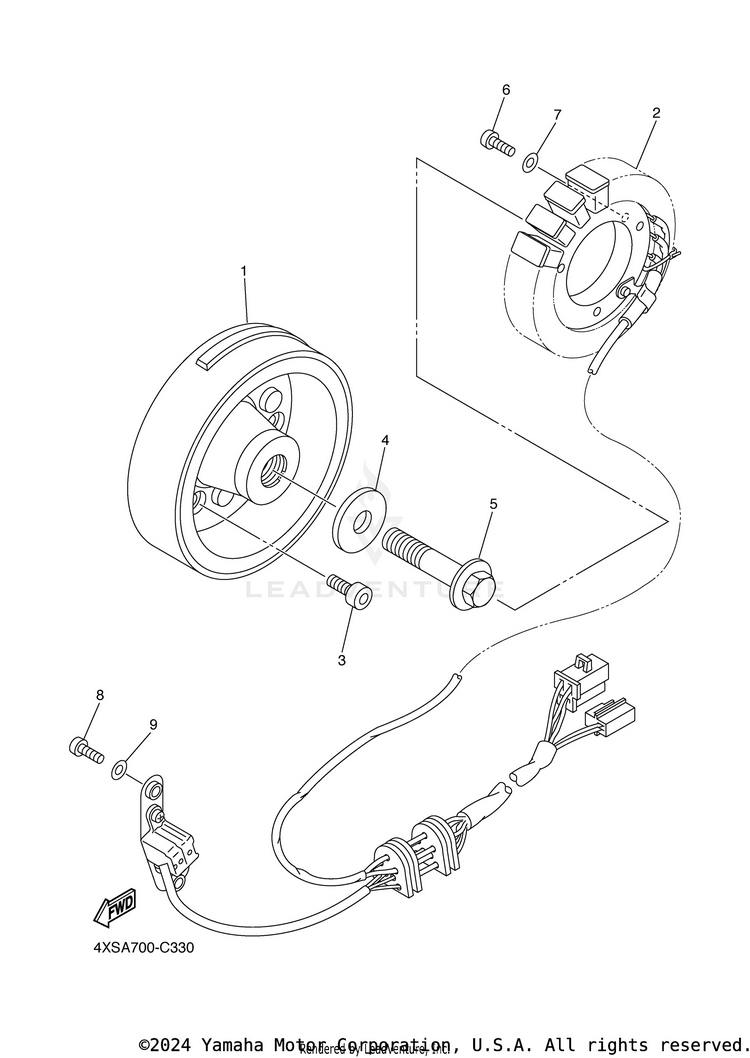

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
14VR-81450-02-00

(replaces part #
4VR-81450-01-00)

ROTOR ASSY$350.99$290.02Usually ships in 7-10 business days
25SC-81410-03-00

(replaces part #
5SC-81410-01-00)

STATOR ASSY$389.99$304.19Usually ships in 7-10 business days
391317-08020-00

(replaces part #
90110-08212-00)

BOLT, HEX. SOCKET HEAD$3.05$2.6210+ In-Stock
490201-107K6-00

(replaces part #
90201-107E9-00)

WASHER, PLATE$13.49$11.06Usually ships in 7-10 business days
590105-10152-00BOLT, FLANGE$12.49$10.24Usually ships in 7-10 business days
698517-06030-00

(replaces part #
98507-06030-00)

SCREW, PAN HEAD$3.45$2.97
792907-06600-00WASHER, PLATE$1.00$0.9910+ In-Stock
898517-06020-00

(replaces part #
98507-06020-00)

SCREW,PAN HEAD$2.35$2.0210+ In-Stock
992907-06600-00WASHER, PLATE$1.00$0.9910+ In-Stock
