2009 Yamaha V-Star Classic XVS1100A Headlight OEM Parts Diagram

Submodel V STAR 1100 CLASSIC - XVS11AWYCG - 2009

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

HEADLIGHT

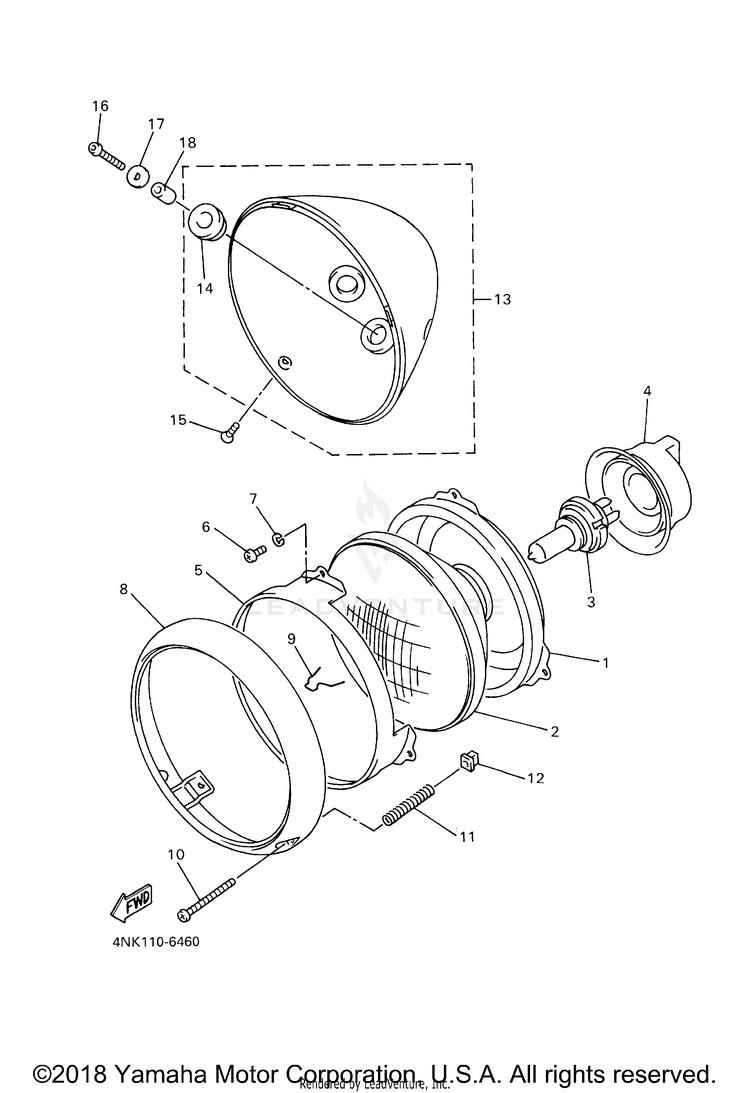

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
14NK-84394-00-00RING, MOUNTING$95.99$74.87Usually ships in 7-10 business days
24NK-84320-00-00LENS ASSY$234.99$183.29Usually ships in 7-10 business days
38V0-84314-10-00

(replaces part #
5V2-84314-00-XX)

BULB, HEADLIGHT (12V-60/55W) | (H4) HALOGEN$75.99$60.93Usually ships in 7-10 business days
43SX-84397-00-00COVER, SOCKET$32.99$27.05Usually ships in 7-10 business days
52F9-84395-00-00RING, RETAINING$63.99$49.91Usually ships in 7-10 business days
698580-04008-00

(replaces part #
98502-04008-00)

SCREW, PAN HEAD$6.49$5.0610+ In-Stock
792990-04100-00

(replaces part #
92902-04100-00)

WASHER, SPRING-$1.0210+ In-Stock
84NK-84315-00-00RIM, HEADLIGHT$170.99$133.37Usually ships in 7-10 business days
9290-84124-21-00SPRING, SET$8.49$7.64Usually ships in 7-10 business days
1090157-04001-00

(replaces part #
341-84331-60-00)

SCREW, ADJUSTING$9.49$7.404 In-Stock
11341-84332-60-00

(replaces part #
5G2-84332-60-00)

SPRING, SCREW$10.99$8.576 In-Stock
12198-84334-60-00NUT, ADJUSTING$8.49$6.625 In-Stock
135KS-84330-00-00BODY ASSY$293.99$229.31Usually ships in 7-10 business days
1442X-84366-00-00DAMPER, HEADLIGHT 1$22.99$18.85Usually ships in 7-10 business days
1598704-05012-00SCREW, FLAT HEAD$4.10$3.69Usually ships in 7-10 business days
1692017-06025-00BOLT, BUTTON HEAD$10.49$8.187 In-Stock
1790201-06086-00

(replaces part #
90201-060A3-00)

WASHER, PLATE$8.49$7.0110+ In-Stock
1890387-0610J-00COLLAR$9.49$8.54Usually ships in 7-10 business days
