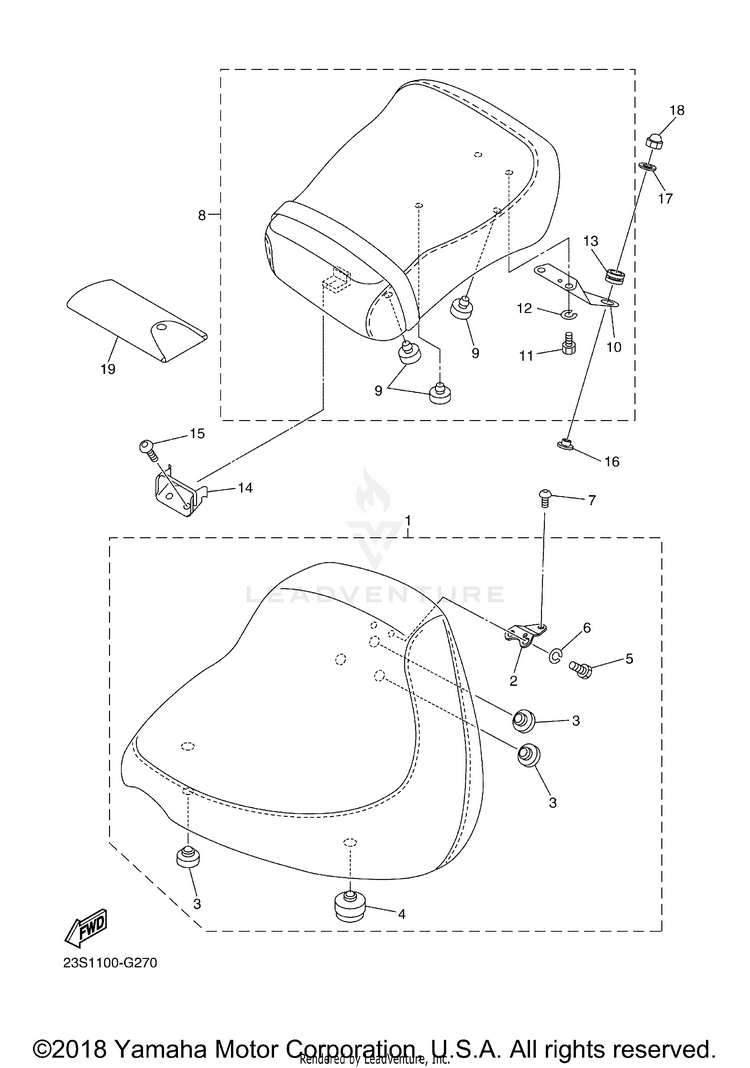

2009 Yamaha V-Star Classic XVS1100A Seat OEM Parts Diagram

Tag	Part #	Description	MSRP	Our Price	Stock Status
1	5KS-24710-00-00	SINGLE SEAT ASSY	$450.99	$374.92	Usually ships in 7-10 business days
2	5KS-2475H-00-00	BRACKET, SEAT LEVER 1	$31.99	$26.23	Usually ships in 7-10 business days
3	22W-24741-00-00	PAD, SEAT	$9.49	$7.40	10+ In-Stock
4	1T4-24741-00-00	PAD, SEAT	$8.49	$7.64	Usually ships in 7-10 business days
5	97017-06012-00 (replaces part # 97007-06012-00)	BOLT	$4.05	$3.48	10+ In-Stock
6	92907-06100-00	WASHER, SPRING	$1.30	$1.12	10+ In-Stock
7	92014-08012-00	BOLT, BUTTON HEAD	$10.49	$8.60	4 In-Stock
8	5KS-24750-31-00	TANDEM SEAT ASSY	$199.99	$155.99	Usually ships in 7-10 business days
9	22W-24741-00-00	PAD, SEAT	$9.49	$7.40	10+ In-Stock
10	5YS-2475J-00-00	BRACKET, SEAT LEVER 2	$27.99	$22.95	Usually ships in 7-10 business days
11	97017-06012-00 (replaces part # 97007-06012-00)	BOLT	$4.05	$3.48	10+ In-Stock
12	92907-06100-00	WASHER, SPRING	$1.30	$1.12	10+ In-Stock
13	5YS-24742-00-00	GROMMET	$2.50	$2.15	1 In-Stock
14	5KS-2475N-00-00	BRACKET	$63.99	$49.91	Usually ships in 7-10 business days
15	92017-06016-00	BOLT, HEX. SOCKET BUTTON	$9.49	$7.40	10+ In-Stock
16	5YS-2471N-00-00	COLLAR 1	$11.99	$9.83	1 In-Stock
17	90201-08042-00	WASHER, PLATE	$9.49	$8.54	1 In-Stock
18	90176-08002-00	NUT, CROWN	$9.49	$8.54	Usually ships in 7-10 business days
19	5EL-28100-10-00	TOOL KIT	$182.99	$142.73	Usually ships in 7-10 business days
