2009 Yamaha V-Star Midnight Custom XVS1100M Crankshaft Piston OEM Parts Diagram

Submodel V STAR 1100 MIDNIGHT CUSTOM - XVS11YCB - 2009

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

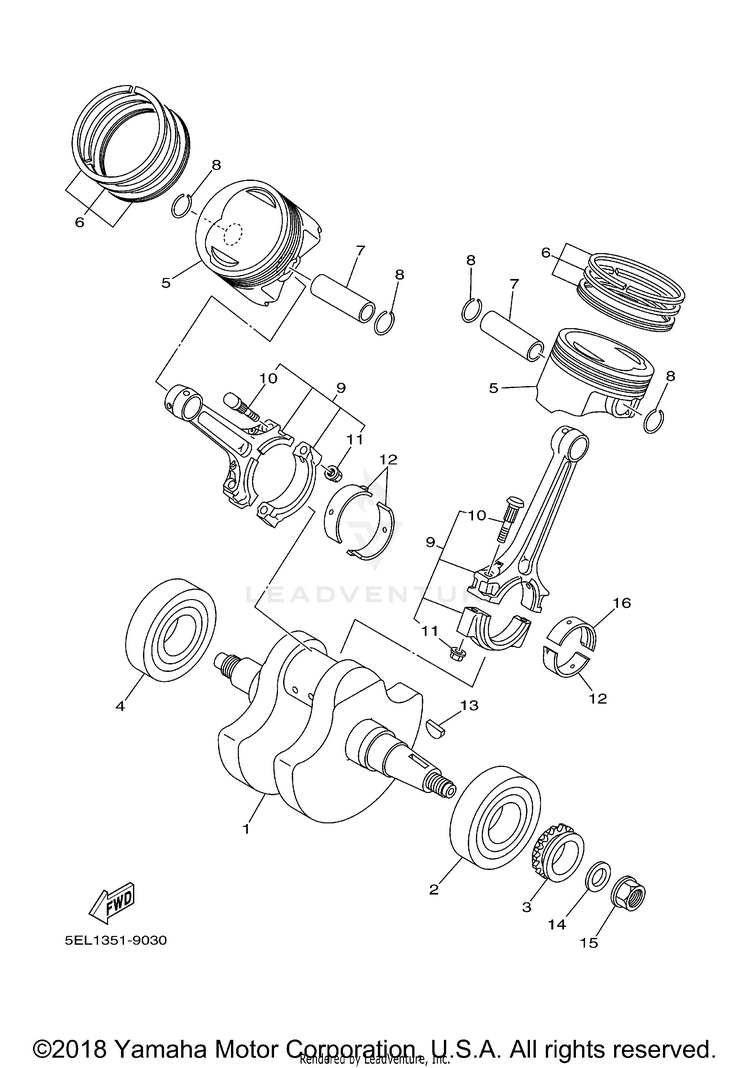

CRANKSHAFT PISTON

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
15EL-11411-10-00CRANKSHAFT$733.99$639.90Usually ships in 7-10 business days
293306-30808-00BEARING$191.99$149.75Usually ships in 7-10 business days
34X7-13354-00-00SPROCKET, DRIVE$82.99$64.73Usually ships in 7-10 business days
493306-30808-00BEARING$191.99$149.75Usually ships in 7-10 business days
55EL-11631-10-00PISTON (STD)$182.99$142.73Usually ships in 7-10 business days
61TA-11610-00-00PISTON RING SET (STD)$87.99$68.63Usually ships in 7-10 business days
74WM-11633-00-00PIN, PISTON$44.99$36.89Usually ships in 7-10 business days
893450-24028-00CIRCLIP$6.49$5.0610+ In-Stock
95EL-11650-10-00CONNECTING ROD ASSY$198.99$157.20Usually ships in 7-10 business days
104X7-11654-01-00BOLT, CONNECTING ROD$7.99$7.19Usually ships in 7-10 business days
1190179-09379-00NUT$9.49$8.542 In-Stock
124X7-11656-10-00PLANE BEARING, CONNECTING ROD | UR BLACK$35.99$29.51Usually ships in 7-10 business days
124X7-11656-40-00PLANE BEARING, CONNECTING ROD | UR YELLOW$25.99$22.50Usually ships in 7-10 business days
124X7-11656-00-00PLANE BEARING, CONNECTING ROD | UR BLUE$35.99$29.51Usually ships in 7-10 business days
124X7-11656-20-00PLANE BEARING, CONNECTING ROD | UR BROWN$35.99$29.51Usually ships in 7-10 business days
124X7-11656-30-00PLANE BEARING, CONNECTING ROD | UR GREEN$34.99$28.69Usually ships in 7-10 business days
1390280-05001-00

(replaces part #
90280-05048-00)

KEY, WOODRUFF$13.49$10.5210+ In-Stock
1490201-165H4-00WASHER, PLATE$10.49$8.183 In-Stock
1590179-16448-00NUT$32.99$27.05Usually ships in 7-10 business days
165G5-11656-20-00PLANE BEARING, CONNECTING ROD | UR GREEN$39.99$32.79Usually ships in 7-10 business days
165G5-11656-10-00PLANE BEARING, CONNECTING ROD | UR BROWN$42.99$35.25Usually ships in 7-10 business days
165G5-11656-00-00PLANE BEARING, CONNECTING ROD | UR BLACK$39.99$32.79Usually ships in 7-10 business days
