2009 Yamaha V-Star XVS950 Front Wheel OEM Parts Diagram

Submodel V STAR 950 - XVS95YCR - 2009

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

FRONT WHEEL

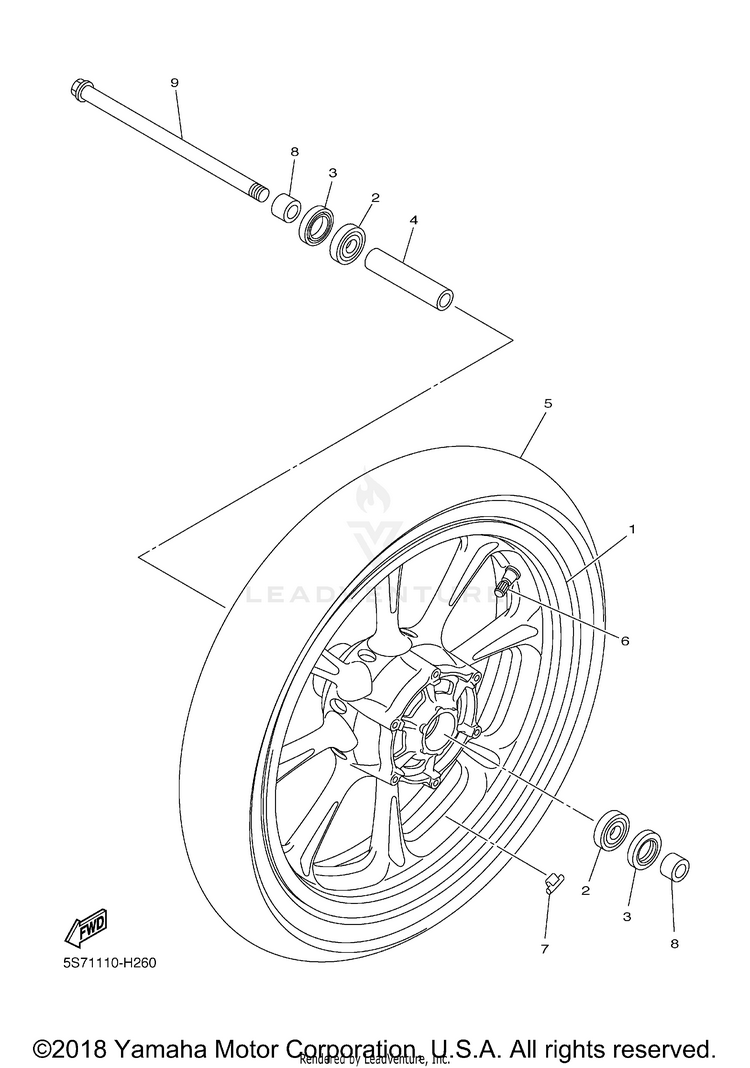

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
15S7-25168-01-00

(replaces part #
5S7-25168-00-98)

CAST WHEEL, FRONT | LGB$831.99$674.54Usually ships in 7-10 business days
293306-30317-00BEARING$43.99$34.3110+ In-Stock
393102-28022-00OIL SEAL$16.49$12.8610+ In-Stock
490387-173M5-00COLLAR$33.99$27.87Usually ships in 7-10 business days
594113-18025-00TIRE (130/70-18 M/C 63H EXEDRA) | UR BRIDGESTONE$310.99$276.67Usually ships in 7-10 business days
594113-18027-00TIRE (130/70-18 M/C 63H D404F) | UR DUNLOP$185.99$145.07Usually ships in 7-10 business days
693900-00030-00VALVE, RIM (TR412) | TAIHEIYO$18.49$14.425 In-Stock
75MT-25398-20-00BALANCER, WHEEL (30G) | UN$46.99$38.53Usually ships in 7-10 business days
75MT-25398-00-00BALANCER, WHEEL (10G) | UN$18.99$15.574 In-Stock
75MT-25398-10-00BALANCER, WHEEL (20G) | UN$18.99$15.57Usually ships in 7-10 business days
890387-173R6-00COLLAR$33.99$27.87Usually ships in 7-10 business days
95KS-25181-00-00AXLE, WHEEL$79.99$62.39Usually ships in 7-10 business days
