2009 Yamaha V-Star XVS950 Steering OEM Parts Diagram

Submodel V STAR 950 - XVS95YCB - 2009

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

STEERING

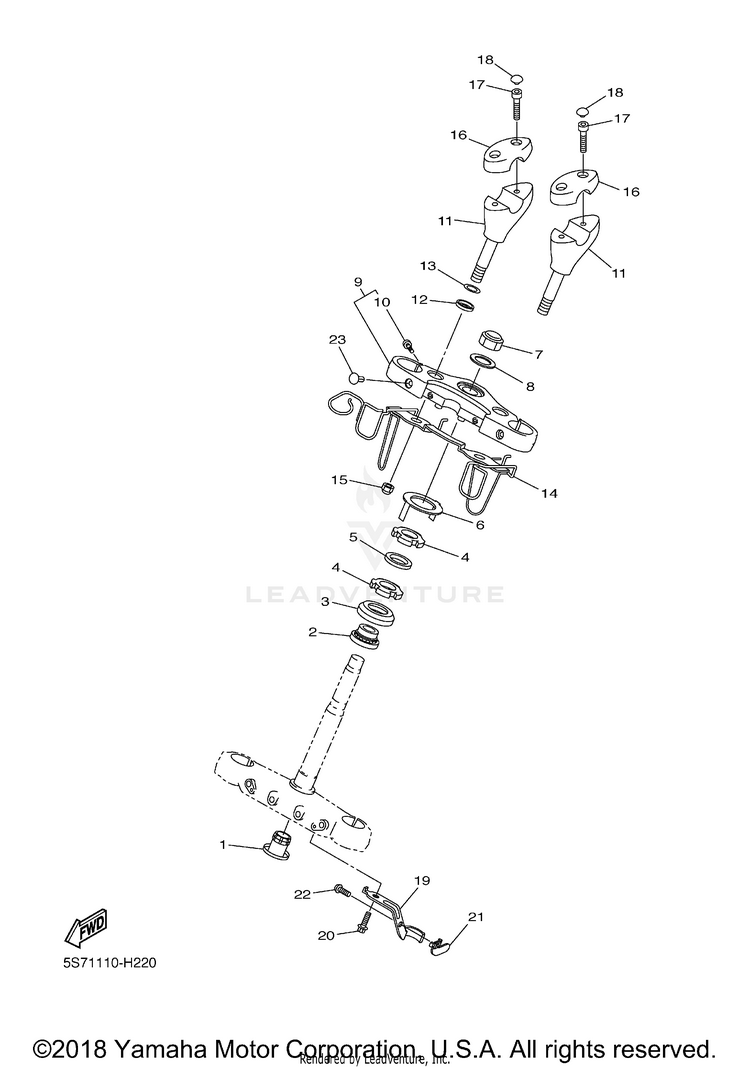

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
14KM-23123-01-00COVER, LOWER 1$15.49$12.70Usually ships in 7-10 business days
293399-99931-00BEARING$62.99$49.13Usually ships in 7-10 business days
31W1-23416-00-00COVER, BALL RACE 2$32.99$25.736 In-Stock
490179-25004-00

(replaces part #
90179-25033-00)

NUT$26.99$21.055 In-Stock
590202-26142-00WASHER, PLATE$10.49$8.187 In-Stock
626H-23418-01-00WASHER, SPECIAL$15.49$12.702 In-Stock
790176-22002-00NUT, CROWN$37.99$31.15Usually ships in 7-10 business days
890201-22018-00

(replaces part #
90201-220T0-00)

WASHER, PLATE$6.49$5.068 In-Stock
93D8-Y2343-01-00

(replaces part #
3D8-Y2343-00-00)

CROWN, HANDLE$398.99$311.21Usually ships in 7-10 business days
1091314-08030-00BOLT, HEXAGON SOCKET HEAD$2.55$2.199 In-Stock
115PX-23442-01-00

(replaces part #
5PX-23442-00-00)

HOLDER, HANDLE LOWER$126.99$99.05Usually ships in 7-10 business days
123DM-23445-00-00DAMPER$8.49$6.621 In-Stock
1390201-14220-00WASHER, PLATE$9.49$7.4010+ In-Stock
145S7-23389-00-00GUIDE, CABLE$82.99$64.73Usually ships in 7-10 business days
1590176-12052-00NUT, CROWN$13.49$11.06Usually ships in 7-10 business days
164NK-23441-00-00HOLDER, HANDLE UPPER$73.99$57.71Usually ships in 7-10 business days
1791314-08025-00BOLT, HEXAGON SOCKET HEAD$9.49$8.542 In-Stock
1890338-08163-00PLUG (CROME)$3.75$3.2210+ In-Stock
193D8-25886-00-00HOLDER, BRAKE HOSE$13.49$11.06Usually ships in 7-10 business days
2090105-06136-00

(replaces part #
90105-06135-00)

BOLT, FLANGE$2.55$2.30Usually ships in 7-10 business days
213D8-25887-00-00HOLDER, BRAKE HOSE$7.49$6.74Usually ships in 7-10 business days
2290111-06031-00

(replaces part #
90111-06016-00)

BOLT, HEX. SOCKET BUTTON$9.49$8.545 In-Stock
234WM-23497-00-00GROMMET$17.49$14.34Usually ships in 7-10 business days
