2009 Yamaha WOLVERINE 450 4X4 Headlight OEM Parts Diagram

Submodel WOLVERINE 450 4WD - YFM45FXYL - 2009

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

HEADLIGHT

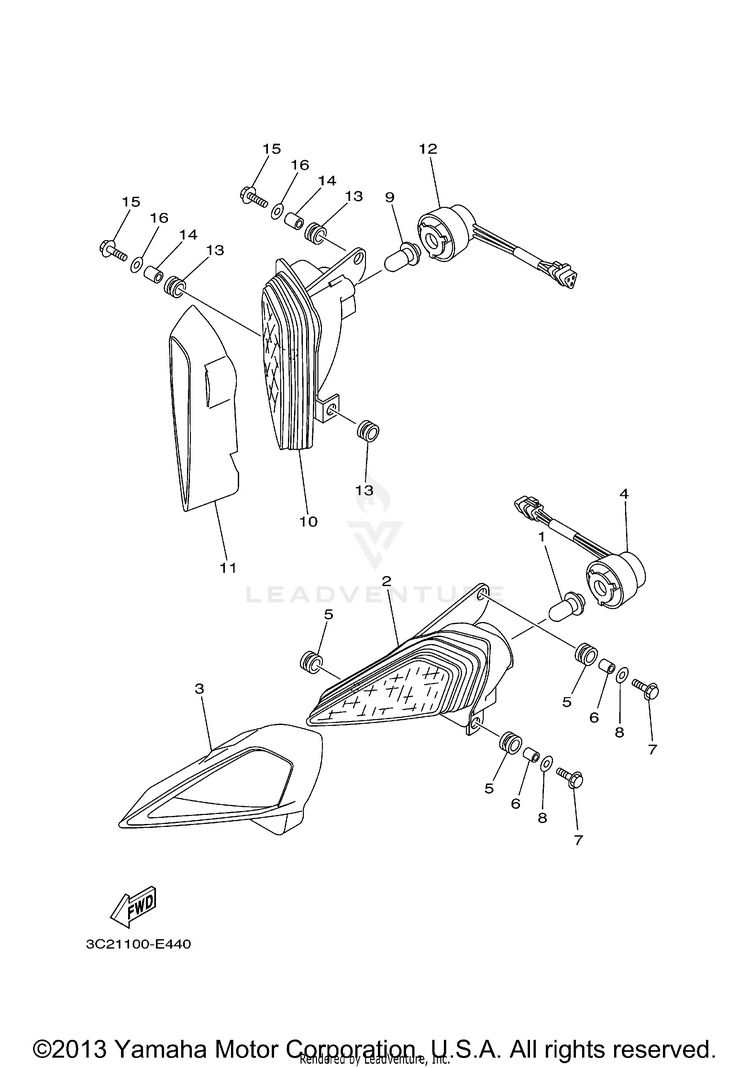

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
14KB-84314-01-00BULB (12V-30/30W)$42.99$33.5310+ In-Stock
25TG-84110-03-00HEADLIGHT UNIT ASSY$115.99$90.478 In-Stock
35TG-84165-01-00RIM, HEADLIGHT COVER 1$17.99$16.033 In-Stock
45TG-84140-01-00SOCKET CORD ASSY$45.99$35.874 In-Stock
590480-14023-00

(replaces part #
90480-14102-00)

GROMMET$8.49$6.6210+ In-Stock
690387-07598-00COLLAR$6.49$5.0610+ In-Stock
790101-06053-00BOLT$8.49$7.645 In-Stock
890201-06078-00WASHER, PLATE$6.49$5.0610+ In-Stock
94KB-84314-01-00BULB (12V-30/30W)$42.99$33.5310+ In-Stock
105TG-84310-03-00HEADLIGHT UNIT ASSY$115.99$90.472 In-Stock
115TG-84166-01-00RIM, HEADLIGHT COVER 2$15.49$12.085 In-Stock
125TG-84340-01-00SOCKET CORD ASSY 1$53.99$42.112 In-Stock
1390480-14023-00

(replaces part #
90480-14102-00)

GROMMET$8.49$6.6210+ In-Stock
1490387-07598-00COLLAR$6.49$5.0610+ In-Stock
1590101-06053-00BOLT$8.49$7.645 In-Stock
1690201-06078-00WASHER, PLATE$6.49$5.0610+ In-Stock
