2010 Yamaha FJR1300A Cylinder OEM Parts Diagram

Submodel FJR1300A - FJR13AZCS - 2010

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

CYLINDER

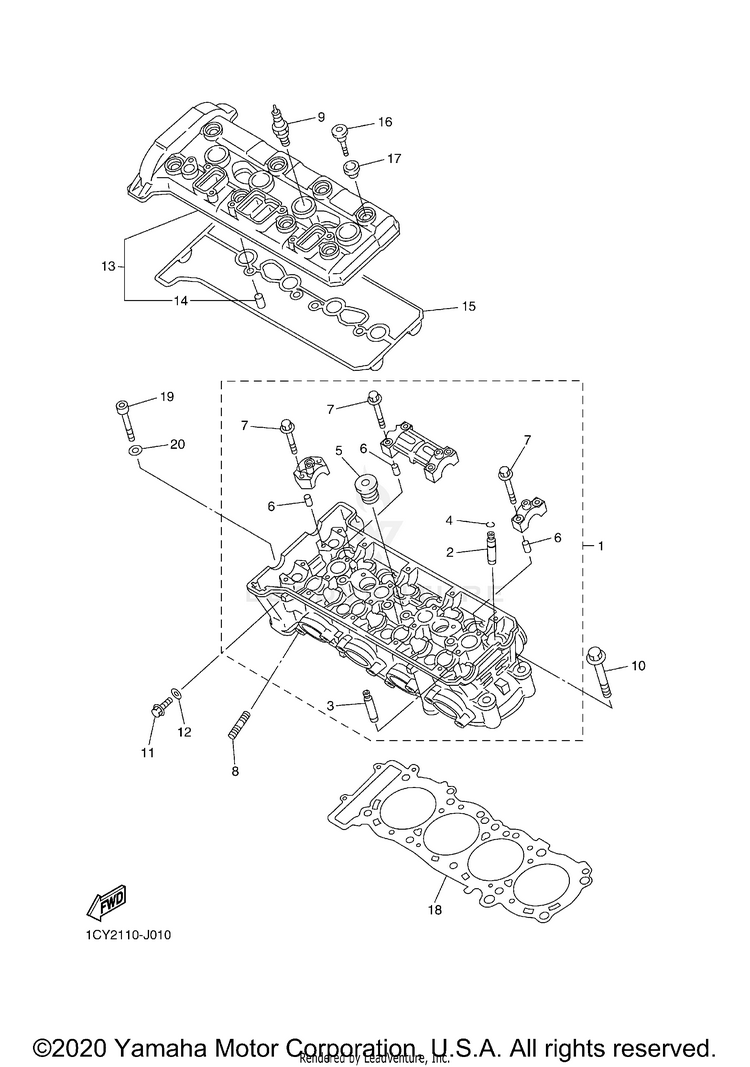

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
15JW-11102-10-00CYLINDER HEAD ASSY$1,896.99$1,659.30Usually ships in 7-10 business days
25JW-11133-10-00GUIDE, VALVE 1$49.99$40.99Usually ships in 7-10 business days
33P6-11134-10-00GUIDE, VALVE 2$74.99$58.49Usually ships in 7-10 business days
493440-09141-00CIRCLIP$2.45$2.1110+ In-Stock
590340-27001-00PLUG, STRAIGHT SCREW$20.99$17.21Usually ships in 7-10 business days
691808-16023-00PIN, DOWEL$7.99$6.2310+ In-Stock
790105-06026-00BOLT, FLANGE$6.99$6.29Not Shipping
895612-08620-00BOLT, STUD$8.49$6.629 In-Stock
9CR8-E0000-00-00

(replaces part #
NGK-CR8E0-00-00)

PLUG, SPARK (NGK CR8E) | UR$10.49$8.1810+ In-Stock
1090119-10004-00BOLT, WITH WASHER$9.99$7.7910+ In-Stock
1195022-08012-00BOLT, FLANGE$13.49$10.524 In-Stock
1290430-08119-00GASKET$7.49$5.848 In-Stock
133P6-11190-00-00COVER, CYLINDER HEAD 1$195.99$152.87Usually ships in 7-10 business days
1491810-20001-00PIN, DOWEL$2.55$2.196 In-Stock
155JW-11193-00-00GASKET, HEAD COVER 1$66.99$52.252 In-Stock
1690109-066F0-00BOLT$9.49$7.4010+ In-Stock
175VY-1111G-00-00RUBBER, MOUNT 1$13.49$10.5210+ In-Stock
185JW-11181-00-00GASKET, CYLINDER HEAD 1$100.99$78.77Usually ships in 7-10 business days
1991317-06065-00

(replaces part #
91312-06065-00)

BOLT$4.05$3.4810+ In-Stock
