2010 Yamaha RAPTOR 90 Valve OEM Parts Diagram

Submodel RAPTOR 90 - YFM90RZW - 2010

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

VALVE

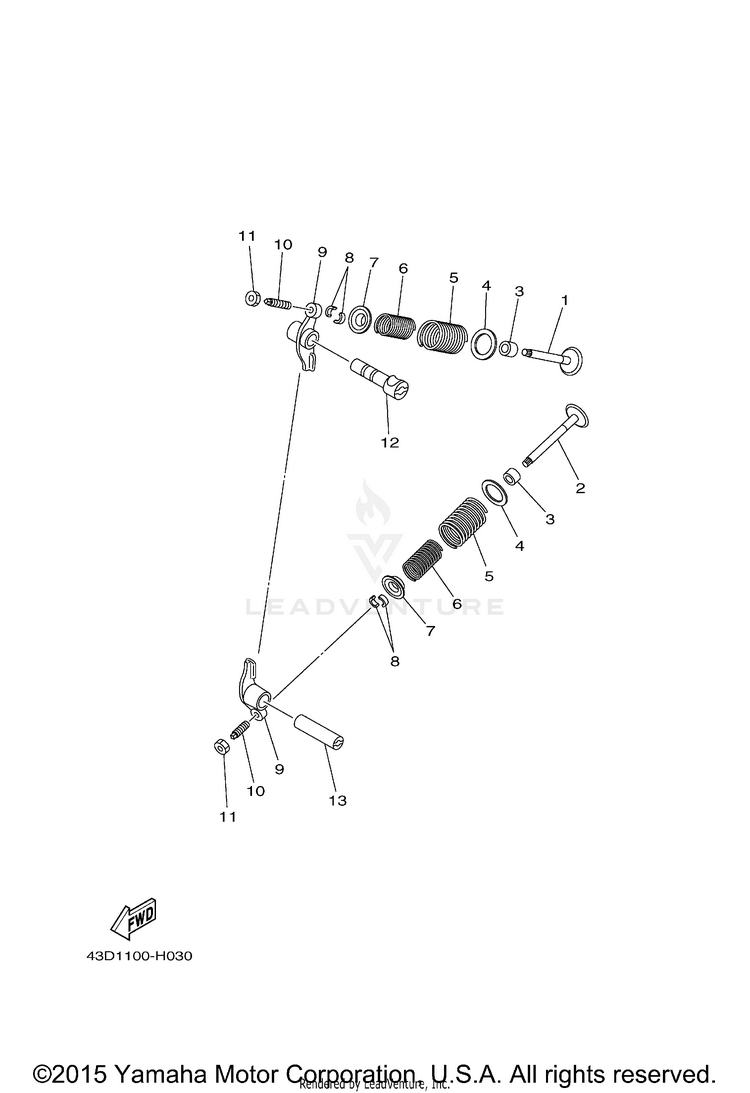

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
143D-12111-09-00

(replaces part #
43D-E2111-00-00)

VALVE, INTAKE$86.99$67.85Usually ships in 7-10 business days
243D-12121-09-00

(replaces part #
43D-E2121-00-00)

VALVE, EXHAUST$102.99$80.33Usually ships in 7-10 business days
343D-E2119-00-00SEAL, VALVE STEM$6.99$6.29Not Shipping
443D-E3578-00-00WASHER$4.40$3.96Usually ships in 7-10 business days
543D-E2114-00-00SPRING, VALVE OUTER$10.49$8.60Usually ships in 7-10 business days
643D-E2113-00-00SPRING, VALVE INNER$6.49$5.84Usually ships in 7-10 business days
743D-E2117-00-00RETAINER, VALVE SPRING$10.49$8.60Usually ships in 7-10 business days
843D-E2118-00-00COTTER, VALVE$5.49$4.94Usually ships in 7-10 business days
943D-E2151-00-00ARM, VALVE ROCKER$49.99$40.99Usually ships in 7-10 business days
1043D-E2159-00-00SCREW, VALVE ADJUSTING$6.99$6.29Usually ships in 7-10 business days
1195317-05600-00

(replaces part #
95307-05600-00)

NUT$2.50$2.153 In-Stock
1243D-E2146-00-00SHAFT, ROCKER$25.99$21.31Usually ships in 7-10 business days
1343D-E2156-00-00SHAFT, ROCKER 2$13.49$11.06Usually ships in 7-10 business days
