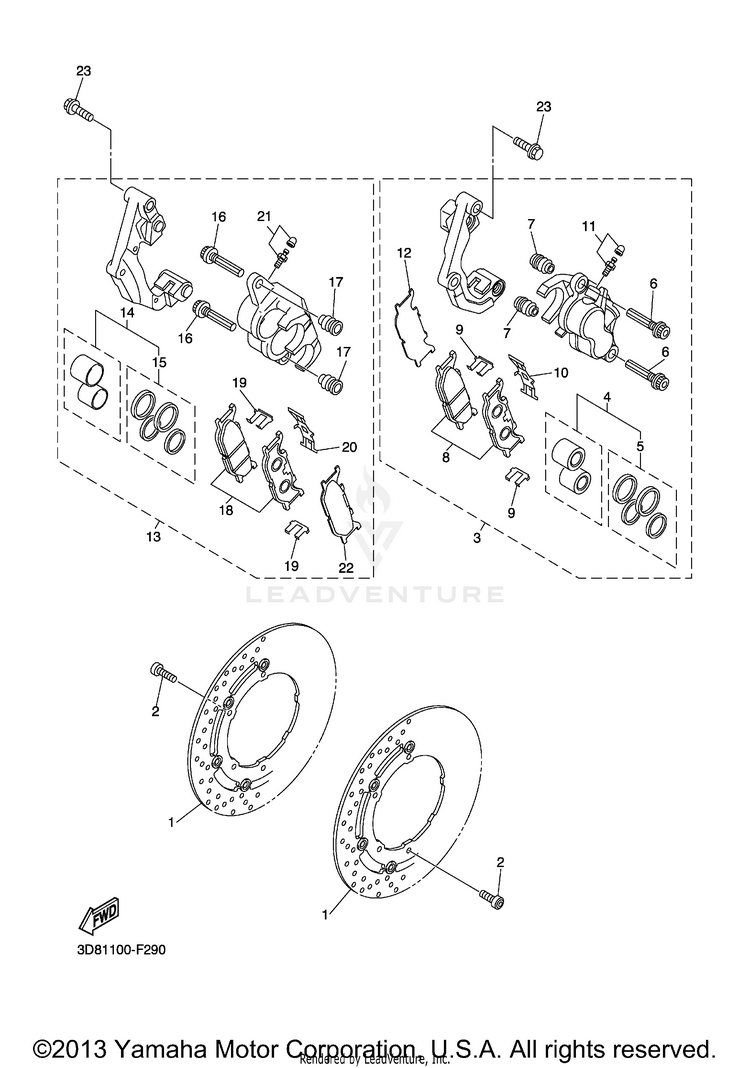

FRONT BRAKE CALIPER

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
13D8-2581T-10-00DISK BRAKE ASSY$271.99$212.15Usually ships in 7-10 business days
290111-08057-00

(replaces part #
90109-083G4-00)

BOLT$2.50$2.1510+ In-Stock
33D8-2580T-00-00CALIPER ASSY (LEFT)$353.99$294.23Usually ships in 7-10 business days
45KS-25802-00-00

(replaces part #
5KS-W0057-00-00)

PISTON ASSY, CALIPER$75.99$59.27Usually ships in 7-10 business days
54HC-25803-50-00

(replaces part #
4FU-W0047-00-00)

CALIPER SEAL KIT$66.99$52.25Usually ships in 7-10 business days
65JW-25914-10-00PIN, SLIDE$24.99$19.495 In-Stock
74TT-25937-00-00BOOT 2$17.99$14.75Usually ships in 7-10 business days
85VU-25805-00-00

(replaces part #
1B7-W0045-00-00)

BRAKE PAD KIT$48.99$39.064 In-Stock
94BP-25919-00-00SUPPORT, PAD$48.99$40.17Usually ships in 7-10 business days
103YX-25929-00-00SPRING, ANTI RATTLE$35.99$29.51Usually ships in 7-10 business days
1115B-W0048-00-00

(replaces part #
51L-W0048-00-00)

BLEED SCREW KIT$21.99$17.157 In-Stock
125VU-25827-00-00SHIM, CALIPER$15.49$12.70Usually ships in 7-10 business days
133D8-2580U-00-00CALIPER ASSY (RIGHT)$353.99$294.23Usually ships in 7-10 business days
145KS-25802-00-00

(replaces part #
5KS-W0057-00-00)

PISTON ASSY, CALIPER$75.99$59.27Usually ships in 7-10 business days
154HC-25803-50-00

(replaces part #
4FU-W0047-00-00)

CALIPER SEAL KIT$66.99$52.25Usually ships in 7-10 business days
165JW-25914-10-00PIN, SLIDE$24.99$19.495 In-Stock
174TT-25937-00-00BOOT 2$17.99$14.75Usually ships in 7-10 business days
185VU-25805-00-00

(replaces part #
1B7-W0045-00-00)

BRAKE PAD KIT$48.99$39.064 In-Stock
194BP-25919-00-00SUPPORT, PAD$48.99$40.17Usually ships in 7-10 business days
203YX-25929-00-00SPRING, ANTI RATTLE$35.99$29.51Usually ships in 7-10 business days
2115B-W0048-00-00

(replaces part #
51L-W0048-00-00)

BLEED SCREW KIT$21.99$17.157 In-Stock
225VU-25827-00-00SHIM, CALIPER$15.49$12.70Usually ships in 7-10 business days
2390105-10638-00BOLT, WASHER BASED$8.49$6.6210+ In-Stock
