2010 Yamaha WR250X Fender OEM Parts Diagram

Submodel WR250X - WR25XZCW - 2010

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

FENDER

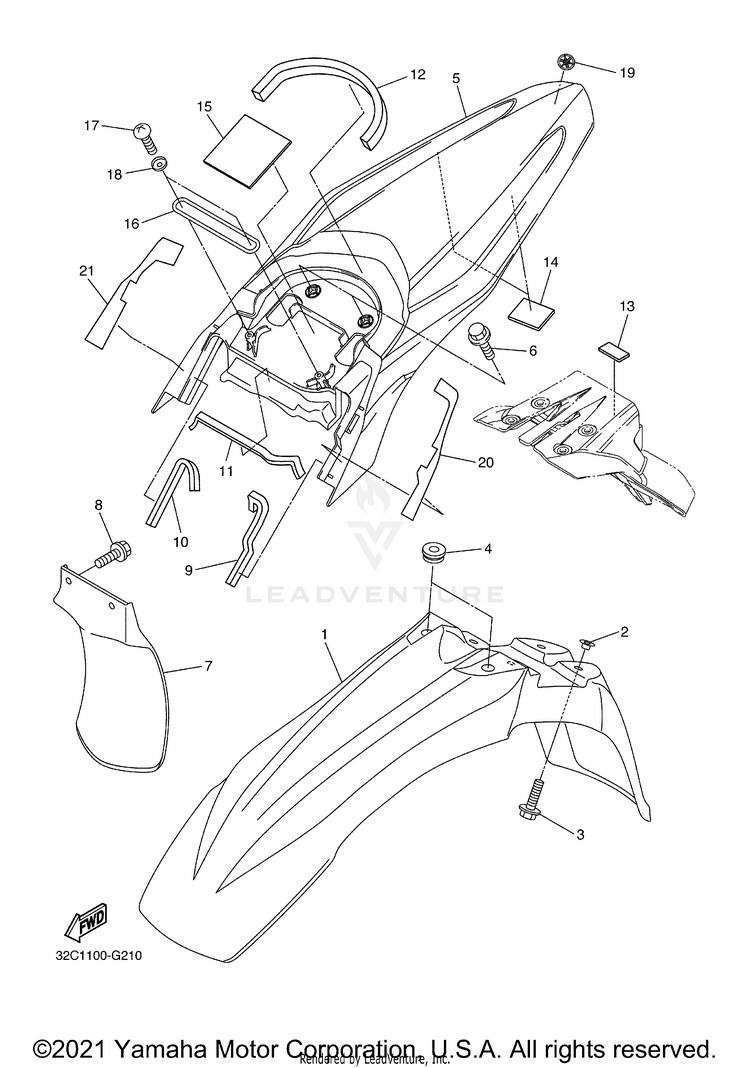

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
13D7-21511-10-00FENDER, FRONT$41.99$32.753 In-Stock
290387-06681-00COLLAR$10.49$8.1810+ In-Stock
390119-06147-00BOLT, WITH WASHER-$1.3310+ In-Stock
490480-13014-00

(replaces part #
90480-13398-00)

GROMMET$9.49$7.4010+ In-Stock
53D7-21611-10-00FENDER, REAR$68.99$53.812 In-Stock
690119-06114-00BOLT, WITH WASHER$9.49$7.404 In-Stock
73D7-21642-00-00GUARD, FLAP$31.99$24.9510+ In-Stock
890119-06137-00BOLT, WITH WASHER$9.49$7.406 In-Stock
93D7-21638-00-00DAMPER 1$5.99$4.672 In-Stock
103D7-21638-10-00DAMPER 1$5.99$4.672 In-Stock
113D7-21639-00-00DAMPER 2$5.99$4.671 In-Stock
123D7-21639-10-00DAMPER 2$4.70$4.044 In-Stock
133D7-21649-00-00DAMPER$8.49$7.64Usually ships in 7-10 business days
143D7-21649-10-00DAMPER$5.99$4.676 In-Stock
153D7-2174T-00-00INSULATOR, SIDE COVER 2$7.49$5.842 In-Stock
1693210-63003-00O-RING$8.49$6.622 In-Stock
1797707-50014-00

(replaces part #
97702-50014-00)

SCREW, TRUSS HEAD TAPPING$9.49$7.4010+ In-Stock
1890209-05008-00WASHER$5.49$4.284 In-Stock
193C5-2411B-00-00EMBLEM$7.49$5.842 In-Stock
203D7-216A2-00-00SEAL, 2$15.49$12.082 In-Stock
213D7-216A3-00-00SEAL, 3$15.49$12.082 In-Stock
