2010 Yamaha XT250 Side Cover OEM Parts Diagram

Submodel XT250 - XT250ZC - 2010

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

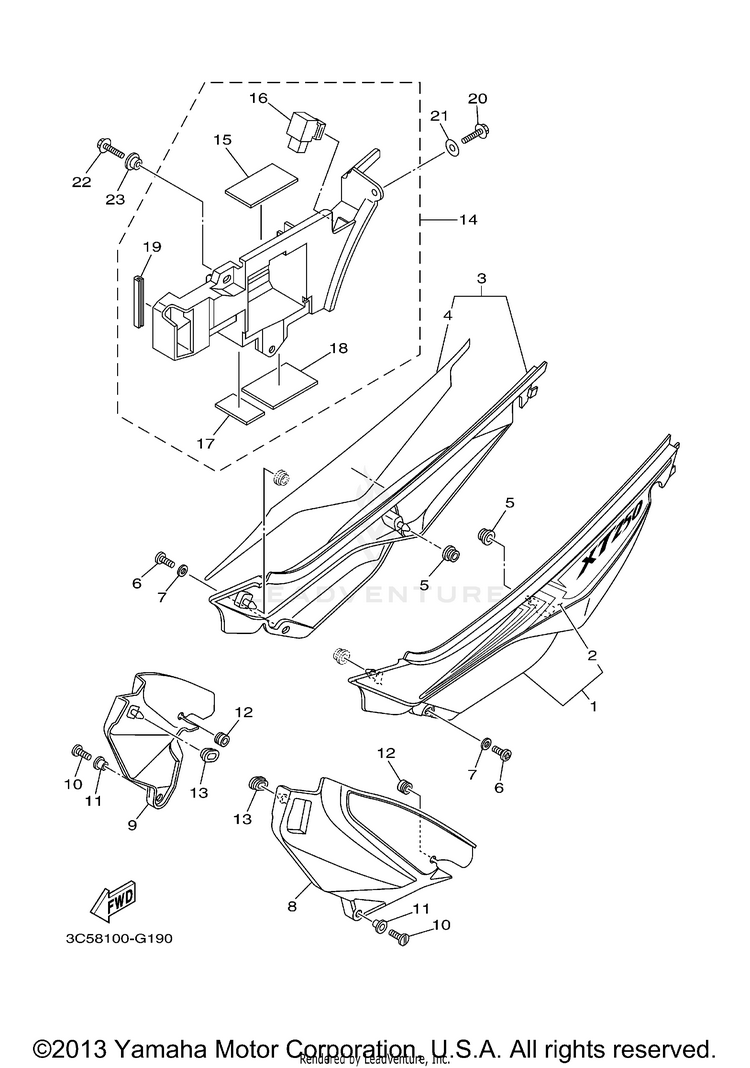

SIDE COVER

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
13C5-Y2171-G0-00COVER, SIDE 1$117.99$92.03Usually ships in 7-10 business days
23C5-2173E-C0-00GRAPHIC, 1$59.99$46.79Usually ships in 7-10 business days
33C5-Y2172-G0-00COVER, SIDE 2$117.99$92.03Usually ships in 7-10 business days
43C5-2173F-C0-00GRAPHIC, 2$58.99$46.01Usually ships in 7-10 business days
590480-01558-00GROMMET$4.65$4.0010+ In-Stock
690149-06298-00SCREW$6.49$5.0610+ In-Stock
790201-06020-00

(replaces part #
90201-06058-00)

WASHER, PLATE$10.49$8.1810+ In-Stock
83C5-21731-00-00COVER, SIDE 3$15.49$12.70Usually ships in 7-10 business days
93C5-21741-00-00COVER, SIDE 4$16.49$13.52Usually ships in 7-10 business days
1090146-06014-00SCREW, OVAL FILLISTER$3.80$3.278 In-Stock
1190387-06048-00COLLAR$9.49$7.402 In-Stock
1290480-10334-00GROMMET$10.49$8.601 In-Stock
1390480-01401-00

(replaces part #
90480-01141-00)

GROMMET (41Y)$9.49$7.4010+ In-Stock
143C5-8210E-00-00BATTERY BOX ASSY$154.99$120.89Usually ships in 7-10 business days
155EJ-2414H-00-00DAMPER, PLATE 1$7.49$6.74Usually ships in 7-10 business days
164MY-83350-03-00

(replaces part #
4MY-83350-01-00)

FLASHER RELAY ASSY$56.99$44.454 In-Stock
175XT-21732-00-00SEAL 1$1.95$1.76Usually ships in 7-10 business days
185XT-21735-00-00SEAL 2$2.20$1.98Usually ships in 7-10 business days
1931A-24188-01-00MOLD, FUEL TANK$13.99$11.47Usually ships in 7-10 business days
2095817-06010-00

(replaces part #
90105-06057-00)

BOLT,FLANGE$5.49$4.2810+ In-Stock
2190201-06095-00

(replaces part #
90201-06063-00)

WASHER, PLATE$9.49$7.407 In-Stock
2295817-06014-00

(replaces part #
95807-06014-00)

BOLT, FLANGE-$2.8610+ In-Stock
2390387-06066-00COLLAR$9.49$7.404 In-Stock
