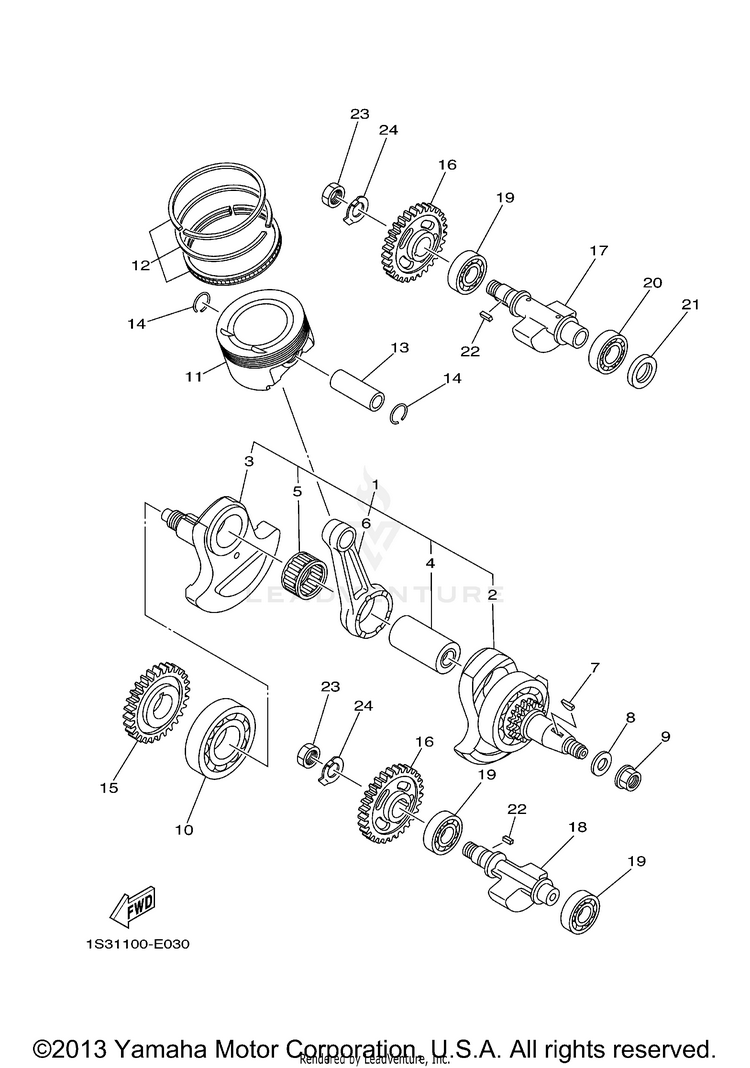

CRANKSHAFT PISTON

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
11PE-11400-01-00

(replaces part #
1S3-11400-00-00)

CRANKSHAFT ASSY$750.99$655.482 In-Stock
21S3-11401-09-00CRANK SUB ASSY 1$428.99$353.83Usually ships in 7-10 business days
31S3-11422-00-00CRANK 2$325.99$254.27Usually ships in 7-10 business days
41S3-11681-00-00PIN, CRANK 1$111.99$87.351 In-Stock
593310-84017-00BEARING$113.99$88.911 In-Stock
61S3-11651-00-00ROD, CONNECTING$164.99$128.69Usually ships in 7-10 business days
790280-05001-00KEY, WOODRUFF$13.49$10.5210+ In-Stock
890201-16013-00WASHER, PLATE$15.49$12.081 In-Stock
990179-16004-00NUT$17.49$13.646 In-Stock
1093306-30810-00BEARING$82.99$64.7310+ In-Stock
111S3-11631-10-00PISTON (STD)$182.99$142.736 In-Stock
121S3-11603-10-00PISTON RING SET (STD)$66.99$52.2510+ In-Stock
135VK-11633-00-00PIN, PISTON$45.99$35.8710+ In-Stock
1493450-24154-00CIRCLIP$3.40$2.9210+ In-Stock
151S3-11536-00-00GEAR, DRIVE$125.99$98.27Usually ships in 7-10 business days
161S3-11531-00-00GEAR, BALANCE WEIGHT$123.99$96.71Usually ships in 7-10 business days
171S3-11454-00-00WEIGHT 1$156.99$122.45Usually ships in 7-10 business days
181S3-11464-00-00WEIGHT 2$112.99$88.13Usually ships in 7-10 business days
1993306-20481-00BEARING$43.99$34.3110+ In-Stock
2093306-00519-00

(replaces part #
93306-00502-00)

BEARING$39.99$31.1910+ In-Stock
2193101-25106-00OIL SEAL$12.49$9.747 In-Stock
2290282-05005-00KEY, STRAIGHT$11.49$8.9610+ In-Stock
2390170-16326-00NUT$14.49$11.305 In-Stock
2490215-16221-00WASHER, LOCK$12.49$9.7410+ In-Stock
