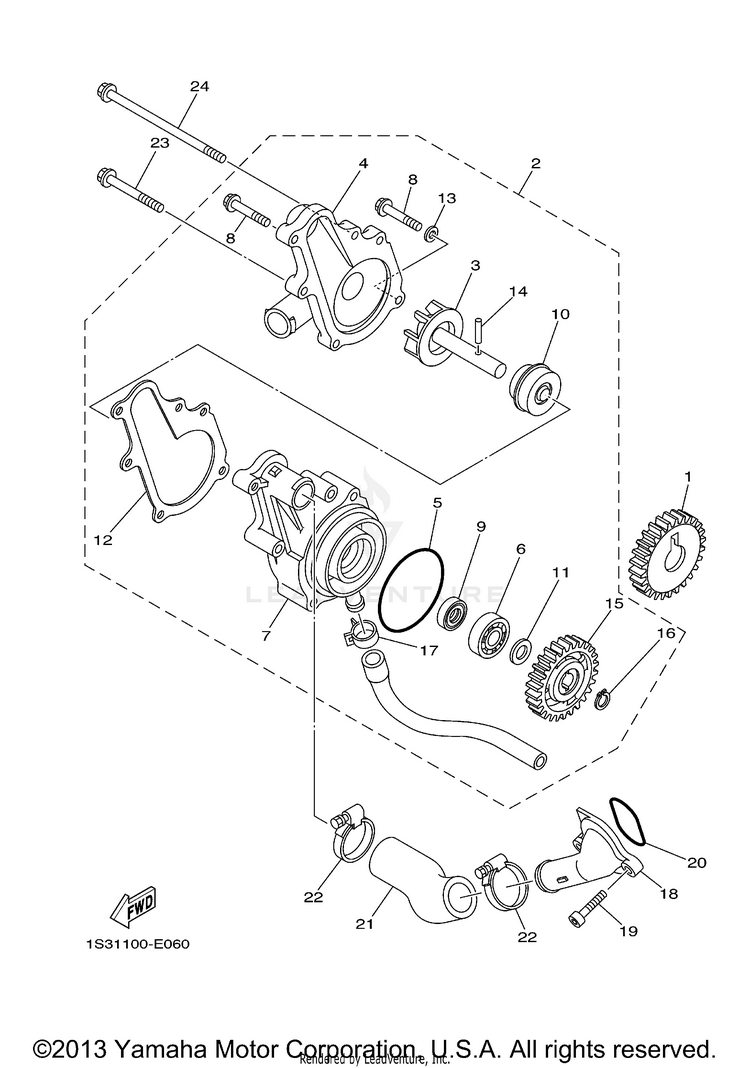

2011 Yamaha RAPTOR 700 Water Pump OEM Parts Diagram

Tag	Part #	Description	MSRP	Our Price	Stock Status
1	1S3-12436-00-00	GEAR, DRIVE	$58.99	$46.01	Usually ships in 7-10 business days
2	1S3-12420-00-00	WATER PUMP ASSY	$315.99	$246.47	5 In-Stock
3	1S3-12450-00-00	IMPELLER SHAFT ASSY	$62.99	$49.13	2 In-Stock
4	1S3-12422-00-00	COVER, HOUSING	$65.99	$51.47	Usually ships in 7-10 business days
5	93210-61750-00	O-RING	$9.49	$7.40	10+ In-Stock
6	93306-00105-00 (replaces part # 93306-00106-00)	BEARING	$33.99	$26.51	10+ In-Stock
7	1S3-12421-00-00	HOUSING, WATER PUMP	$81.99	$63.95	Usually ships in 7-10 business days
8	95022-06025-00	BOLT, FLANGE	$1.90	$1.63	10+ In-Stock
9	93101-12173-00	OIL SEAL	$14.49	$11.30	10+ In-Stock
10	4C8-12438-00-00	SEAL, MECHANICAL	$53.99	$42.11	10+ In-Stock
11	90201-12541-00	WASHER, PLATE	$8.49	$6.62	3 In-Stock
12	1S3-12428-00-00	GASKET, HOUSING COVER 2	$11.99	$9.35	2 In-Stock
13	90430-06014-00	GASKET	$8.99	$7.01	10+ In-Stock
14	93603-16219-00	PIN, DOWEL	$9.49	$7.40	10+ In-Stock
15	5VK-12459-00-00	GEAR, IMPELLER SHAFT	$47.99	$37.43	2 In-Stock
16	99009-12400-00	CIRCLIP	$3.59	$3.09	10+ In-Stock
17	90467-14117-00 (replaces part # 90467-13062-00)	CLIP(MG5)	$9.49	$7.40	6 In-Stock
18	1S3-12469-00-00	JOINT 1	$22.99	$18.85	1 In-Stock
19	91314-06020-00 (replaces part # 91312-06020-00)	BOLT, HEXAGON SOCKET HEAD	$2.65	$2.57	10+ In-Stock
20	93210-33006-00 (replaces part # 93210-33786-00)	O-RING	$5.49	$4.28	10+ In-Stock
21	1S3-12577-00-00	HOSE 2	$16.49	$12.86	3 In-Stock
22	90450-32015-00	HOSE CLAMP ASSY	$19.49	$15.20	10+ In-Stock
23	95022-06050-00	BOLT, FLANGE	$1.80	$1.55	6 In-Stock
24	95022-06110-00	BOLT, FLANGE	$4.70	$4.04	3 In-Stock
