2011 Yamaha RAPTOR 90 Frame OEM Parts Diagram

Submodel RAPTOR 90 - YFM90RAL - 2011

Shop Aftermarket Parts

FRAME

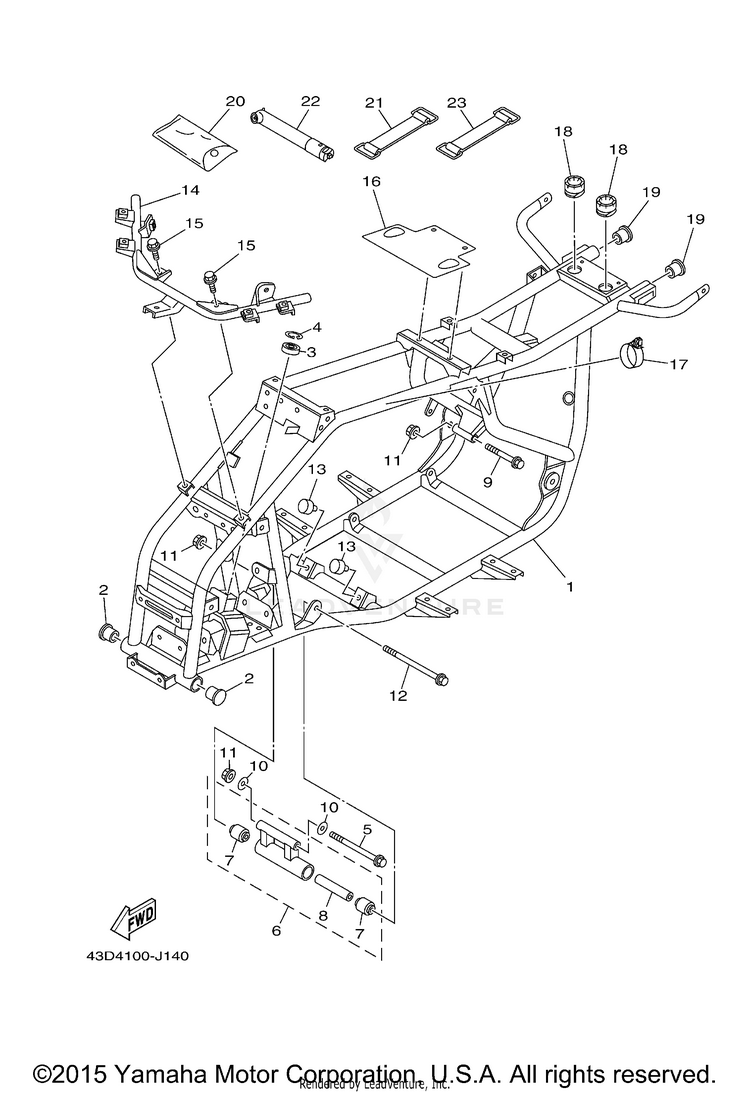

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
143D-F1110-01-00FRAME COMP.$832.99$726.22Usually ships in 7-10 business days
243D-F1279-00-00PLUG, BLIND$7.49$6.74Usually ships in 7-10 business days
343D-F11C1-00-00BEARING$24.99$20.49Usually ships in 7-10 business days
443D-F11C2-00-00CLIP$2.30$2.07Usually ships in 7-10 business days
590105-10300-00

(replaces part #
43D-E2623-00-00)

BOLT, FLANGE$13.49$10.522 In-Stock
643D-F1410-00-00ENGINE BRACKET COMP.$81.99$63.95Usually ships in 7-10 business days
743D-F11C3-00-00BUSH$10.99$9.01Usually ships in 7-10 business days
843D-F1459-00-00SPACER$7.49$6.74Usually ships in 7-10 business days
943D-F1632-00-00BOLT 2$10.49$8.60Usually ships in 7-10 business days
1043D-F1549-00-00WASHER, FENDER MOLD$0.75$0.68Usually ships in 7-10 business days
1143D-F1494-00-00NUT$4.70$4.23Usually ships in 7-10 business days
1243D-E3573-00-00BOLT 1$13.99$11.47Usually ships in 7-10 business days
1343D-F112C-00-00DAMPER 2$4.10$3.693 In-Stock
1443D-F1513-00-00STAY, FENDER 1$68.99$53.81Usually ships in 7-10 business days
1595817-08012-00

(replaces part #
95827-08012-00)

BOLT, FLANGE$5.49$4.2810+ In-Stock
1643D-F1471-00-00PROTECTOR, ENGINE$7.99$7.19Usually ships in 7-10 business days
1743D-F1823-00-00CLAMP, HOSE$3.65$3.28Usually ships in 7-10 business days
1843D-F113B-00-00DAMPER$8.49$7.64Usually ships in 7-10 business days
1943D-F1289-00-00PLUG, BLIND$3.80$3.42Usually ships in 7-10 business days
2043D-F8100-00-00TOOL KIT$21.99$18.03Usually ships in 7-10 business days
2143D-F4399-00-00BAND 2$9.49$8.54Usually ships in 7-10 business days
2243D-F811A-01-00GAUGE, AIR$33.99$27.87Usually ships in 7-10 business days
2343D-F4398-00-00BAND 1$14.49$11.88Usually ships in 7-10 business days
