2011 Yamaha Stratoliner Deluxe XV1900 Steering Handle Cable OEM Parts Diagram

Submodel STRATOLINER DELUXE - XV19CTFACB - 2011

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

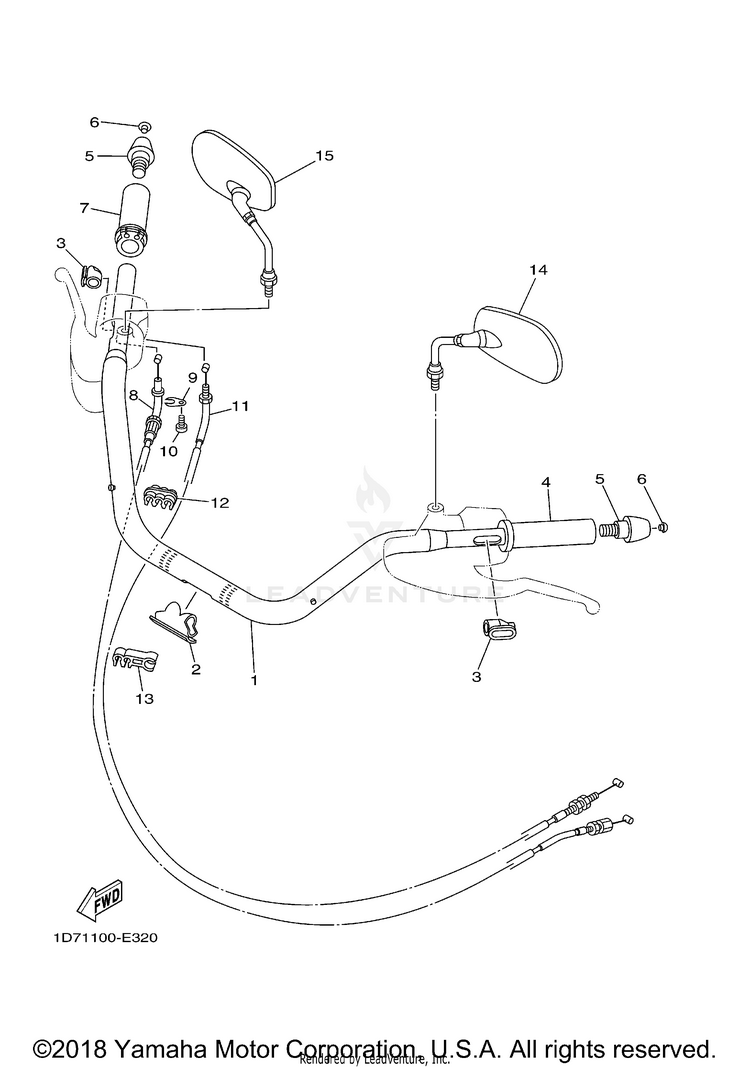

STEERING HANDLE CABLE

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
11D7-26111-00-00HANDLEBAR$299.99$233.99Usually ships in 7-10 business days
21D7-26288-00-00GROMMET, CABLE$11.49$9.42Usually ships in 7-10 business days
31D7-82595-00-00GROMMET$16.49$13.52Usually ships in 7-10 business days
44NK-26241-01-00

(replaces part #
4NK-26241-00-00)

GRIP LH$41.99$34.43Usually ships in 7-10 business days
51D7-26246-00-00END, GRIP$84.99$66.29Usually ships in 7-10 business days
690338-10164-00PLUG$10.49$8.604 In-Stock
74XY-26240-00-00GRIP ASSY$99.99$77.99Usually ships in 7-10 business days
81D7-26311-00-00CABLE, THROTTLE 1$29.99$24.59Usually ships in 7-10 business days
95H0-26393-00-00HOLDER$8.49$7.64Usually ships in 7-10 business days
1098507-05008-00SCREW, PAN HEAD$3.85$3.3110+ In-Stock
111D7-26312-01-00

(replaces part #
1D7-26312-00-00)

CABLE, THROTTLE 2$28.99$23.77Usually ships in 7-10 business days
1290468-07179-00CLIP$10.49$8.604 In-Stock
1390464-11006-00CLAMP$3.10$2.79Usually ships in 7-10 business days
141D7-26280-00-00REAR VIEW MIRROR ASSY (LEFT)$138.99$108.41Usually ships in 7-10 business days
151D7-26290-00-00REAR VIEW MIRROR ASSY (RIGHT)$128.99$100.61Usually ships in 7-10 business days
